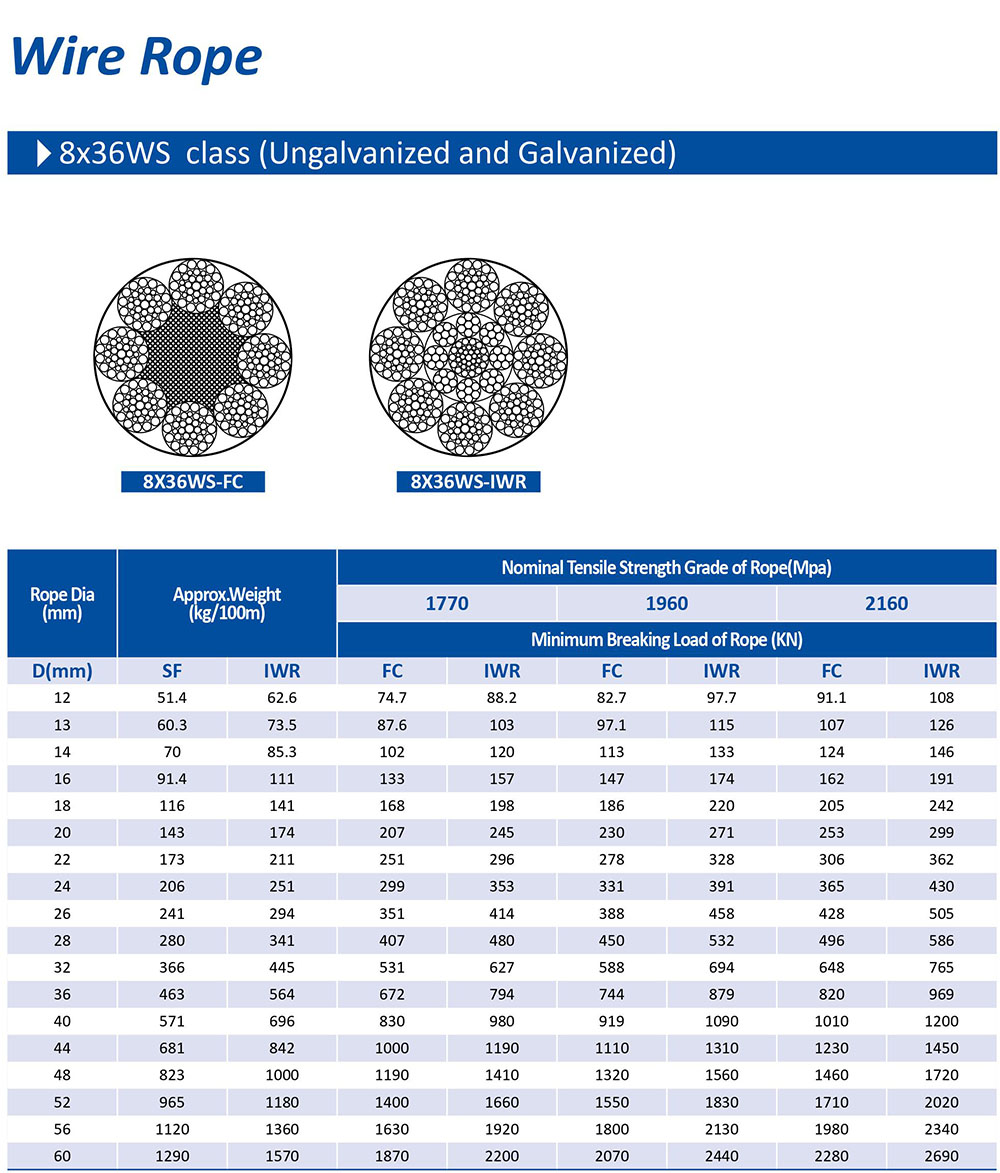

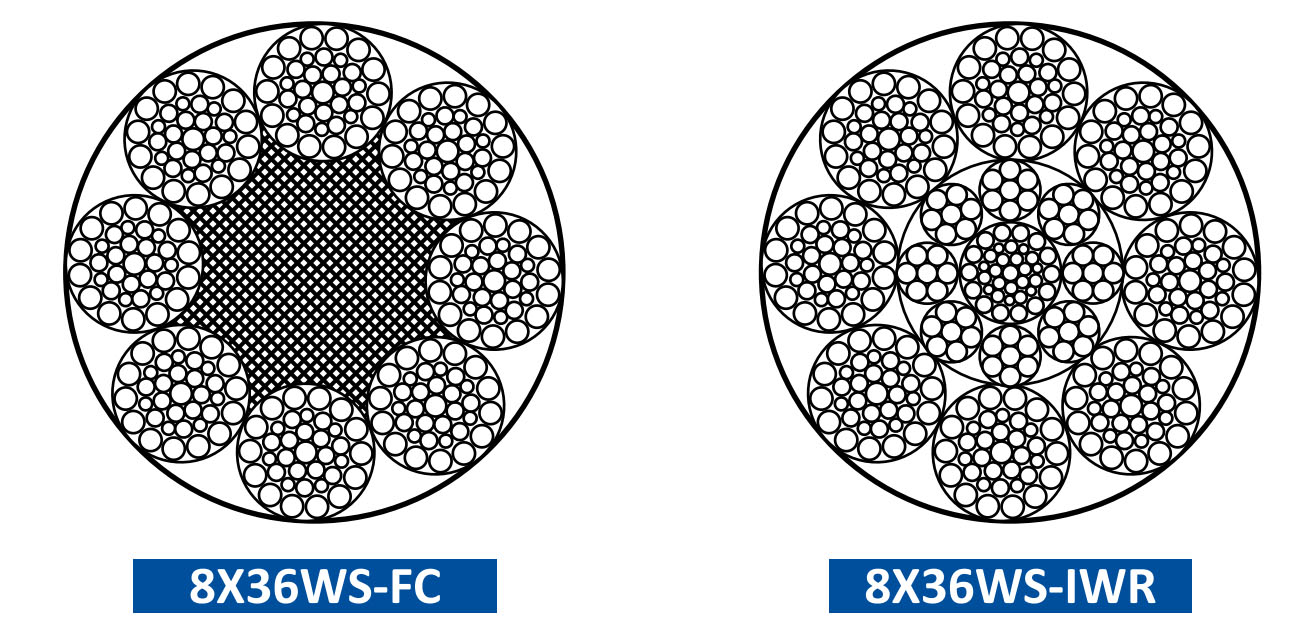

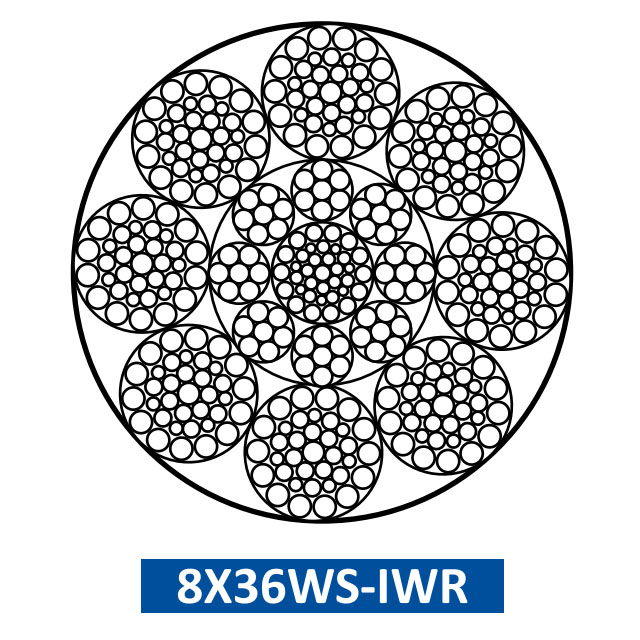

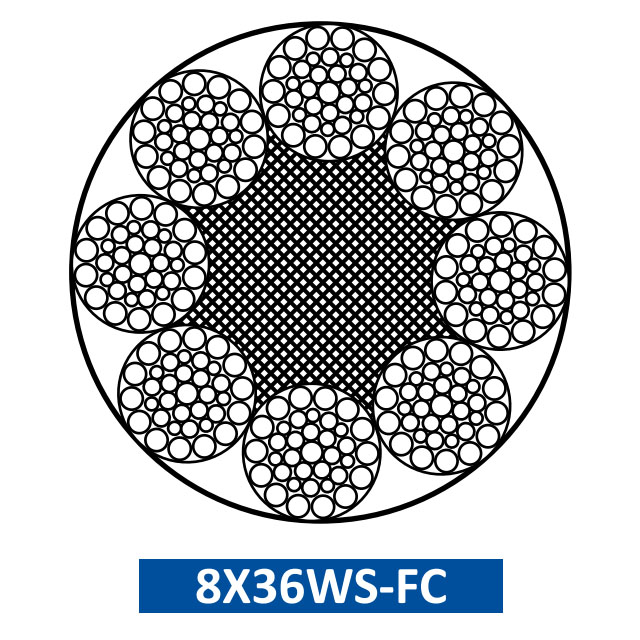

8x36WS class Ungalvanized and Galvanized
- Product Description
| Rope Dia (mm) |
Approx.Weight (kg/100m) |
Nominal Tensile Strength Grade of Rope(Mpa) | ||||||
| 1770 | 1960 | 2160 | ||||||
| Minimum Breaking Load of Rope (KN) | ||||||||
| D(mm) | SF | IWR | FC | IWR | FC | IWR | FC | IWR |
| 12 | 51.4 | 62.6 | 74.7 | 88.2 | 82.7 | 97.7 | 91.1 | 108 |
| 13 | 60.3 | 73.5 | 87.6 | 103 | 97.1 | 115 | 107 | 126 |
| 14 | 70 | 85.3 | 102 | 120 | 113 | 133 | 124 | 146 |
| 16 | 91.4 | 111 | 133 | 157 | 147 | 174 | 162 | 191 |
| 18 | 116 | 141 | 168 | 198 | 186 | 220 | 205 | 242 |
| 20 | 143 | 174 | 207 | 245 | 230 | 271 | 253 | 299 |
| 22 | 173 | 211 | 251 | 296 | 278 | 328 | 306 | 362 |
| 24 | 206 | 251 | 299 | 353 | 331 | 391 | 365 | 430 |
| 26 | 241 | 294 | 351 | 414 | 388 | 458 | 428 | 505 |
| 28 | 280 | 341 | 407 | 480 | 450 | 532 | 496 | 586 |
| 32 | 366 | 445 | 531 | 627 | 588 | 694 | 648 | 765 |
| 36 | 463 | 564 | 672 | 794 | 744 | 879 | 820 | 969 |
| 40 | 571 | 696 | 830 | 980 | 919 | 1090 | 1010 | 1200 |
| 44 | 681 | 842 | 1000 | 1190 | 1110 | 1310 | 1230 | 1450 |
| 48 | 823 | 1000 | 1190 | 1410 | 1320 | 1560 | 1460 | 1720 |
| 52 | 965 | 1180 | 1400 | 1660 | 1550 | 1830 | 1710 | 2020 |
| 56 | 1120 | 1360 | 1630 | 1920 | 1800 | 2130 | 1980 | 2340 |
| 60 | 1290 | 1570 | 1870 | 2200 | 2070 | 2440 | 2280 | 2690 |
