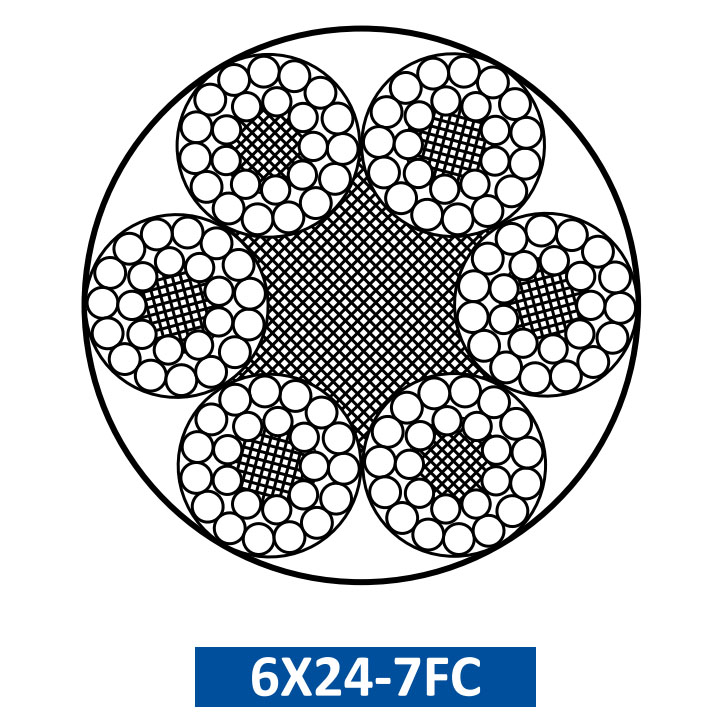

6x24MFC-7FC Ungalvanized and Galvanized
- Product Description
| Rope Dia (mm) | Approx.Weight (kg/100m) | Nominal Tensile Strength Grade of Rope(Mpa) | |
| 1570 | 1770 | ||
| Minimum Breaking Load of Rope (KN) | |||
| D(mm) | FC | FC | FC |
| 8 | 20.4 | 28.1 | 31.7 |
| 9 | 25.8 | 35.6 | 40.1 |
| 10 | 31.8 | 44.0 | 49.6 |
| 11 | 38.5 | 53.2 | 60.0 |
| 12 | 45.8 | 63.3 | 71.4 |
| 13 | 53.7 | 74.3 | 83.8 |
| 14 | 62.3 | 86.2 | 97.1 |
| 15 | 71.6 | 98.9 | 112 |
| 16 | 81.4 | 113 | 127 |
| 18 | 103 | 142 | 161 |
| 20 | 127 | 176 | 198 |
| 22 | 154 | 213 | 240 |
| 24 | 183 | 253 | 285 |
| 26 | 215 | 297 | 335 |
| 28 | 249 | 345 | 389 |
| 30 | 286 | 396 | 446 |
| 32 | 326 | 450 | 507 |
| 36 | 412 | 570 | 642 |
| 40 | 509 | 703 | 793 |
| 44 | 616 | 851 | 959 |
