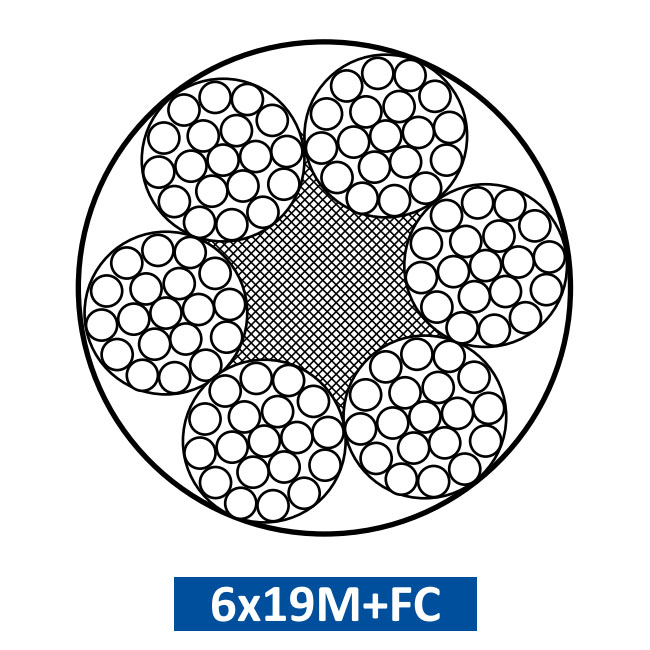

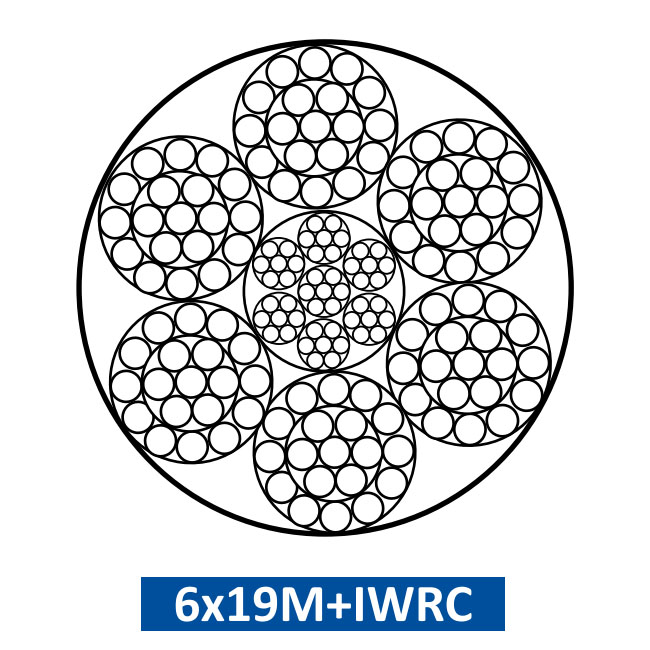

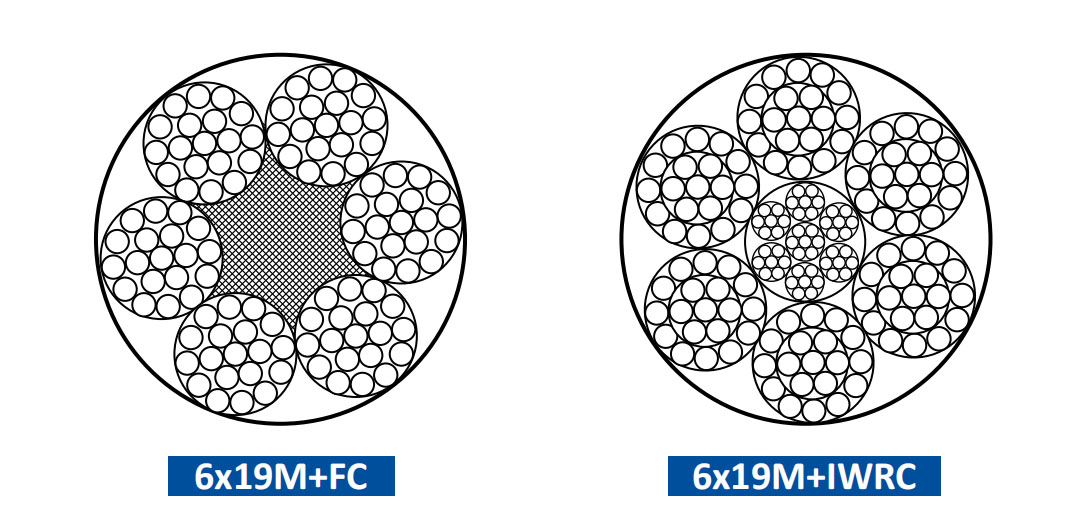

6x19(b)class Ungalvanized and Galvanized

Rope Dia (mm)	Approx. Weight (kg/100m)		Nominal Tensile Strength Grade of Rope(Mpa)
			1770		1960
			Minimum Breaking Load of Rope (KN)
D(mm)	NF	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS
3	3.16	3.6	4.89	5.29	5.42	5.86
4	5.62	6.4	8.69	9.4	9.63	9.93
5	8.78	10	13.6	14.7	15	16.3
6	12.6	14.4	19.6	21.2	21.7	23.4
7	17.2	19.6	26.6	28.8	29.5	31.9
8	22.5	25.6	34.8	37.6	38.5	41.6
9	28.4	32.4	44	47.6	48.7	52.7
10	35.1	40	54.4	58.8	60.2	65.1
11	42.5	48.4	65.8	71.1	72.8	78.7
12	50.5	57.6	78.2	84.6	86.6	93.7
13	59.3	67.6	91.8	99.3	102	110
14	68.8	78.4	107	115	118	128
16	89.9	102	139	150	154	167
18	114	130	176	190	195	211
20	140	160	217	235	241	260
22	170	194	263	284	291	315
24	202	230	313	338	347	375
26	237	270	367	397	407	440
28	275	314	426	461	472	510
32	359	410	557	602	616	666
36	455	518	704	762	780	843
40	562	640	869	940	963	1041
44	680	774	1050	1140	1160	1260
48	809	922	1250	1350	1390	1500
52	949	1080	1470	1590	1630	1760
44	680	774	1050	1140	1160	1260
48	809	922	1250	1350	1390	1500
52	949	1080	1470	1590	1630	1760
