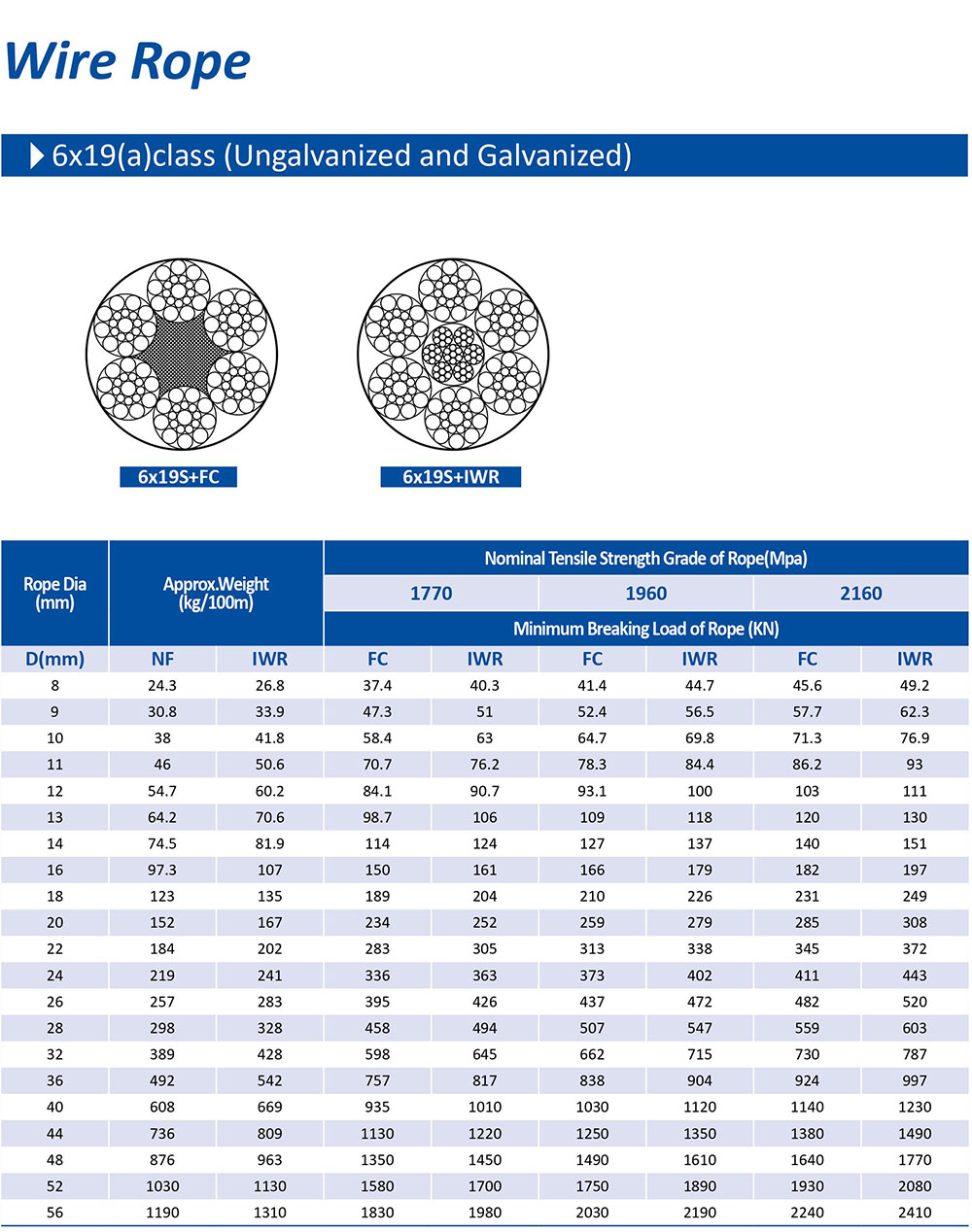

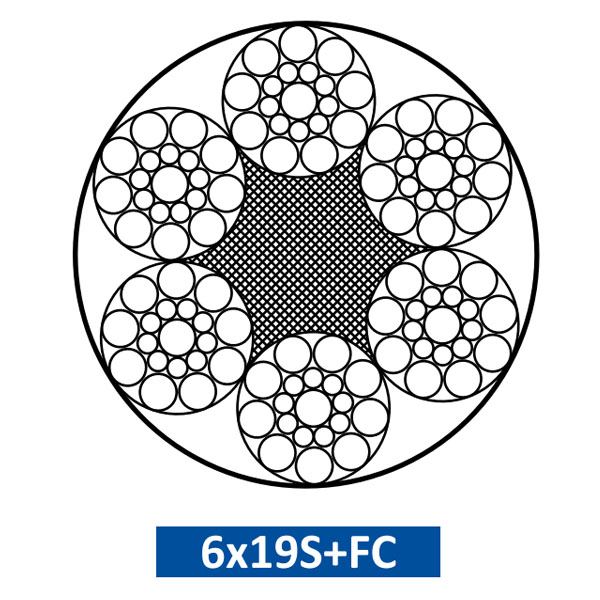

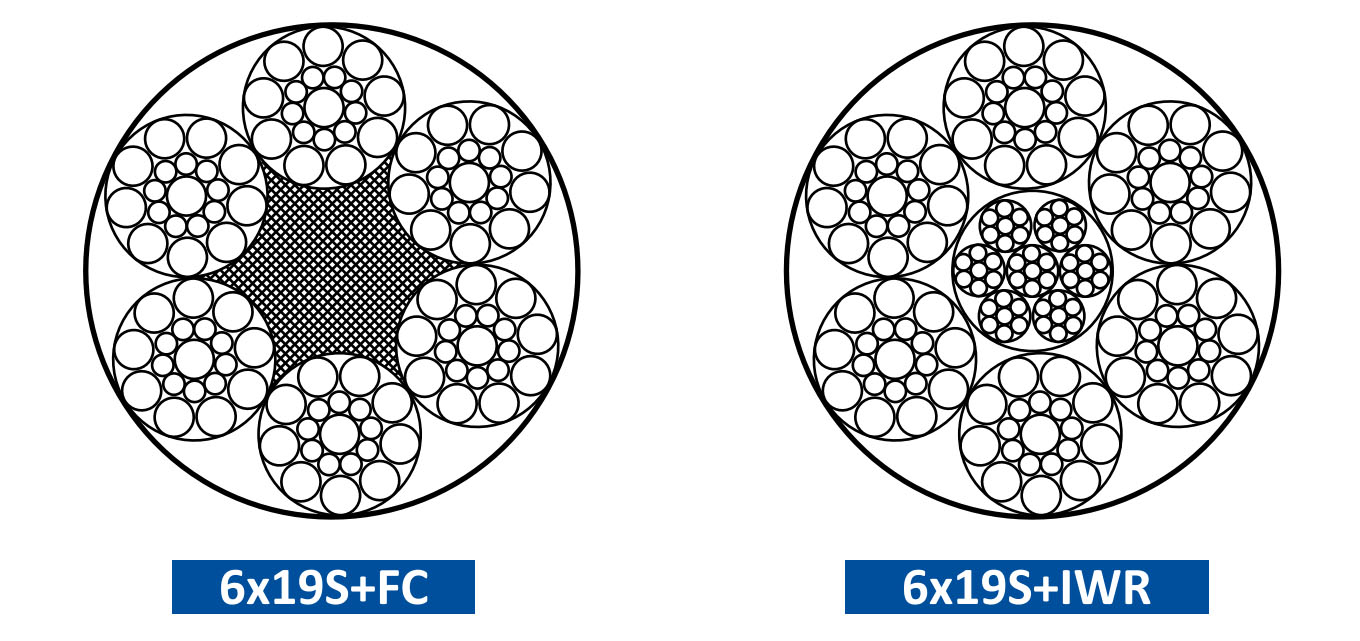

6x19(a)class Ungalvanized and Galvanized

Rope Dia (mm)	Approx.Weight (kg/100m)		Nominal Tensile Strength Grade of Rope(Mpa)
			1770		1960		2160
			Minimum Breaking Load of Rope (KN)
D(mm)	NF	IWR	FC	IWR	FC	IWR	FC	IWR
8	24.3	26.8	37.4	40.3	41.4	44.7	45.6	49.2
9	30.8	33.9	47.3	51	52.4	56.5	57.7	62.3
10	38	41.8	58.4	63	64.7	69.8	71.3	76.9
11	46	50.6	70.7	76.2	78.3	84.4	86.2	93
12	54.7	60.2	84.1	90.7	93.1	100	103	111
13	64.2	70.6	98.7	106	109	118	120	130
14	74.5	81.9	114	124	127	137	140	151
16	97.3	107	150	161	166	179	182	197
18	123	135	189	204	210	226	231	249
20	152	167	234	252	259	279	285	308
22	184	202	283	305	313	338	345	372
24	219	241	336	363	373	402	411	443
26	257	283	395	426	437	472	482	520
28	298	328	458	494	507	547	559	603
32	389	428	598	645	662	715	730	787
36	492	542	757	817	838	904	924	997
40	608	669	935	1010	1030	1120	1140	1230
44	736	809	1130	1220	1250	1350	1380	1490
48	876	963	1350	1450	1490	1610	1640	1770
52	1030	1130	1580	1700	1750	1890	1930	2080
56	1190	1310	1830	1980	2030	2190	2240	2410
