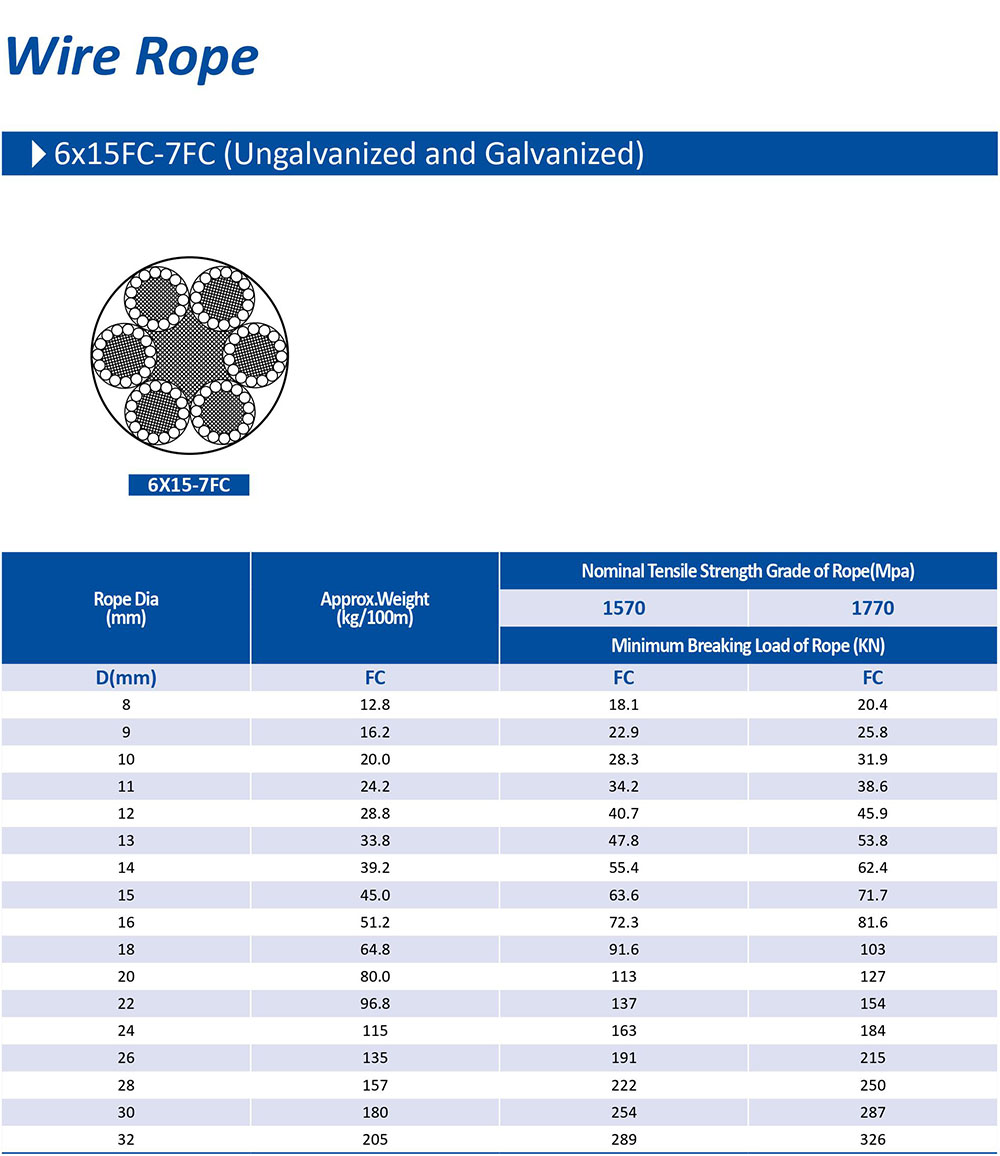

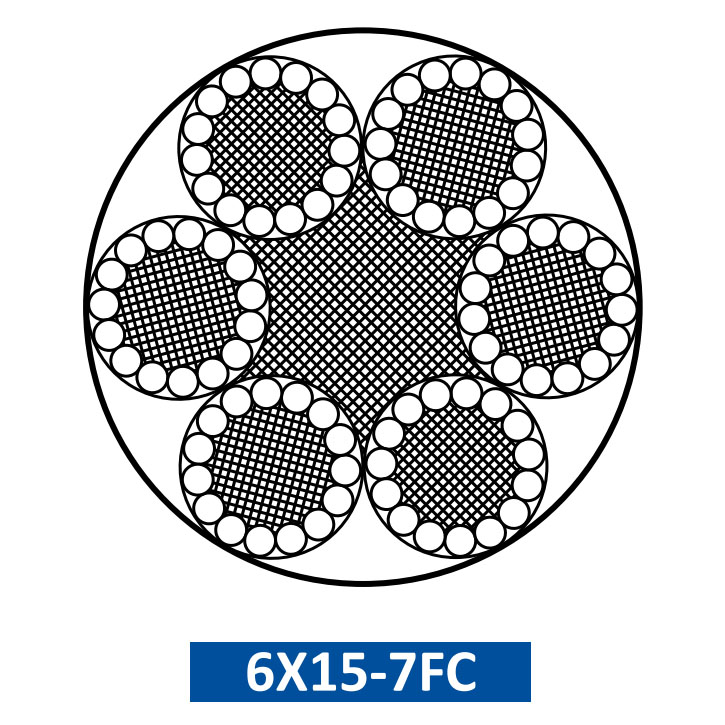

6x15FC-7FC Ungalvanized and Galvanized
- Product Description
| Rope Dia (mm) | Approx.Weight (kg/100m) | Nominal Tensile Strength Grade of Rope(Mpa) | |
| 1570 | 1770 | ||
| Minimum Breaking Load of Rope (KN) | |||
| D(mm) | FC | FC | FC |
| 8 | 12.8 | 18.1 | 20.4 |
| 9 | 16.2 | 22.9 | 25.8 |
| 10 | 20.0 | 28.3 | 31.9 |
| 11 | 24.2 | 34.2 | 38.6 |
| 12 | 28.8 | 40.7 | 45.9 |
| 13 | 33.8 | 47.8 | 53.8 |
| 14 | 39.2 | 55.4 | 62.4 |
| 15 | 45.0 | 63.6 | 71.7 |
| 16 | 51.2 | 72.3 | 81.6 |
| 18 | 64.8 | 91.6 | 103 |
| 20 | 80.0 | 113 | 127 |
| 22 | 96.8 | 137 | 154 |
| 24 | 115 | 163 | 184 |
| 26 | 135 | 191 | 215 |
| 28 | 157 | 222 | 250 |
| 30 | 180 | 254 | 287 |
| 32 | 205 | 289 | 326 |
