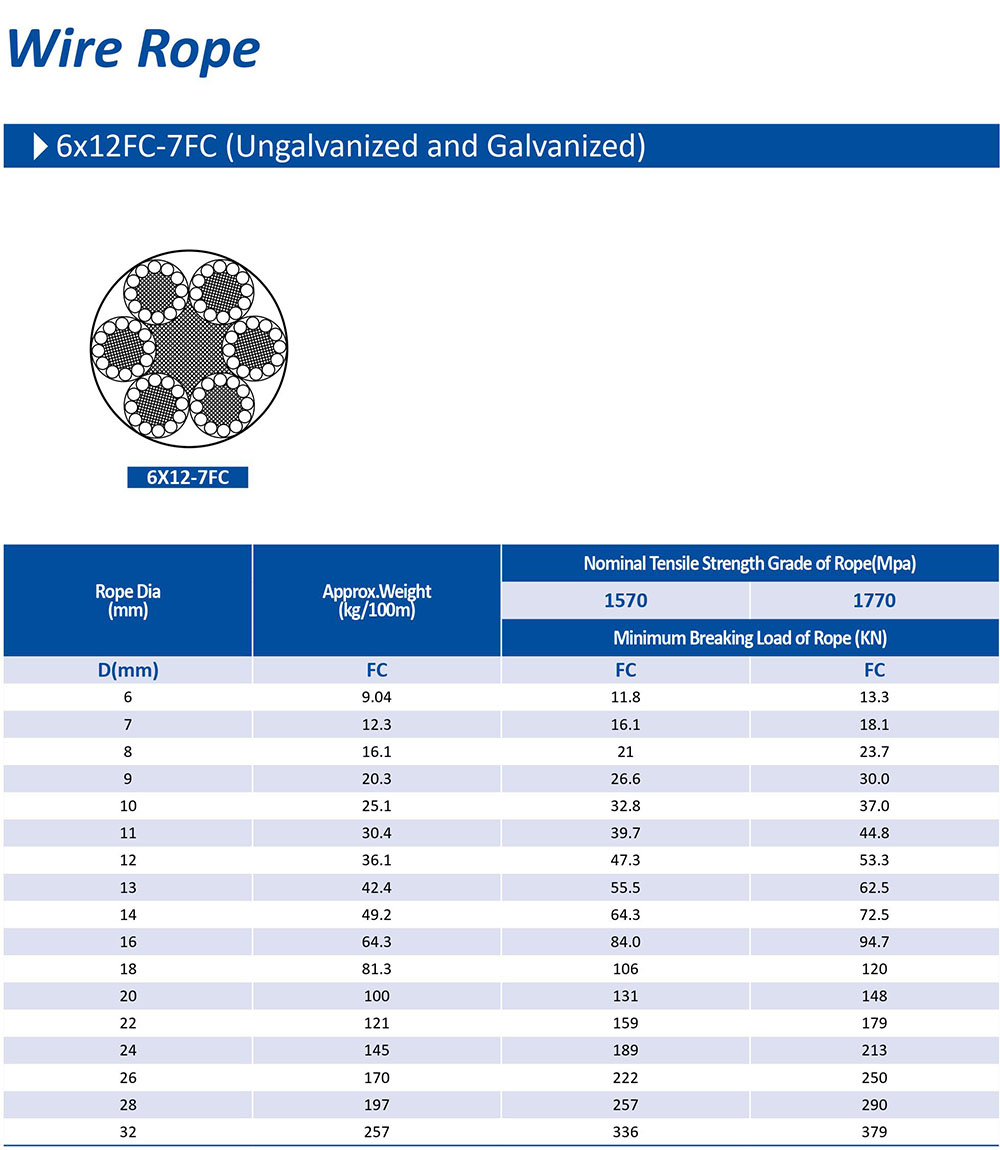

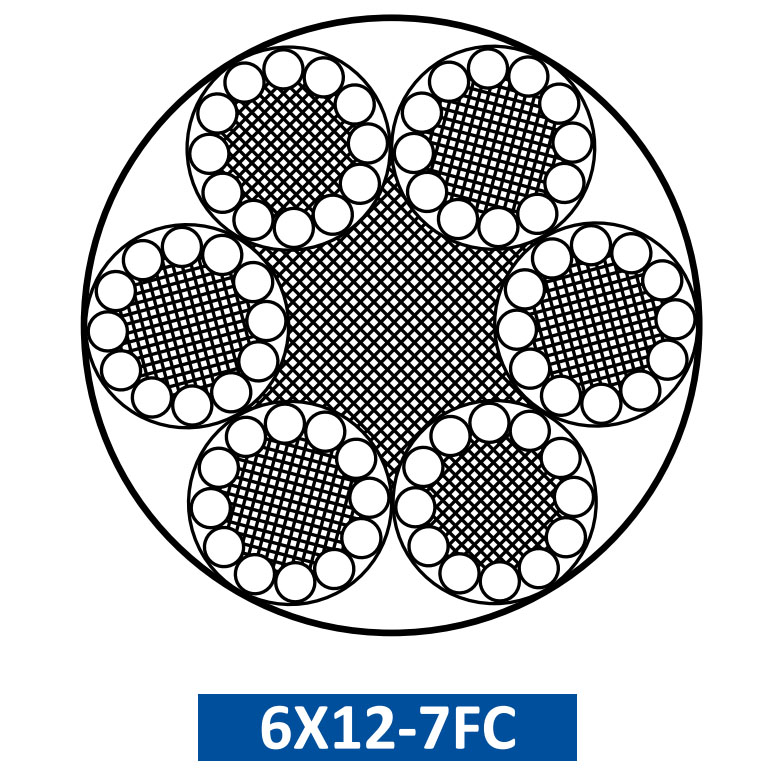

6x12FC-7FC Ungalvanized and Galvanized
- Product Description
| Rope Dia (mm) |
Approx.Weight (kg/100m) |
Nominal Tensile Strength Grade of Rope(Mpa) | |
| 1570 | 1770 | ||
| Minimum Breaking Load of Rope (KN) | |||
| FC | FC | ||
| D(mm) | FC | ||
| 6 | 9.04 | 11.8 | 13.3 |
| 7 | 12.3 | 16.1 | 18.1 |
| 8 | 16.1 | 21 | 23.7 |
| 9 | 20.3 | 26.6 | 30.0 |
| 10 | 25.1 | 32.8 | 37.0 |
| 11 | 30.4 | 39.7 | 44.8 |
| 12 | 36.1 | 47.3 | 53.3 |
| 13 | 42.4 | 55.5 | 62.5 |
| 14 | 49.2 | 64.3 | 72.5 |
| 16 | 64.3 | 84.0 | 94.7 |
| 18 | 81.3 | 106 | 120 |
| 20 | 100 | 131 | 148 |
| 22 | 121 | 159 | 179 |
| 24 | 145 | 189 | 213 |
| 26 | 170 | 222 | 250 |
| 28 | 197 | 257 | 290 |
| 32 | 257 | 336 | 379 |
