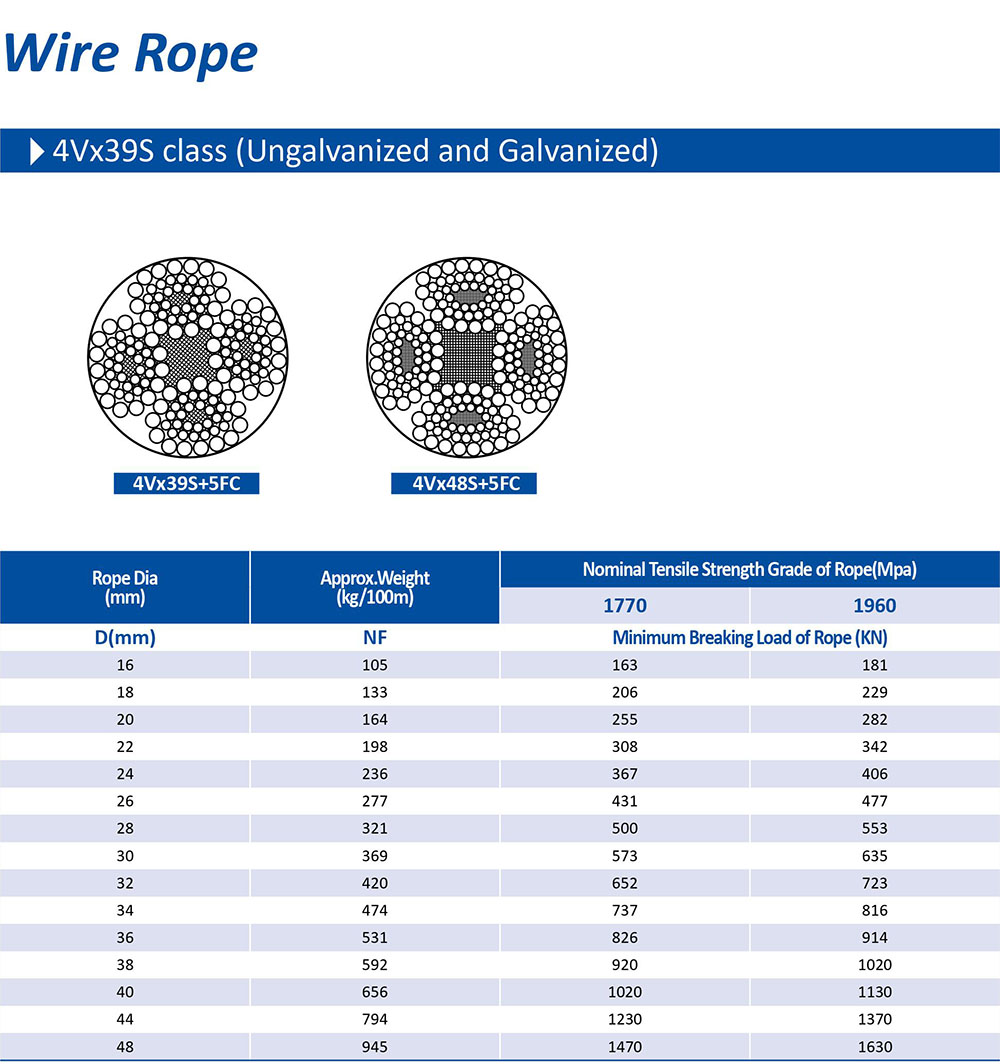

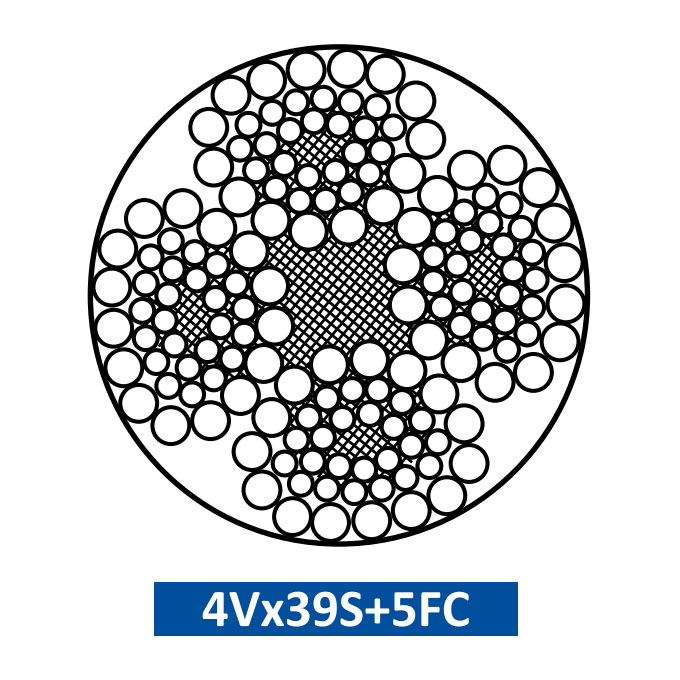

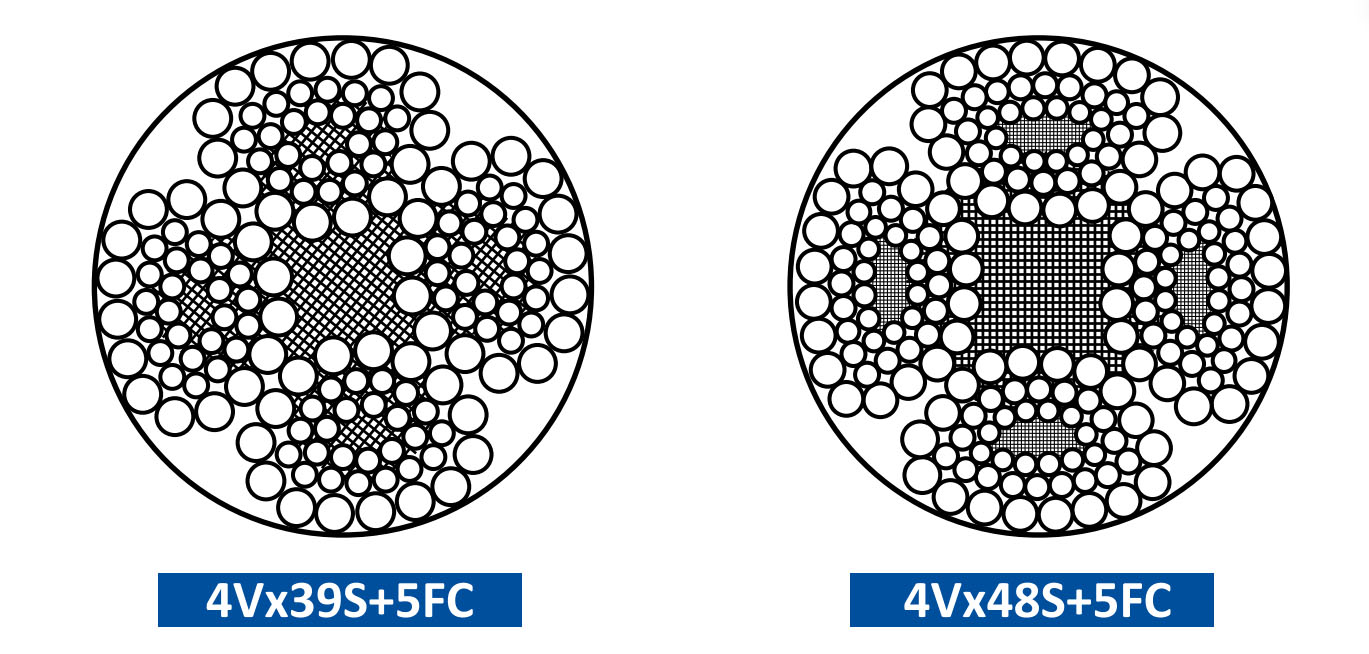

4Vx39S class Ungalvanized and Galvanized
- Product Description
| Rope Dia (mm) |
Approx.Weight (kg/100m) |
Nominal Tensile Strength Grade of Rope (Mpa) | |
| 1770 | 1960 | ||
| D(mm) | NF | Minimum Breaking Load of Rope (KN) | |
| 16 | 105 | 163 | 181 |
| 18 | 133 | 206 | 229 |
| 20 | 164 | 255 | 282 |
| 22 | 198 | 308 | 342 |
| 24 | 236 | 367 | 406 |
| 26 | 277 | 431 | 477 |
| 28 | 321 | 500 | 553 |
| 30 | 369 | 573 | 635 |
| 32 | 420 | 652 | 723 |
| 34 | 474 | 737 | 816 |
| 36 | 531 | 826 | 914 |
| 38 | 592 | 920 | 1020 |
| 40 | 656 | 1020 | 1130 |
| 44 | 794 | 1230 | 1370 |
| 48 | 945 | 1470 | 1630 |
