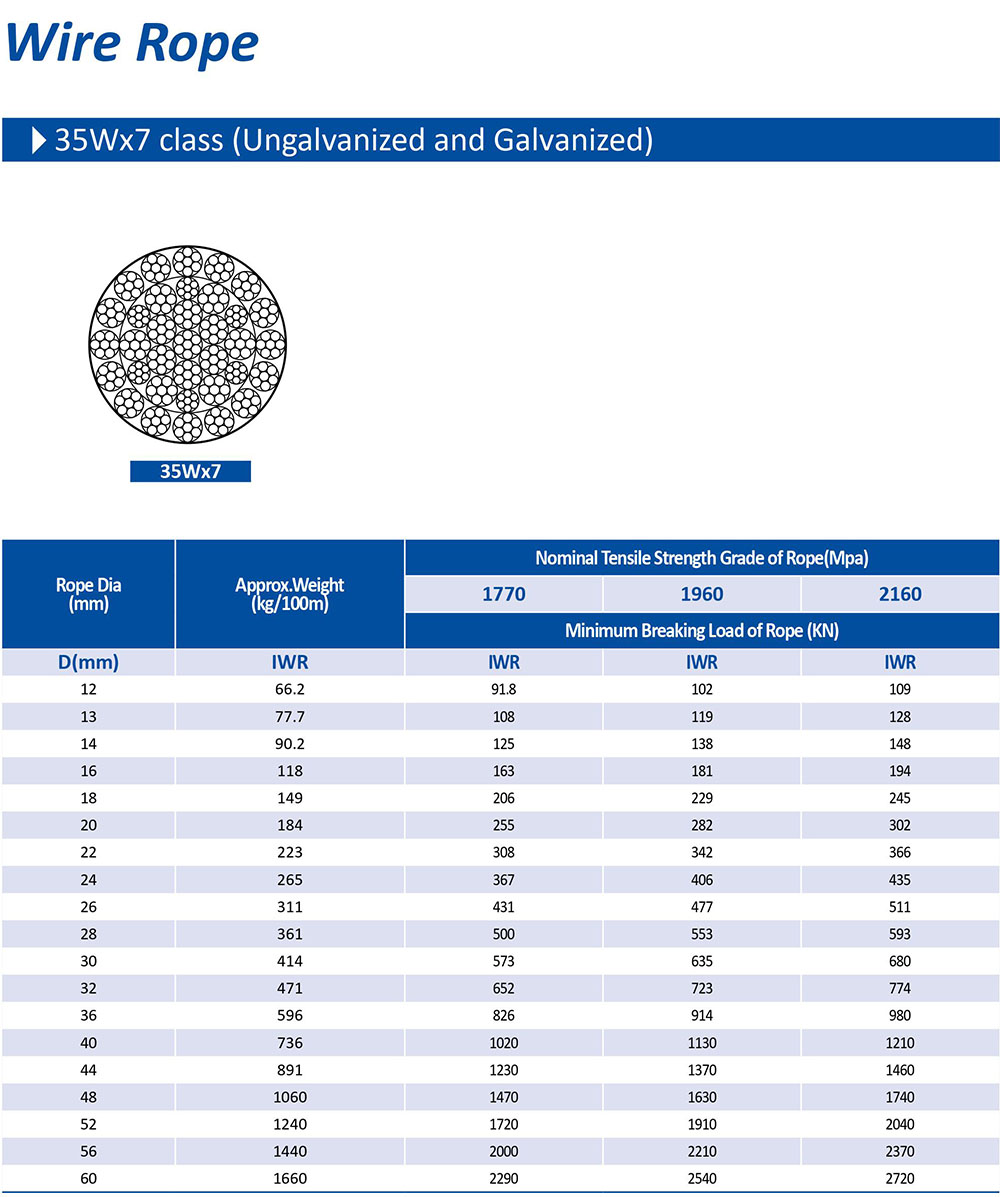

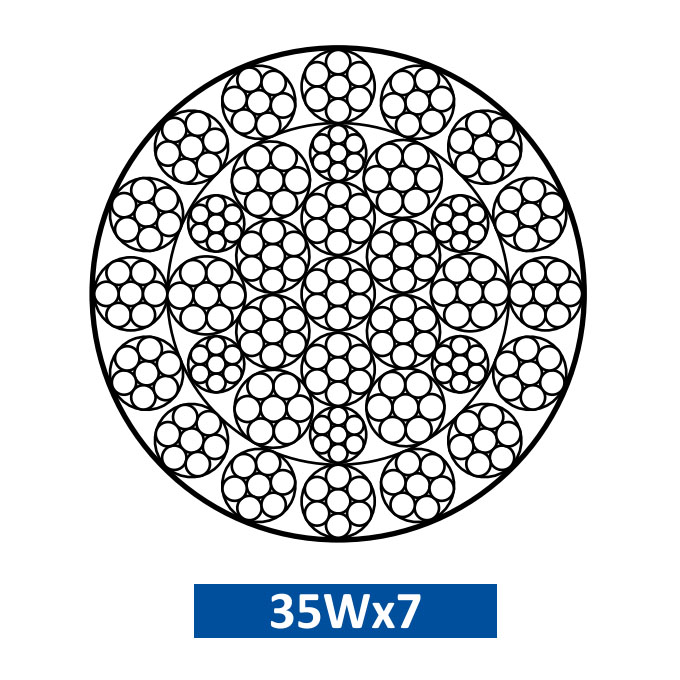

35Wx7 class Ungalvanized and Galvanized
- Product Description
| Rope Dia (mm) |
Approx.Weight (kg/100m) |
Nominal Tensile Strength Grade of Rope (Mpa) | ||
| 1770 | 1960 | 2160 | ||
| Minimum Breaking Load of Rope (KN) | ||||
| D(mm) | IWR | IWR | IWR | IWR |
| 12 | 66.2 | 91.8 | 102 | 109 |
| 13 | 77.7 | 108 | 119 | 128 |
| 14 | 90.2 | 125 | 138 | 148 |
| 16 | 118 | 163 | 181 | 194 |
| 18 | 149 | 206 | 229 | 245 |
| 20 | 184 | 255 | 282 | 302 |
| 22 | 223 | 308 | 342 | 366 |
| 24 | 265 | 367 | 406 | 435 |
| 26 | 311 | 431 | 477 | 511 |
| 28 | 361 | 500 | 553 | 593 |
| 30 | 414 | 573 | 635 | 680 |
| 32 | 471 | 652 | 723 | 774 |
| 36 | 596 | 826 | 914 | 980 |
| 40 | 736 | 1020 | 1130 | 1210 |
| 44 | 891 | 1230 | 1370 | 1460 |
| 48 | 1060 | 1470 | 1630 | 1740 |
| 52 | 1240 | 1720 | 1910 | 2040 |
| 56 | 1440 | 2000 | 2210 | 2370 |
| 60 | 1660 | 2290 | 2540 | 2720 |
