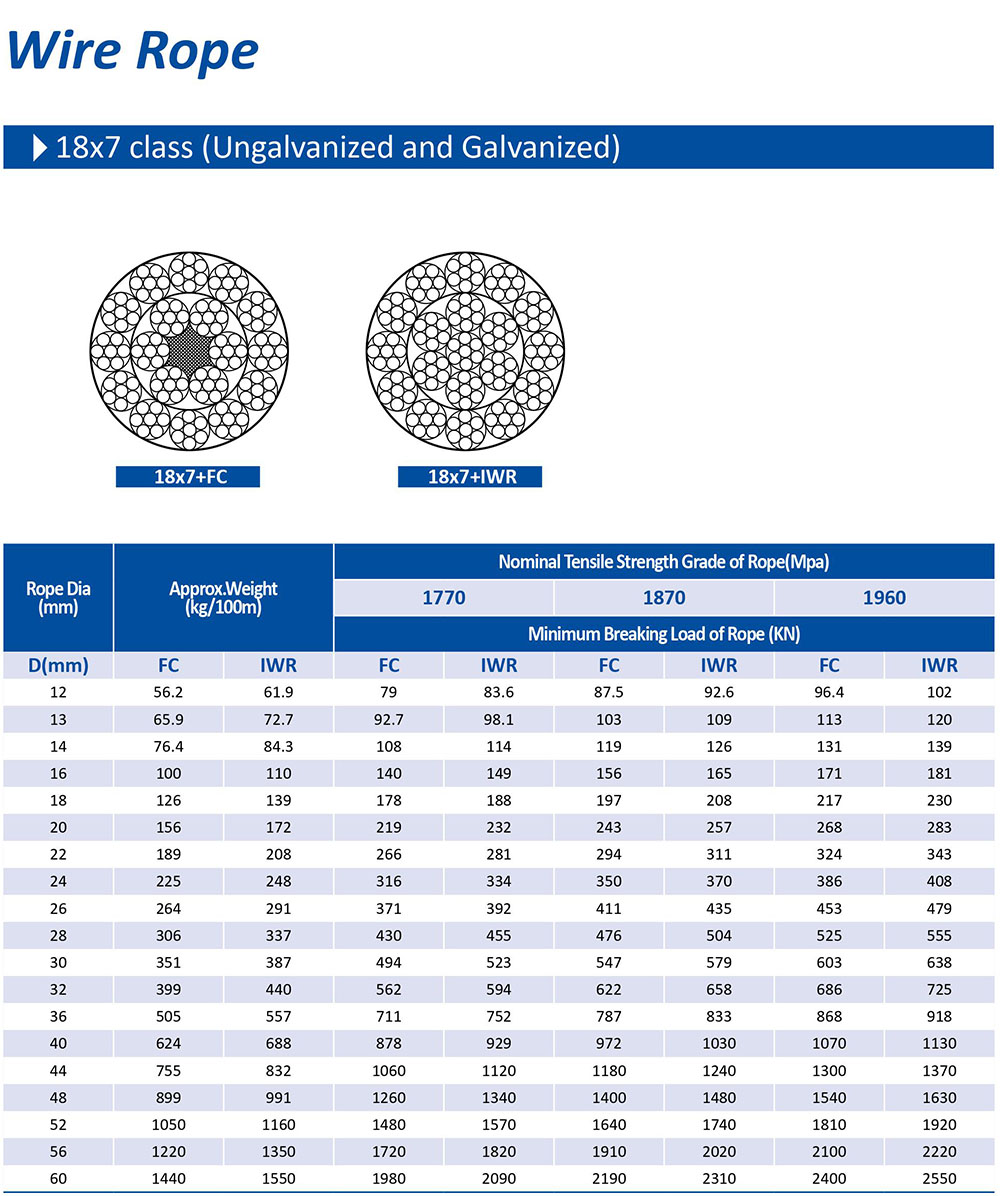

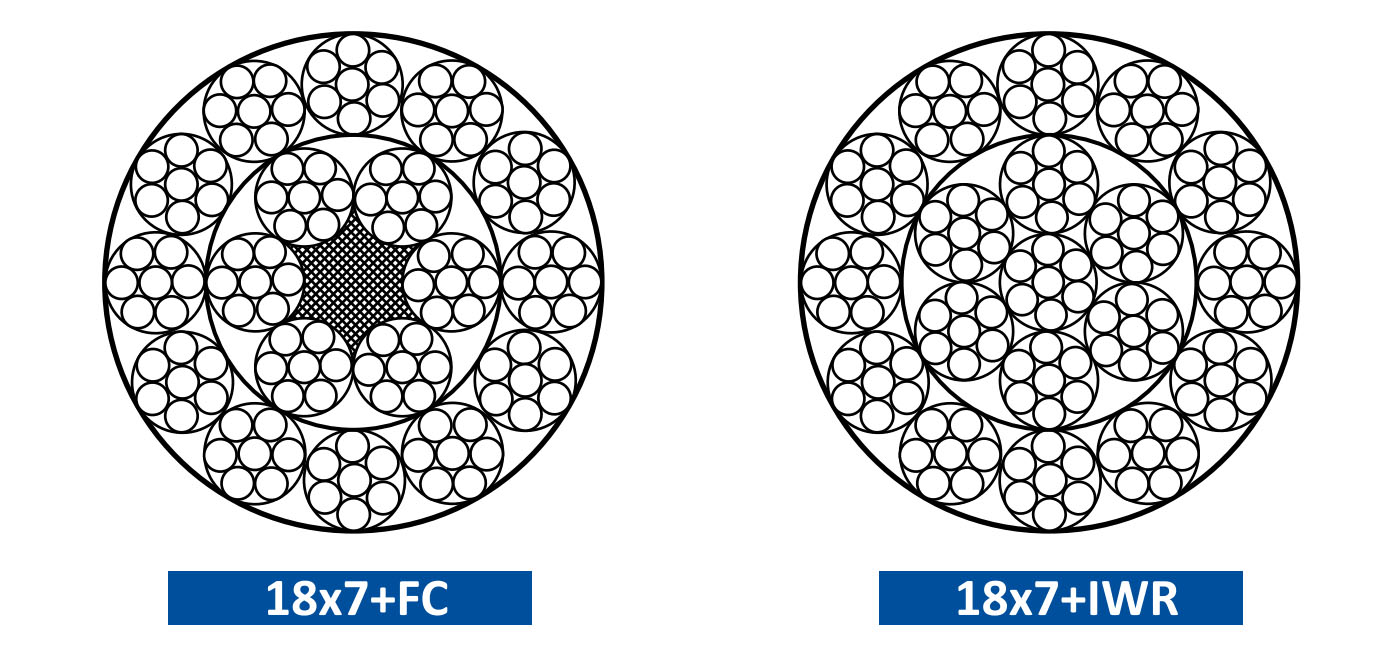

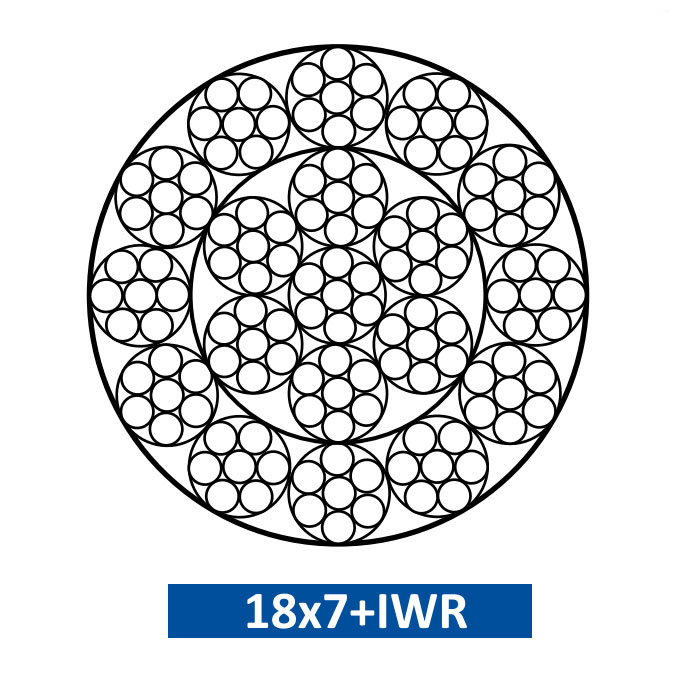

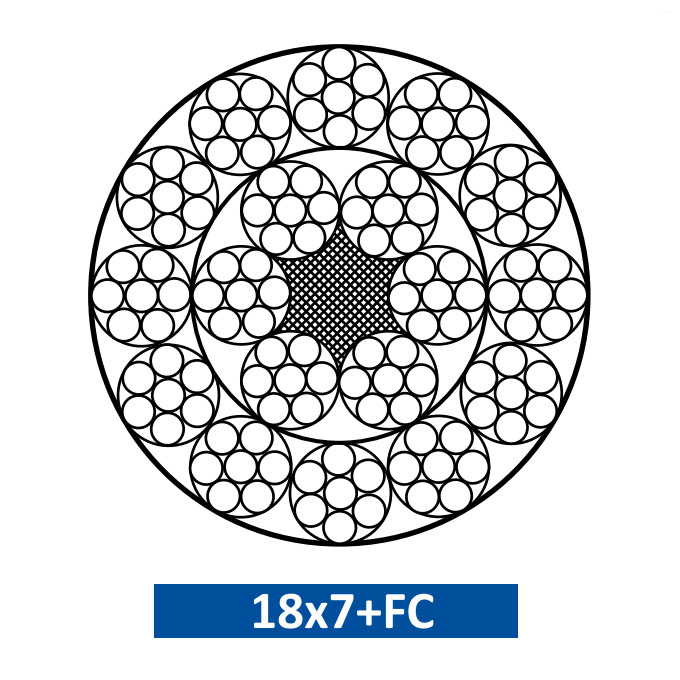

18x7 class Ungalvanized and Galvanized
- Product Description
| Rope Dia (mm) |
Approx.Weight (kg/100m) |
Nominal Tensile Strength Grade of Rope (Mpa) | ||||||
| 1770 | 1870 | 1960 | ||||||
| Minimum Breaking Load of Rope (KN) | ||||||||
| D(mm) | FC | IWR | FC | IWR | FC | IWR | FC | IWR |
| 12 | 56.2 | 61.9 | 79 | 83.6 | 87.5 | 92.6 | 96.4 | 102 |
| 13 | 65.9 | 72.7 | 92.7 | 98.1 | 103 | 109 | 113 | 120 |
| 14 | 76.4 | 84.3 | 108 | 114 | 119 | 126 | 131 | 139 |
| 16 | 100 | 110 | 140 | 149 | 156 | 165 | 171 | 181 |
| 18 | 126 | 139 | 178 | 188 | 197 | 208 | 217 | 230 |
| 20 | 156 | 172 | 219 | 232 | 243 | 257 | 268 | 283 |
| 22 | 189 | 208 | 266 | 281 | 294 | 311 | 324 | 343 |
| 24 | 225 | 248 | 316 | 334 | 350 | 370 | 386 | 408 |
| 26 | 264 | 291 | 371 | 392 | 411 | 435 | 453 | 479 |
| 28 | 306 | 337 | 430 | 455 | 476 | 504 | 525 | 555 |
| 30 | 351 | 387 | 494 | 523 | 547 | 579 | 603 | 638 |
| 32 | 399 | 440 | 562 | 594 | 622 | 658 | 686 | 725 |
| 36 | 505 | 557 | 711 | 752 | 787 | 833 | 868 | 918 |
| 40 | 624 | 688 | 878 | 929 | 972 | 1030 | 1070 | 1130 |
| 44 | 755 | 832 | 1060 | 1120 | 1180 | 1240 | 1300 | 1370 |
| 48 | 899 | 991 | 1260 | 1340 | 1400 | 1480 | 1540 | 1630 |
| 52 | 1050 | 1160 | 1480 | 1570 | 1640 | 1740 | 1810 | 1920 |
| 56 | 1220 | 1350 | 1720 | 1820 | 1910 | 2020 | 2100 | 2220 |
| 60 | 1440 | 1550 | 1980 | 2090 | 2190 | 2310 | 2400 | 2550 |
