Turnbuckles

Product Turnbuckles
Size 1/4'',5/16'',3/8'',1/2'',5/8'',3/4'',7/8'',1'',1-1/4'',1-1/2'',1-3/4'',2'',2-1/2'',2-3/4''
Finish H.D.G., Galv.

  • Product Description

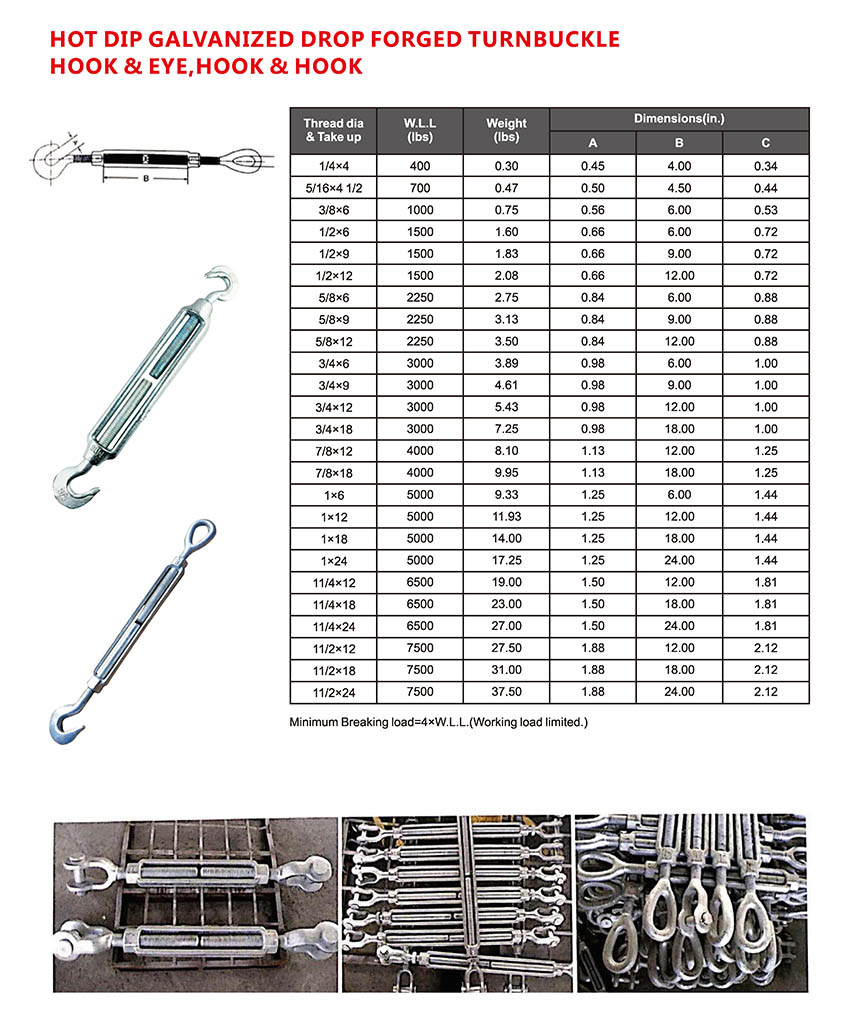

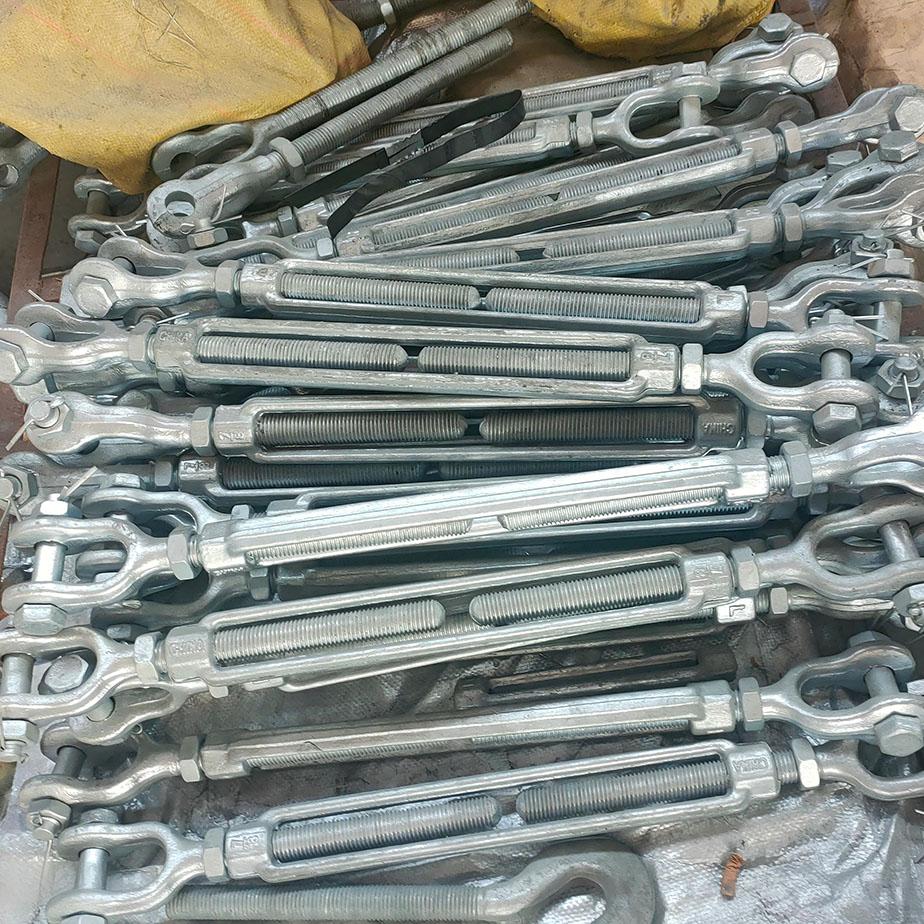

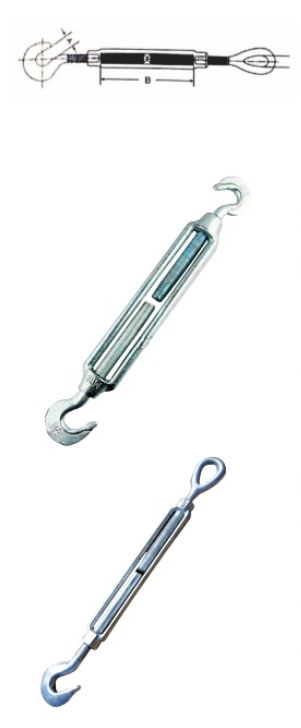

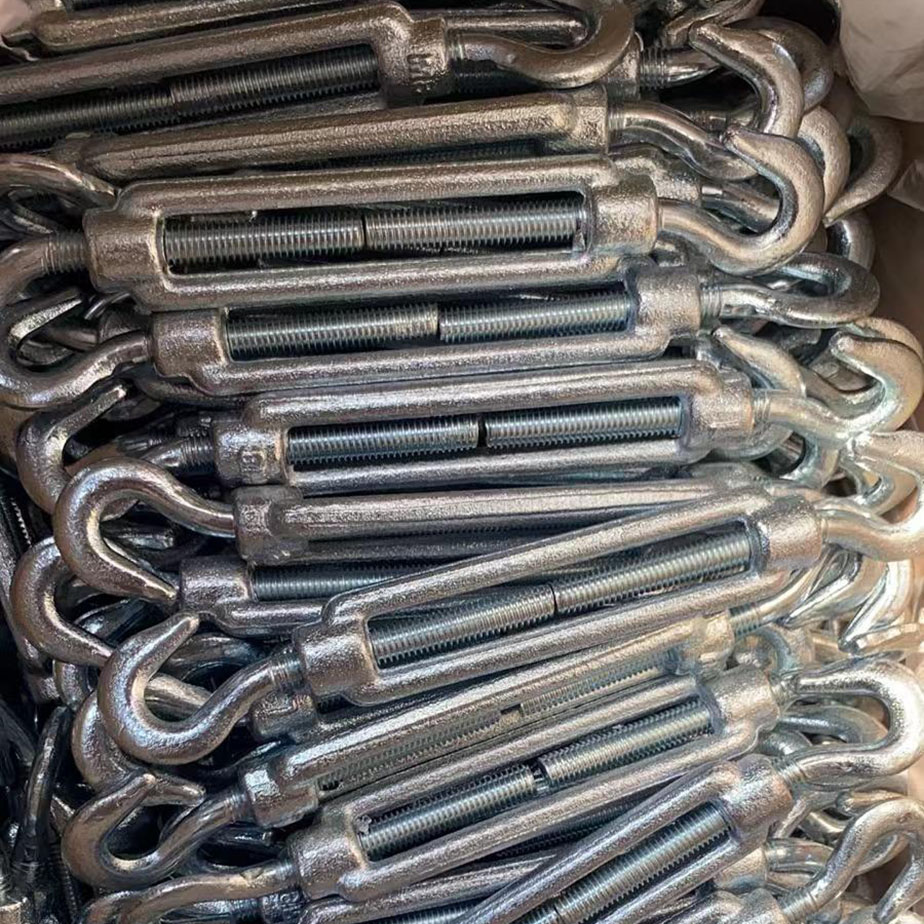

HOT DIP GALVANIZED DROP FORGED TURNBUCKLE
HOOK & EYE,HOOK & HOOK
Thread dia
& Take up		 W.L.L
(lbs)		 Weight
(lbs)		 Dimensions (in.)
A B C
1/4×4 400 0.30 0.45 4.00 0.34
5/16×4 1/2 700 0.47 0.50 4.50 0.44
3/8×6 1000 0.75 0.56 6.00 0.53
1/2×6 1500 1.60 0.66 6.00 0.72
1/2×9 1500 1.83 0.66 9.00 0.72
1/2×12 1500 2.08 0.66 12.00 0.72
5/8×6 2250 2.75 0.84 6.00 0.88
5/8×9 2250 3.13 0.84 9.00 0.88
5/8×12 2250 3.50 0.84 12.00 0.88
3/4×6 3000 3.89 0.98 6.00 1.00
3/4×9 3000 4.61 0.98 9.00 1.00
3/4×12 3000 5.43 0.98 12.00 1.00
3/4×18 3000 7.25 0.98 18.00 1.00
7/8×12 4000 8.10 1.13 12.00 1.25
7/8×18 4000 9.95 1.13 18.00 1.25
1×6 5000 9.33 1.25 6.00 1.44
1×12 5000 11.93 1.25 12.00 1.44
1×18 5000 14.00 1.25 18.00 1.44
1×24 5000 17.25 1.25 24.00 1.44
1 1/4×12 6500 19.00 1.50 12.00 1.81
1 1/4×18 6500 23.00 1.50 18.00 1.81
1 1/4×24 6500 27.00 1.50 24.00 1.81
1 1/2×12 7500 27.50 1.88 12.00 2.12
1 1/2×18 7500 31.00 1.88 18.00 2.12
1 1/2×24 7500 37.50 1.88 24.00 2.12

Minimum Breaking load=4xW.L.L.(Working load limited.)

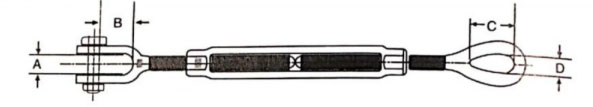

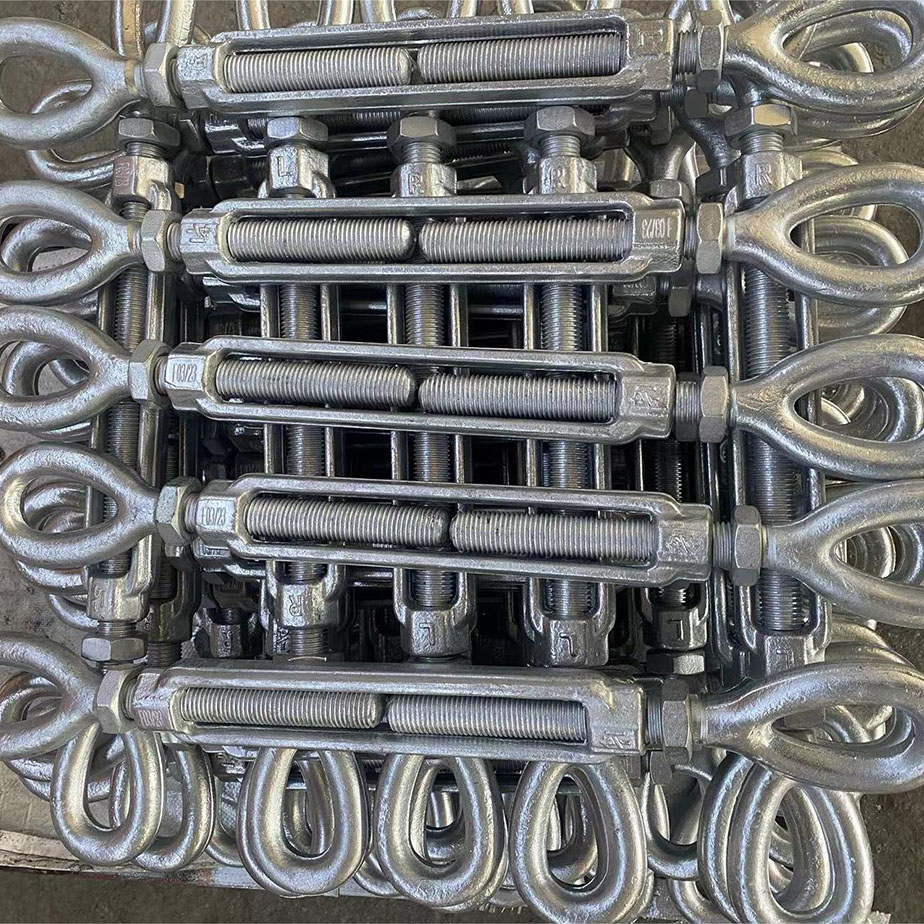

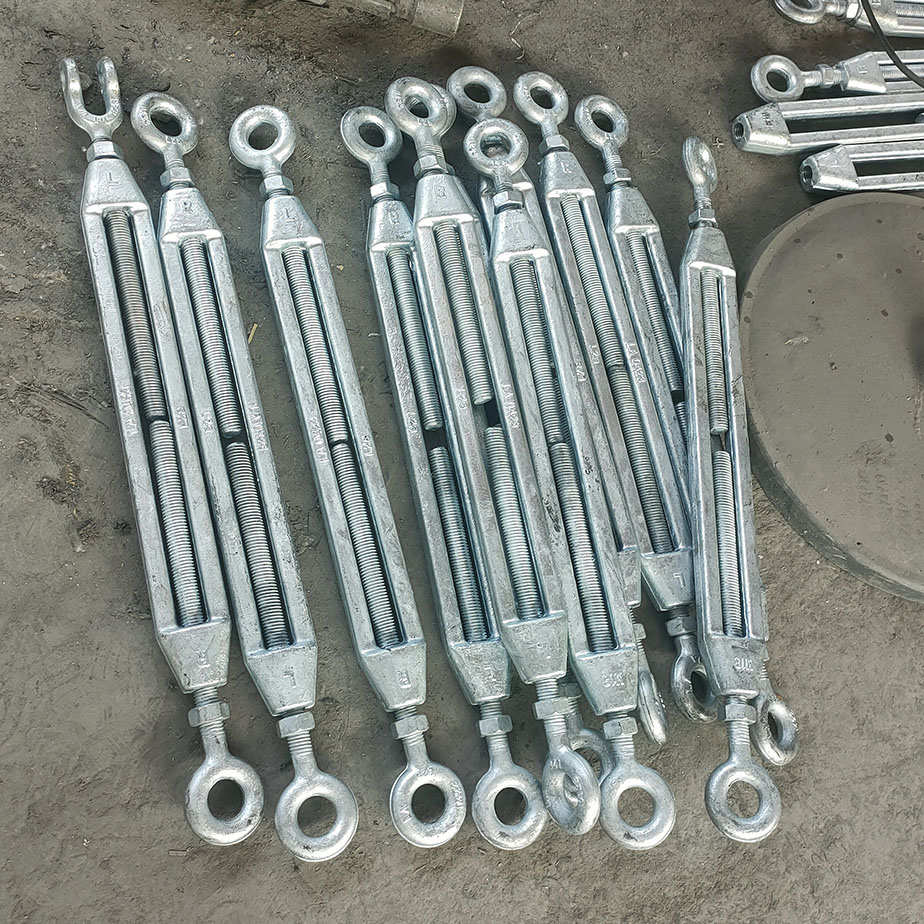

HOT DIP GALVANIZED DROP FORGED TURNBUCKLE

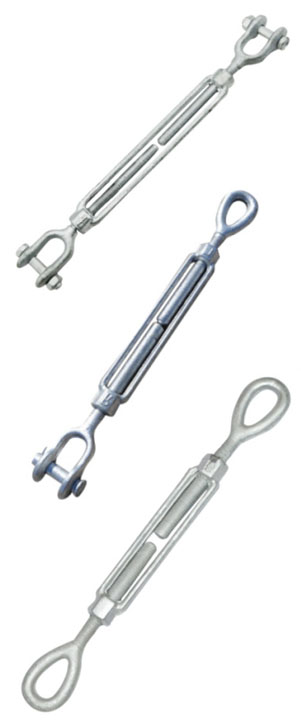

JAW& JAW,JAW& EYE,EYE & EYE

Thread dia
& Take up		 W.L.L
(lbs)		 Dimensions (in.) Weight (lbs) Weight (lbs) Weight (lbs)
A B C D Eye/Eye Jaw/Eye Jaw/Jaw
1/4×4 500 0.45 0.62 0.78 0.34 0.30 0.32 0.39
5/16×4 1/2 800 0.50 0.87 0.94 0.44 0.46 0.47 0.54
3/8×6 1200 0.54 0.87 1.12 0.53 0.73 0.76 0.83
1/2×6 2200 0.63 1.06 1.44 0.72 1.46 1.53 1.57
1/2×9 2200 0.55 1.06 1.44 0.72 1.71 1.76 1.95
1/2×12 2200 0.55 1.06 1.44 0.72 2.19 2.20 2.24
5/8×6 3500 0.82 1.31 1.75 0.88 2.47 2.65 2.80
5/8×9 3500 0.82 1.31 1.75 0.88 2.90 3.06 3.35
5/8×12 3500 0.82 1.31 1.75 0.88 3.48 3.78 4.00
3/4×6 5200 1.03 1.50 2.09 1.00 3.90 4.00 4.30
3/4×9 5200 1.03 1.50 2.09 1.00 4.60 4.75 4.89
3/4×12 5200 1.03 1.50 2.09 1.00 5.46 5.76 5.90
3/4×18 5200 1.03 1.50 2.09 1.00 6.97 7.00 7.52
7/8×6 7200 1.23 1.75 2.38 1.25 5.85 6.29 6.84
7/8×12 7200 1.23 1.75 2.38 1.25 7.65 8.00 8.60
7/8×18 7200 1.23 1.75 2.38 1.25 10.25 10.60 11.44
1×6 10000 1.31 2.06 3.00 1.44 8.98 9.16 9.44
1×12 10000 1.31 2.06 3.00 1.44 11.31 11.40 11.53
1×18 10000 1.31 2.06 3.00 1.44 14.00 14.75 16.10
1×24 10000 1.31 2.06 3.00 1.44 16.02 17.50 18.60
1 1/4×6 15200 1.86 2.81 3.56 1.81 15.45 16.03 16.69
1 1/4×12 15200 1.86 2.81 3.56 1.81 19.00 20.00 23.00
1 1/4×18 15200 1.86 2.81 3.56 1.81 22.50 24.18 26.60
1 1/4×24 15200 1.86 2.81 3.56 1.81 25.00 28.50 31.20
1 1/2×12 21400 2.25 2.81 4.06 2.12 27.00 31.10 35.50
1 1/2×18 21400 2.25 2.81 4.06 2.12 31.69 35.00 40.70
1 1/2×24 21400 2.25 2.81 4.06 2.12 38.20 44.20 47.60
1 3/4×18 28000 2.60 3.38 4.62 2.38 45.20 48.80 52.40
1 3/4×24 28000 2.60 3.38 4.62 2.38 58.00 60.00 64.00
2×24 37000 2.62 3.69 5.75 2.69 81.57 102.00 115.00
2 1/2×24 60000 3.06 4.44 6.50 3.12 180.00 183.00 200.00
2 3/4×24 75000 3.68 4.19 7.00 3.25 210.00 214.00 248.00

Ultimate load is 5 times working load limit

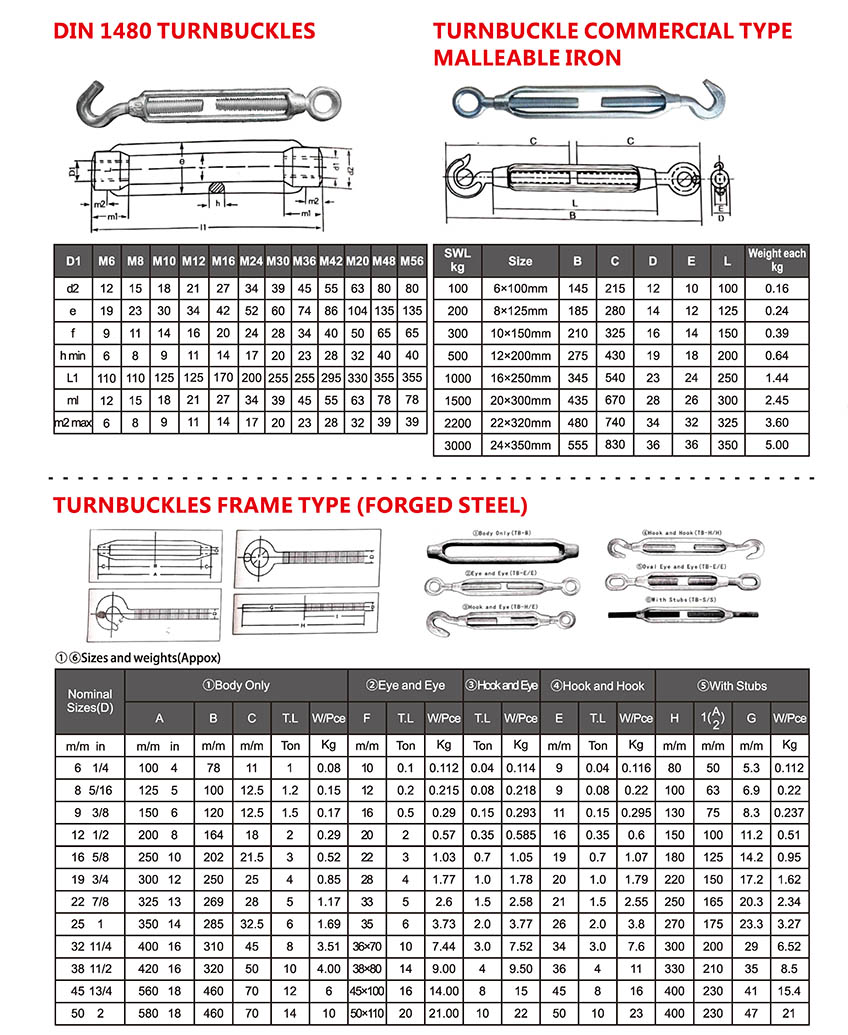

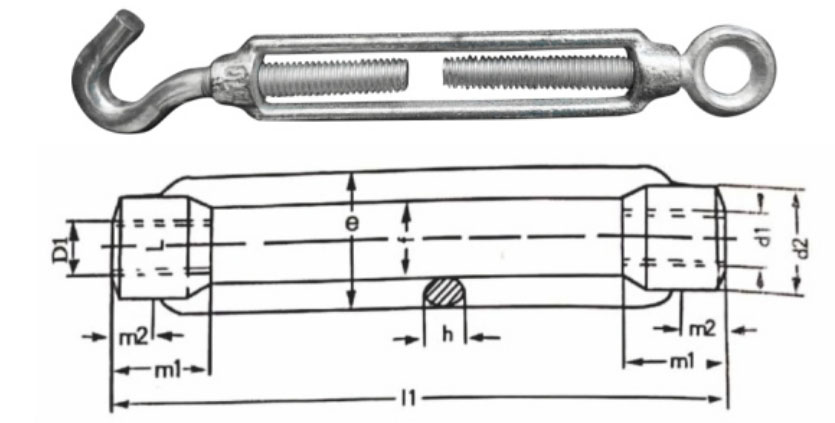

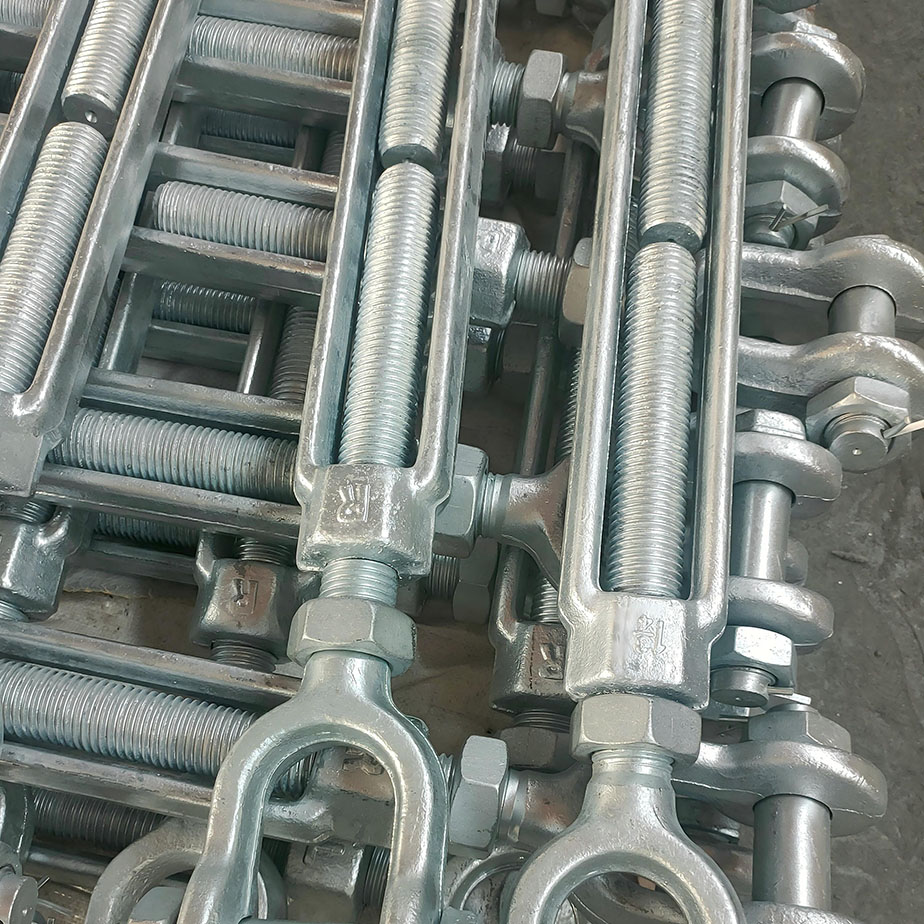

DIN 1480 TURNBUCKLES

D1 M6 M8 M10 M12 M16 M24 M30 M36 M42 M20 M48 M56
d2 12 15 18 21 27 34 39 45 55 63 80 80
e 19 23 30 34 42 52 60 74 86 104 135 135
f 9 11 14 16 20 24 28 34 40 50 65 65
h min 6 8 9 11 14 17 20 23 28 32 40 40
L1 110 110 125 125 170 200 255 255 295 330 355 355
ml 12 15 18 21 27 34 39 45 55 63 78 78
m2 max 6 8 9 11 14 17 20 23 28 32 39 39

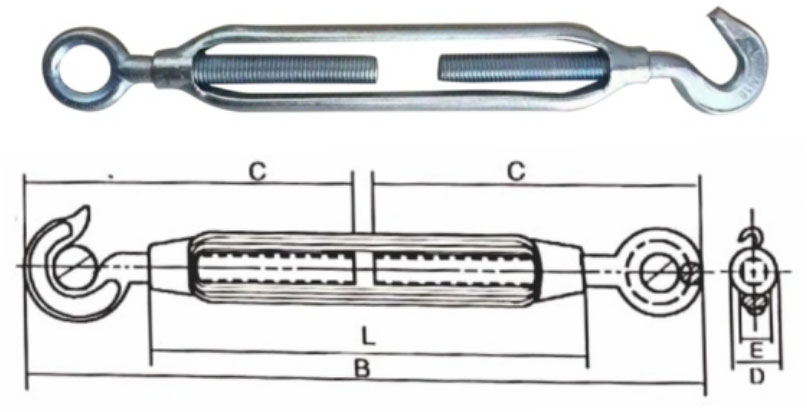

TURNBUCKLE COMMERCIAL TYPE
MALLEABLE IRON

SWL
(kg)		 Size B C D E L Weight each
(kg)
100 6×100mm 145 215 12 10 100 0.16
200 8×125mm 185 280 14 12 125 0.24
300 10×150mm 210 325 16 14 150 0.39
500 12×200mm 275 430 19 18 200 0.64
1000 16×250mm 345 540 23 24 250 1.44
1500 20×300mm 435 670 28 26 300 2.45
2200 22×320mm 480 740 34 32 325 3.60
3000 24×350mm 555830 36 36 350 5.00

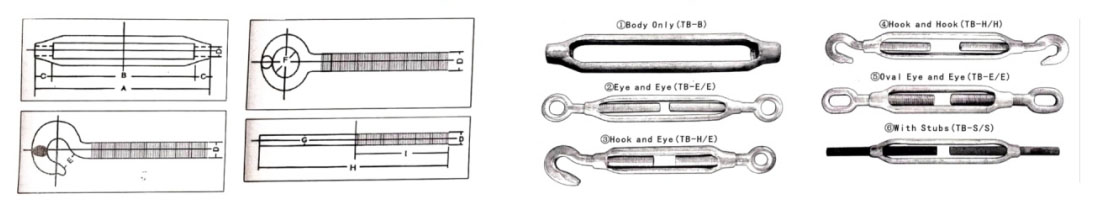

TURNBUCKLES FRAME TYPE (FORGED STEEL)

①⑥Sizes and weights(Appox)
Nominal
Sizes(D)		 ① Body Only ② Eye and Eye ③ Hook and Eye ④ Hook and Hook ⑤ Witd Stubs
A B C T.L W/Pce F T.L W/Pce T.L W/Pce E T.L W/Pce H 1(2A) G W/Pce
m/m in m/m in m/m m/m Ton Kg m/m Ton Kg Ton Kg m/m Ton Kg m/m m/m m/m Kg
6 1/4 100 4 78 11 1 0.08 10 0.1 0.112 0.04 0.114 9 0.04 0.116 80 50 5.3 0.112
8 5/16 125 5 100 12.5 1.2 0.15 12 0.2 0.215 0.08 0.218 9 0.08 0.22 100 63 6.9 0.22
9 3/8 150 6 120 12.5 1.5 0.17 16 0.5 0.29 0.15 0.293 11 0.15 0.295 130 75 8.3 0.237
12 1/2 200 8 164 18 2 0.29 20 2 0.57 0.35 0.585 16 0.35 0.6 150 100 11.2 0.51
16 5/8 250 10 202 21.5 3 0.52 22 3 1.03 0.7 1.05 19 0.7 1.07 180 125 14.2 0.95
19 3/4 300 12 250 25 4 0.85 28 4 1.77 1.0 1.78 20 1.0 1.79 220 150 17.2 1.62
22 7/8 325 13 269 28 5 1.17 33 5 2.6 1.5 2.58 21 1.5 2.55 250 165 20.3 2.34
25 1 350 14 285 32.5 6 1.69 35 6 3.73 2.0 3.77 26 2.0 3.8 270 175 23.3 3.27
32 1 1/4 400 16 310 45 8 3.51 36×70 10 7.44 3.0 7.52 34 3.0 7.6 300 200 29 6.52
38 1 1/2 420 16 320 50 10 4.00 38×80 14 9.00 4 9.50 36 4 11 330 210 35 8.5
45 1 3/4 560 18 460 70 12 6 45×100 16 14.00 8 15 45 8 16 400 230 41 15.4
50 2 580 18 460 70 14 10 50×110 20 21.00 10 22 50 10 23 400 230 47 21
Product Description

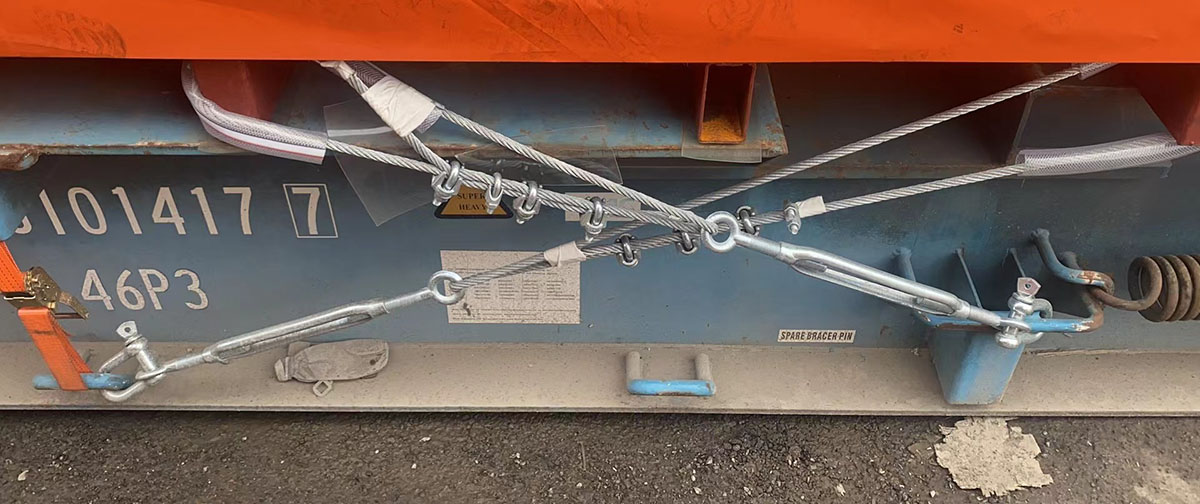

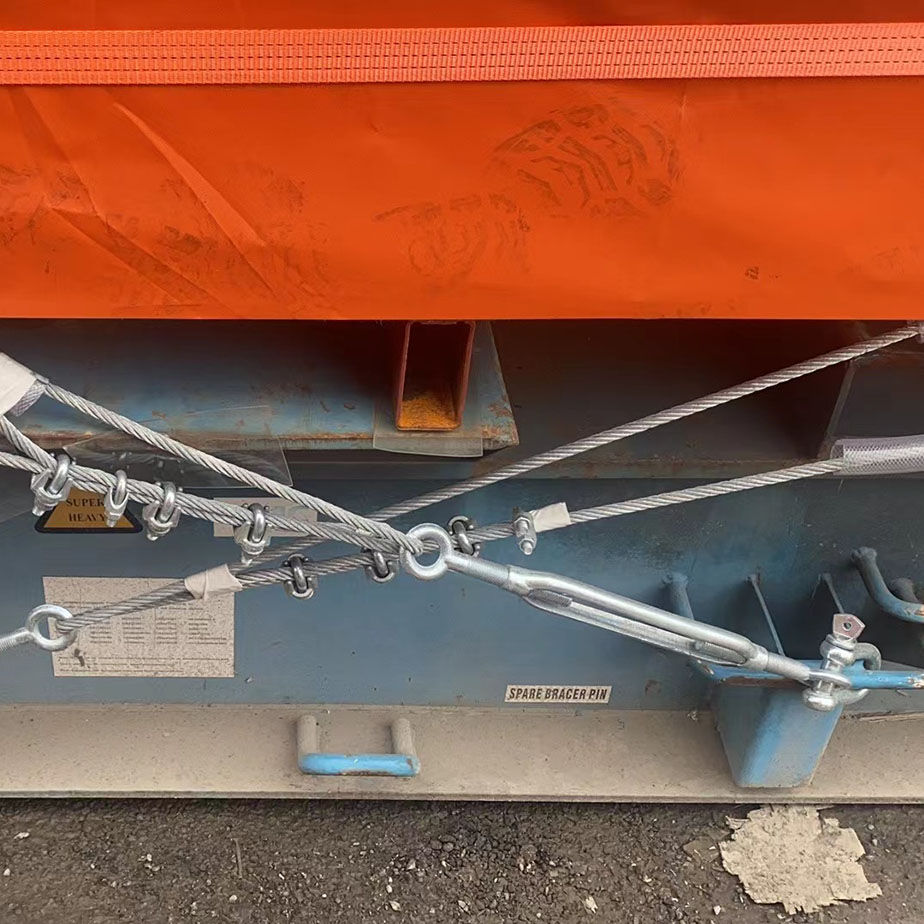

Turnbuckles, also known as rigging screws, are critical hardware components used for tensioning and adjusting rigging systems. These products are classified and managed according to IMPA codes (e.g., IMPA 230678, 230548) and comply with international standards such as DIN 1480.

High-strength forged carbon steel (Hot-Dip Galvanized/Dacromet) or austenitic stainless steel (AISI 304/316L with Electropolishing).

End-fitting configurations include Hook & Hook, Eye & Eye, Jaw & Jaw, and combination ends for precise axial tensioning.

Randomly sampled proof load tests ensure that there is no permanent deformation under the Working Load Limit (WLL) and that the Minimum Breaking Load (MBL) meets the design safety factor of 4:1 to 6:1. Critical load-bearing areas are subjected to magnetic particle inspection (MPI) or dye penetrant inspection (DPI) to eliminate surface and near-surface cracks.
