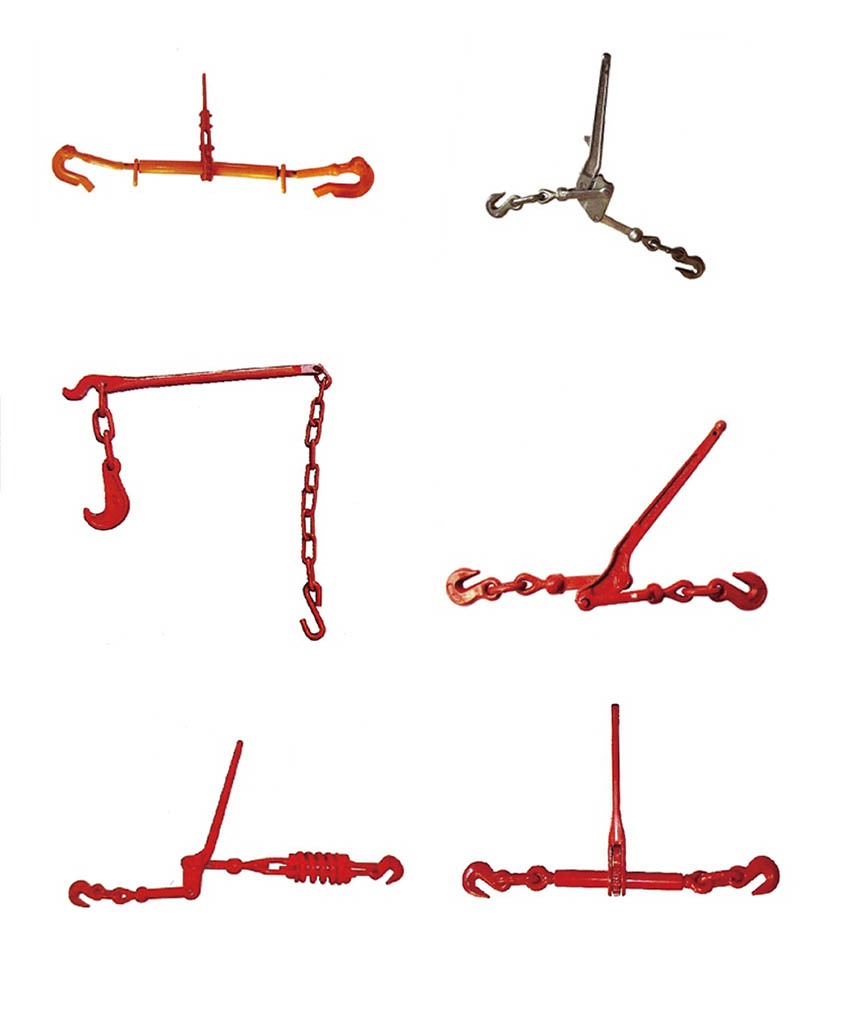

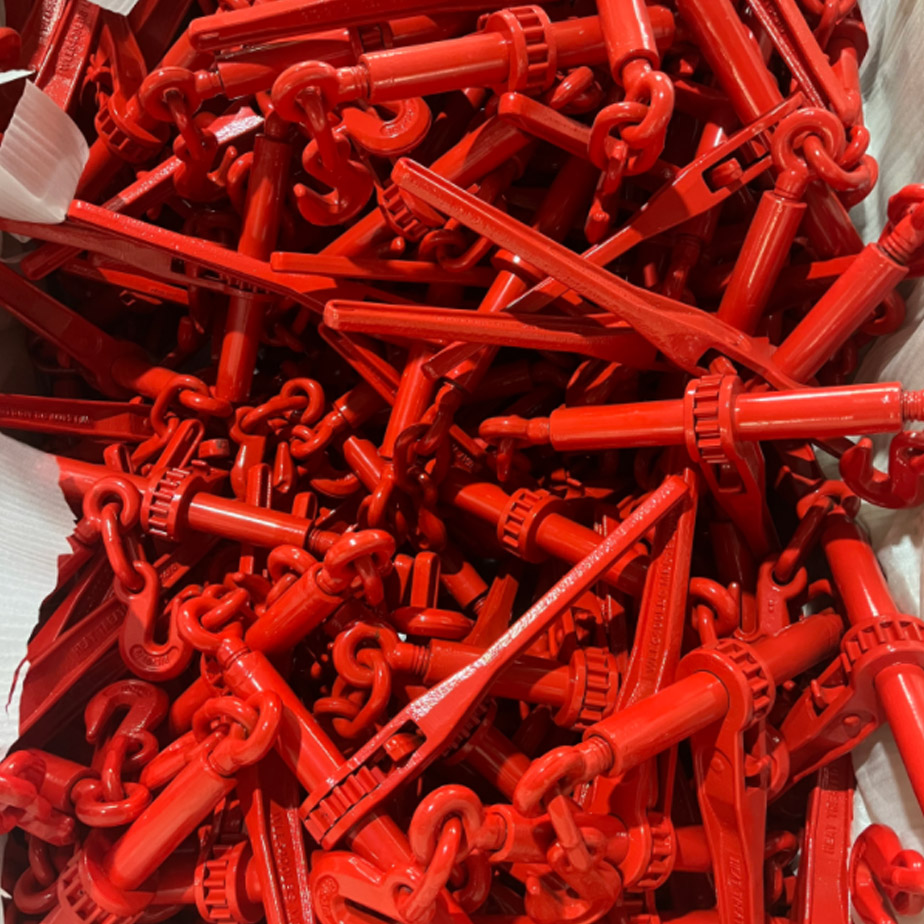

Load Binders

Product Load Binders
Size 1/4-5/16, 5/16-3/8, 3/8-1/2, 1/2-5/8
Finish Powder plastified

  • Product Description

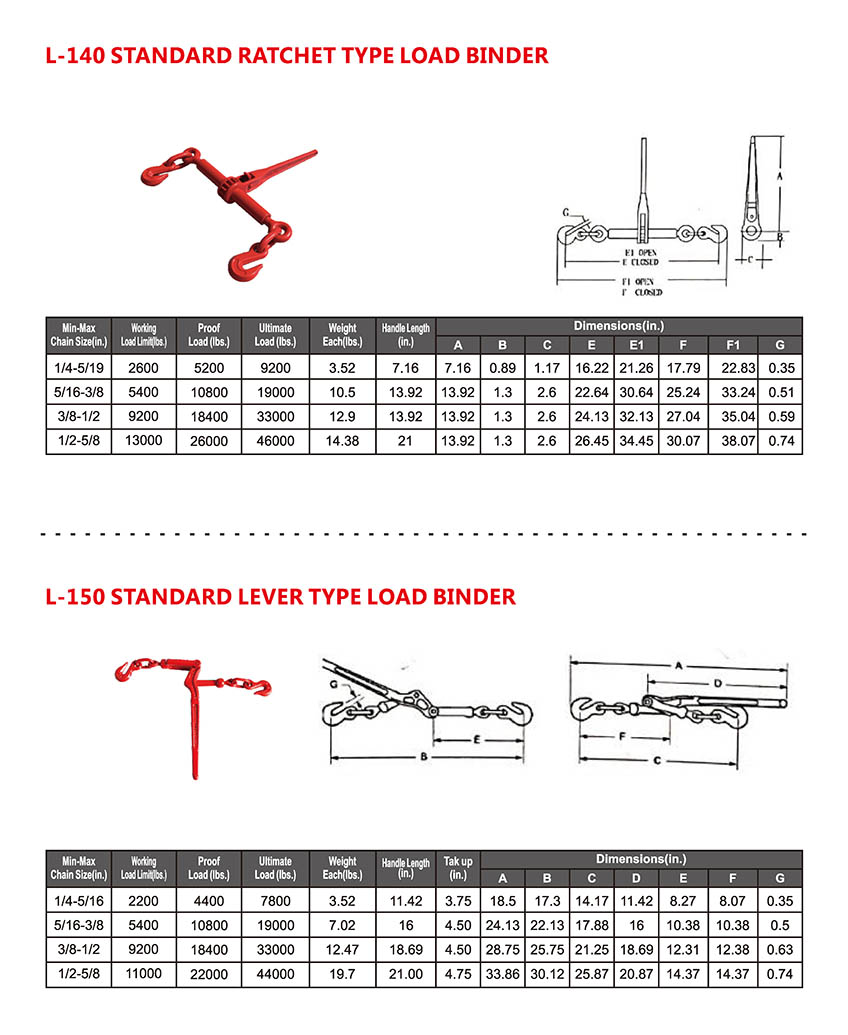

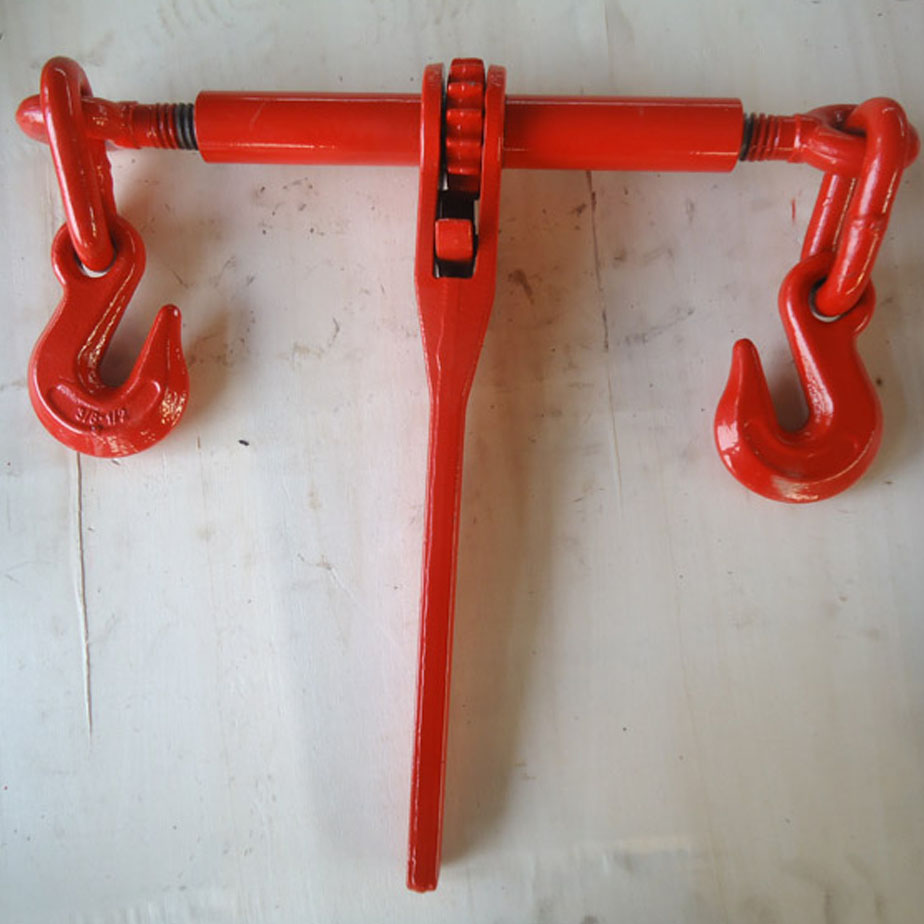

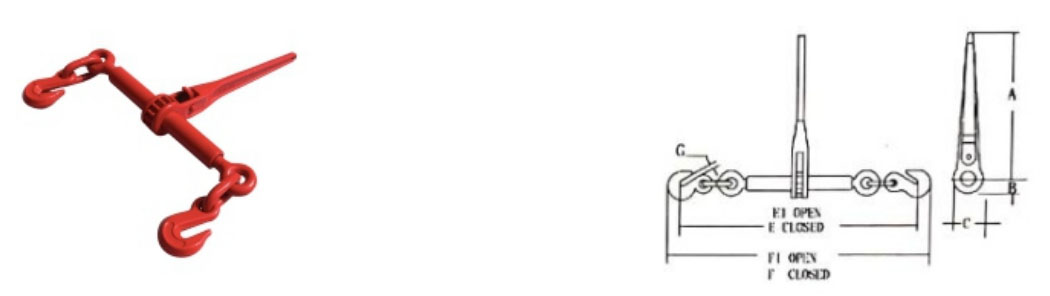

L-140 STANDARD RATCHET TYPE LOAD BINDER

Min-Max
Chain Size (in.)		 Working
Load Limit (lbs.)		 Proof
Load (lbs.)		 Ultimate
Load (lbs.)		 Weight
Each (lbs.)		 Handle Lengtd
(in.)		 Dimensions (in.)
A B C E E1 F F1 G
1/4-5/19 2600 5200 9200 3.52 7.16 7.16 0.89 1.17 16.22 21.26 17.79 22.83 0.35
5/16-3/8 5400 10800 19000 10.5 13.92 13.92 1.3 2.6 22.64 30.64 25.24 33.24 0.51
3/8-1/2 9200 18400 33000 12.9 13.92 13.92 1.3 2.6 24.13 32.13 27.04 35.04 0.59
1/2-5/8 13000 26000 46000 14.38 21 13.92 1.3 2.6 26.45 34.45 30.07 38.07 0.74

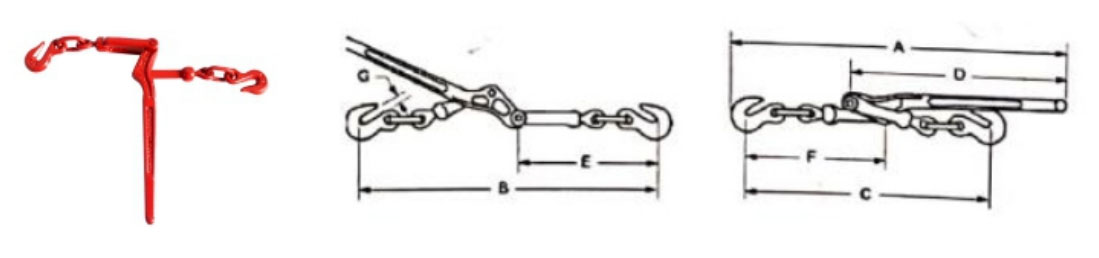

L-150 STANDARD LEVER TYPE LOAD BINDER

Min-Max
Chain Size (in.)		 Working
Load Limit (lbs.)		 Proof
Load (lbs.)		 Ultimate
Load (lbs.)		 Weight
Each (lbs.)		 Handle Lengtd
(in.)		 Take up
(in.)		 Dimensions (in.)
A B C D E F G
1/4-5/16 2200 4400 7800 3.52 11.42 3.75 18.5 17.3 14.17 11.42 8.27 8.07 0.35
5/16-3/8 5400 10800 19000 7.02 16 4.50 24.13 22.13 17.88 16 10.38 10.38 0.5
3/8-1/2 9200 18400 33000 12.47 18.69 4.50 28.75 25.75 21.25 18.69 12.31 12.38 0.63
1/2-5/8 11000 22000 44000 19.7 21.00 4.75 33.86 30.12 25.87 20.87 14.37 14.37 0.74
Product Description

These Load Binders are forged from super alloy steel and quenched and tempered, delivering excellent strength and toughness. They withstand repeated loads under harsh working conditions without deformation or fracture.

Every load binder undergoes strict quality control:

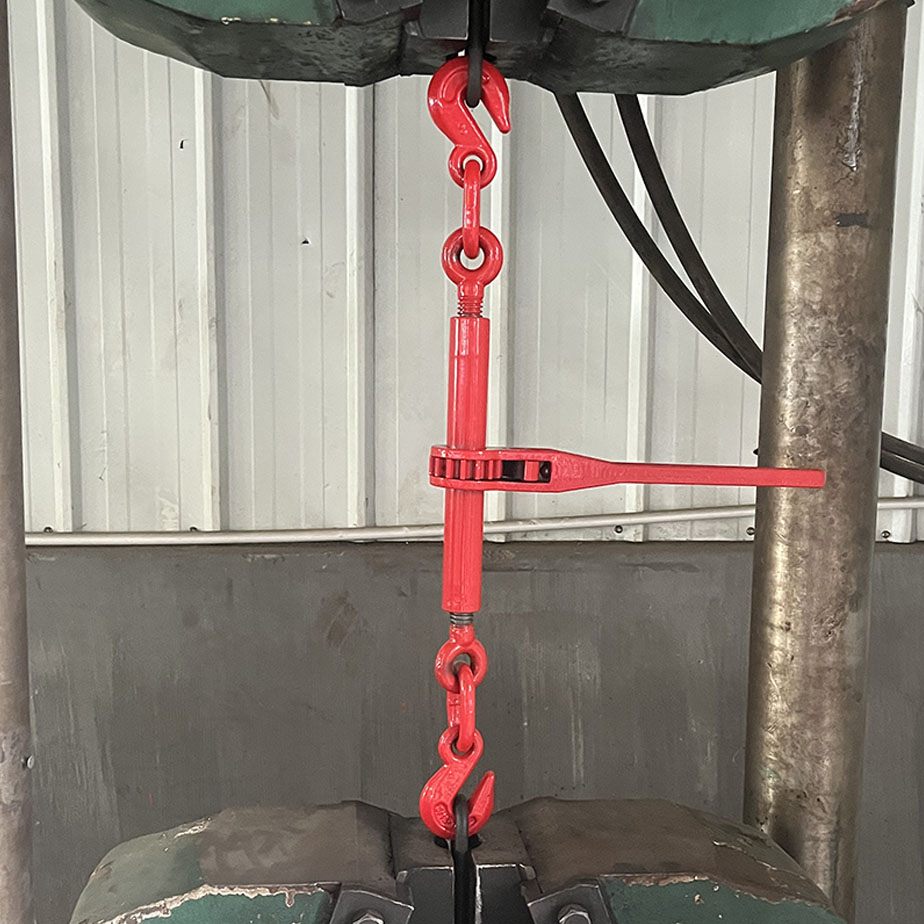

Individual Proof Test: Each unit is proof tested at 2.5 times the Working Load Limit (WLL) to ensure compliance with safety standards.
Fatigue Test: Samples are fatigue tested at 1.5 times WLL for 20,000 cycles, proving long service life under frequent operation.
Breakage Test: Rigorous sampling breakage tests are performed on each production batch to verify ultimate load capacity.
100% Magnalflux Crack Detection: All components are 100% magnetic particle inspected to eliminate surface or near-surface cracks and ensure material integrity.

Brief Introduction of product range:

Dear Customers and Friends
Sipower is a raising brand for Marine Servi ces, and it's agreat honor to introduce you the updated version of ourproduct catalogue.
Marine products and services cover:
* Lashing equi pment
* Lifting equi pment and enginneering
*Rigging gear
* Physical Iashing/welding servi ce on board.
Besides, we could provide one-stop service wi th othermarine accessories, or some consumption for the varietyof vessel s, ship owners and Iogistics parti ci pants.
