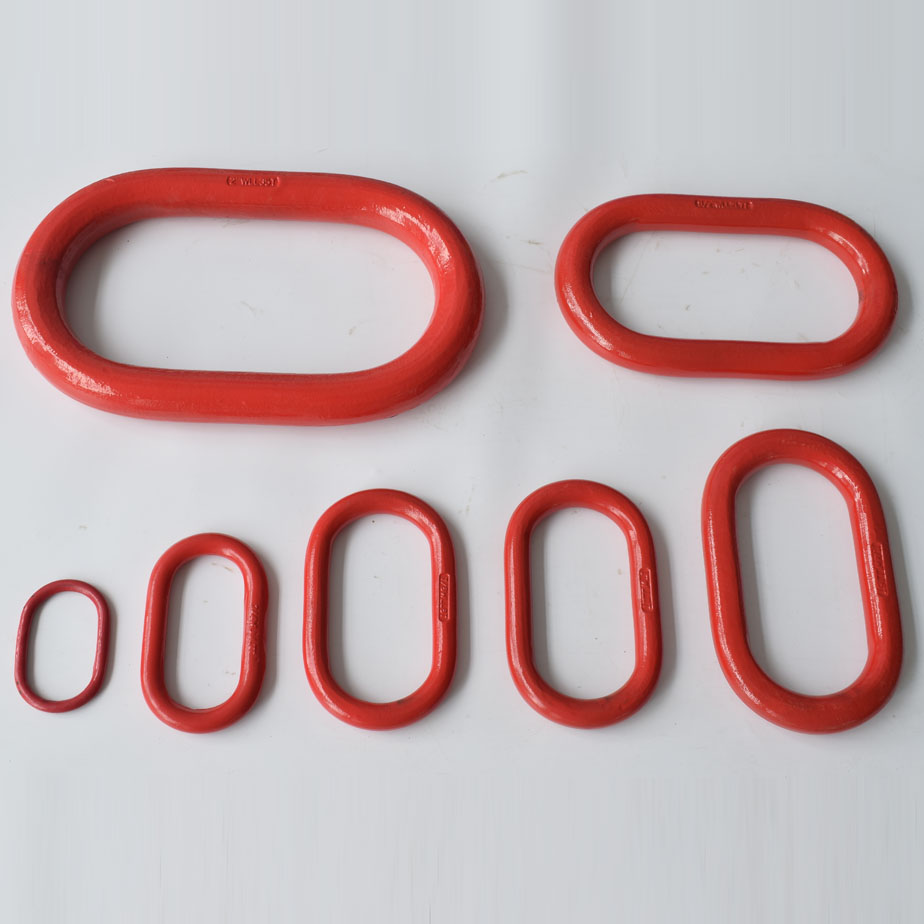

G80 Master Links
| Product | Master link |
| Size | G100, G80 |
| Finish | Powder plastified |
- Product Description

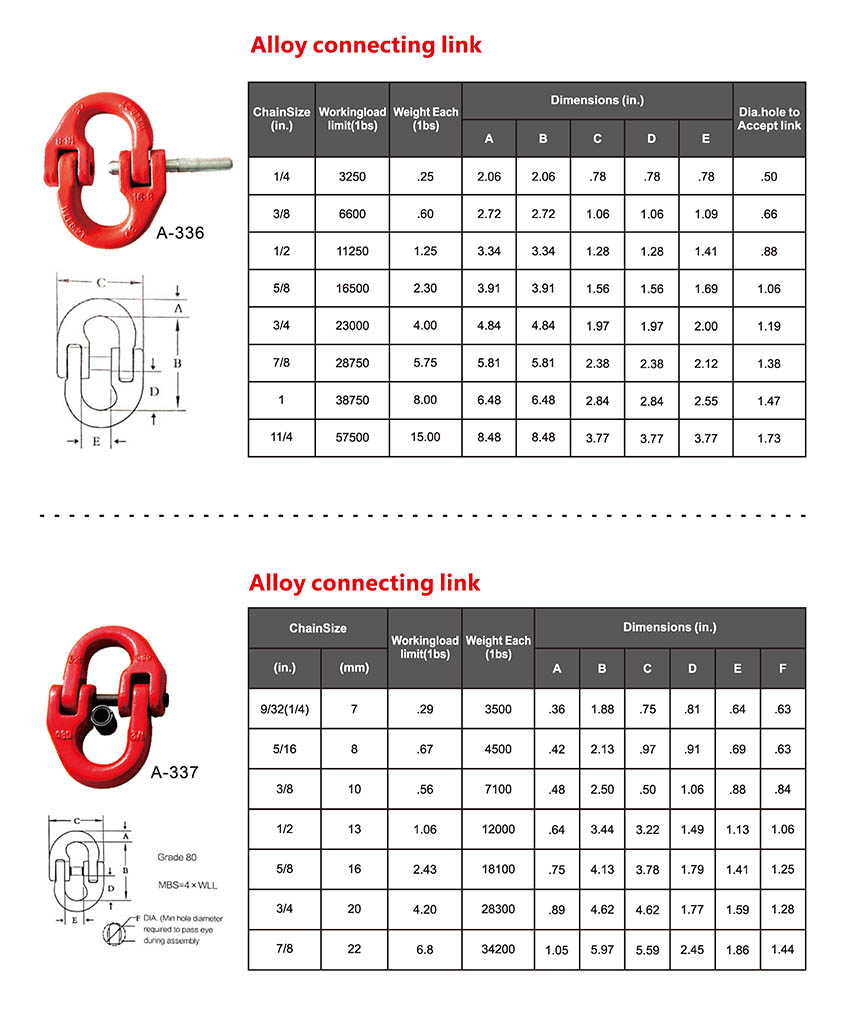

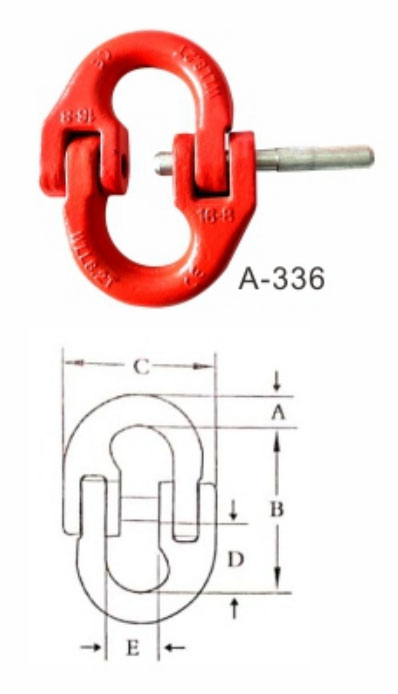

Alloy connecting link
| ChainSize (in.) |
Workingload limit (1bs) |
Weight Each (1bs) |
Dimensions (in.) | Dia.hole to Accept link |
||||
| A | B | C | D | E | ||||
| 1/4 | 3250 | .25 | 2.06 | 2.06 | .78 | .78 | .78 | .50 |
| 3/8 | 6600 | .60 | 2.72 | 2.72 | 1.06 | 1.06 | 1.09 | .66 |
| 1/2 | 11250 | 1.25 | 3.34 | 3.34 | 1.28 | 1.28 | 1.41 | .88 |
| 5/8 | 16500 | 2.30 | 3.91 | 3.91 | 1.56 | 1.56 | 1.69 | 1.06 |
| 3/4 | 23000 | 4.00 | 4.84 | 4.84 | 1.97 | 1.97 | 2.00 | 1.19 |
| 7/8 | 28750 | 5.75 | 5.81 | 5.81 | 2.38 | 2.38 | 2.12 | 1.38 |
| 1 | 38750 | 8.00 | 6.48 | 6.48 | 2.84 | 2.84 | 2.55 | 1.47 |
| 11/4 | 57500 | 15.00 | 8.48 | 8.48 | 3.77 | 3.77 | 3.77 | 1.73 |
Alloy connecting link
| ChainSize | Workingload limit(1bs) |
Weight Each (1bs) |
Dimensions (in.) | ||||||
| (in.) | (mm) | A | B | C | D | E | F | ||
| 9/32(1/4) | 7 | .29 | 3500 | .36 | 1.88 | .75 | .81 | .64 | .63 |
| 5/16 | 8 | .67 | 4500 | .42 | 2.13 | .97 | .91 | .69 | .63 |
| 3/8 | 10 | .56 | 7100 | .48 | 2.50 | .50 | 1.06 | .88 | .84 |
| 1/2 | 13 | 1.06 | 12000 | .64 | 3.44 | 3.22 | 1.49 | 1.13 | 1.06 |
| 5/8 | 16 | 2.43 | 18100 | .75 | 4.13 | 3.78 | 1.79 | 1.41 | 1.25 |
| 3/4 | 20 | 4.20 | 28300 | .89 | 4.62 | 4.62 | 1.77 | 1.59 | 1.28 |
| 7/8 | 22 | 6.8 | 34200 | 1.05 | 5.97 | 5.59 | 2.45 | 1.86 | 1.44 |

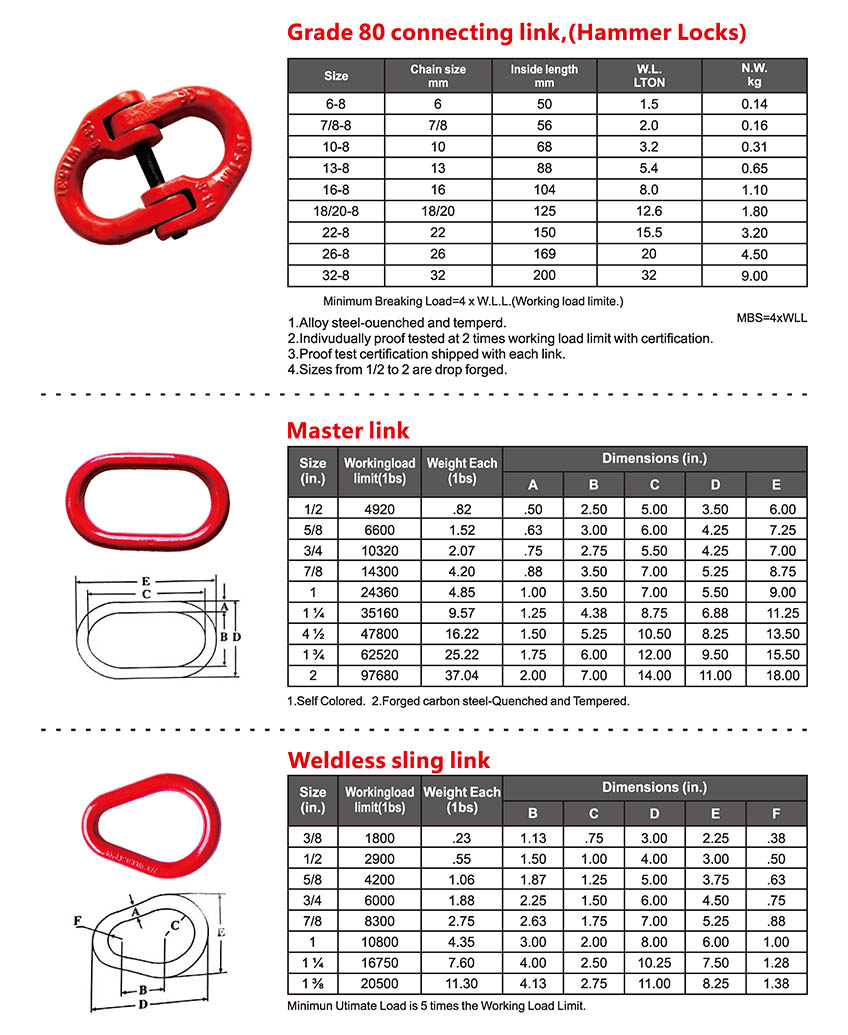

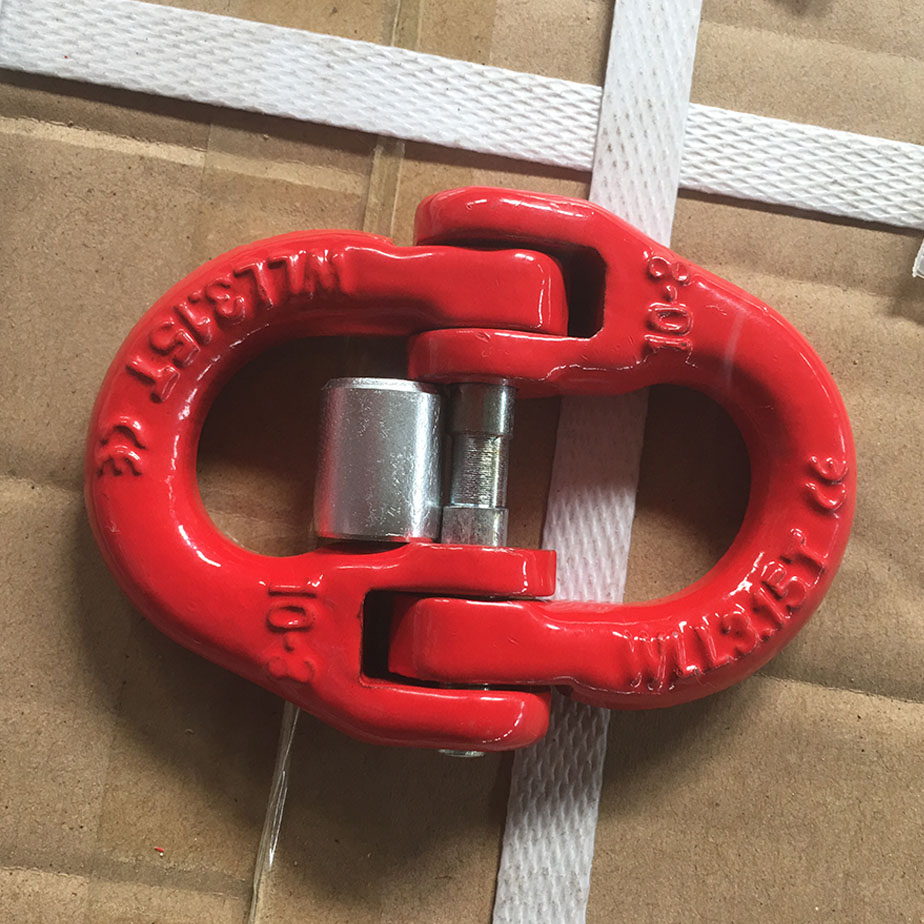

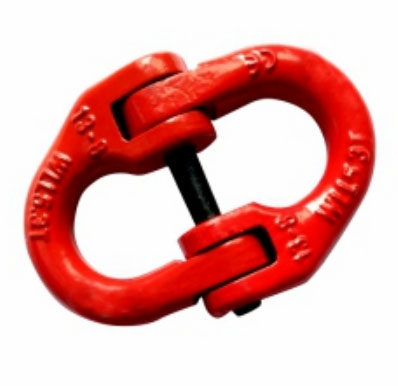

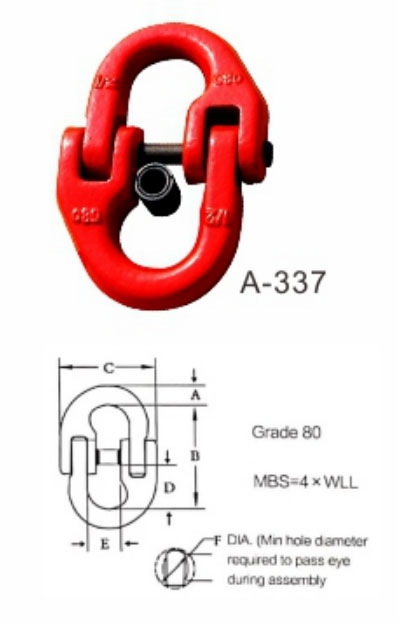

Grade 80 connecting link,(Hammer Locks)
| Size | Chain size (mm) |
Inside lengtd (mm) |
W.L. (LTON) |
N.W. (kg) |
| 6-8 | 6 | 50 | 1.5 | 0.14 |
| 7/8-8 | 7/8 | 56 | 2.0 | 0.16 |
| 10-8 | 10 | 68 | 3.2 | 0.31 |
| 13-8 | 13 | 88 | 5.4 | 0.65 |
| 16-8 | 16 | 104 | 8.0 | 1.10 |
| 18/20-8 | 18/20 | 125 | 12.6 | 1.80 |
| 22-8 | 22 | 150 | 15.5 | 3.20 |
| 26-8 | 26 | 169 | 20 | 4.50 |
| 32-8 | 32 | 200 | 32 | 9.00 |
Minimum Breaking Load=4 x W.L.L.(Working load limite.)
1.Alloy steel-ouenched and temperd. MBS=4×WLL
2. Indivudually proof tested at 2 times working load limit with certification.
3.Proof test certification shipped with each link.
4.Sizes from 1/2 to 2 are drop forged.

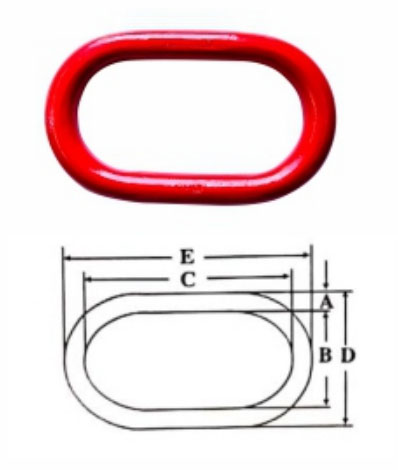

Master Link
| Size (in.) |
Workingload limit(1bs) |
Weight Each (1bs) |
Dimensions (in.) | ||||
| A | B | C | D | E | |||
| 1/2 | 4920 | .82 | .50 | 2.50 | 5.00 | 3.50 | 6.00 |
| 5/8 | 6600 | 1.52 | .63 | 3.00 | 6.00 | 4.25 | 7.25 |
| 3/4 | 10320 | 2.07 | .75 | 2.75 | 5.50 | 4.25 | 7.00 |
| 7/8 | 14300 | 4.20 | .88 | 3.50 | 7.00 | 5.25 | 8.75 |
| 1 | 24360 | 4.85 | 1.00 | 3.50 | 7.00 | 5.50 | 9.00 |
| 1 1/4 | 35160 | 9.57 | 1.25 | 4.38 | 8.75 | 6.88 | 11.25 |
| 1 1/2 | 47800 | 16.22 | 1.50 | 5.25 | 10.50 | 8.25 | 13.50 |
| 1 3/4 | 62520 | 25.22 | 1.75 | 6.00 | 12.00 | 9.50 | 15.50 |
| 2 | 97680 | 37.04 | 2.00 | 7.00 | 14.00 | 11.00 | 18.00 |
1.Self Colored. 2.Forged carbon steel-Quenched and Tempered.

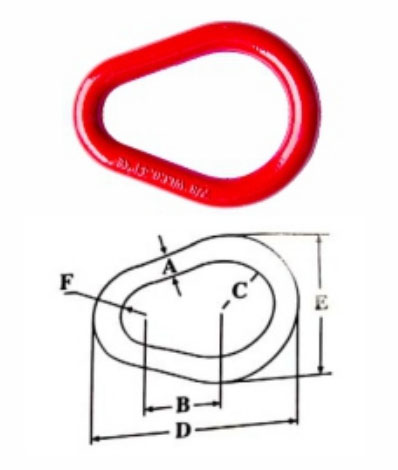

Weldless sling link
| Size (in.) |
Workingload limit(1bs) |
Weight Each (1bs) |
Dimensions (in.) | ||||
| B | C | D | E | F | |||
| 3/8 | 1800 | .23 | 1.13 | .75 | 3.00 | 2.25 | .38 |
| 1/2 | 2900 | .55 | 1.50 | 1.00 | 4.00 | 3.00 | .50 |
| 5/8 | 4200 | 1.06 | 1.87 | 1.25 | 5.00 | 3.75 | .63 |
| 3/4 | 6000 | 1.88 | 2.25 | 1.50 | 6.00 | 4.50 | .75 |
| 7/8 | 8300 | 2.75 | 2.63 | 1.75 | 7.00 | 5.25 | .88 |
| 1 | 10800 | 4.35 | 3.00 | 2.00 | 8.00 | 6.00 | 1.00 |
| 1 1/4 | 16750 | 7.60 | 4.00 | 2.50 | 10.25 | 7.50 | 1.28 |
| 1 3/8 | 20500 | 11.30 | 4.13 | 2.75 | 11.00 | 8.25 | 1.38 |
Minimun Utimate Load is 5 times the Working Load Limit.

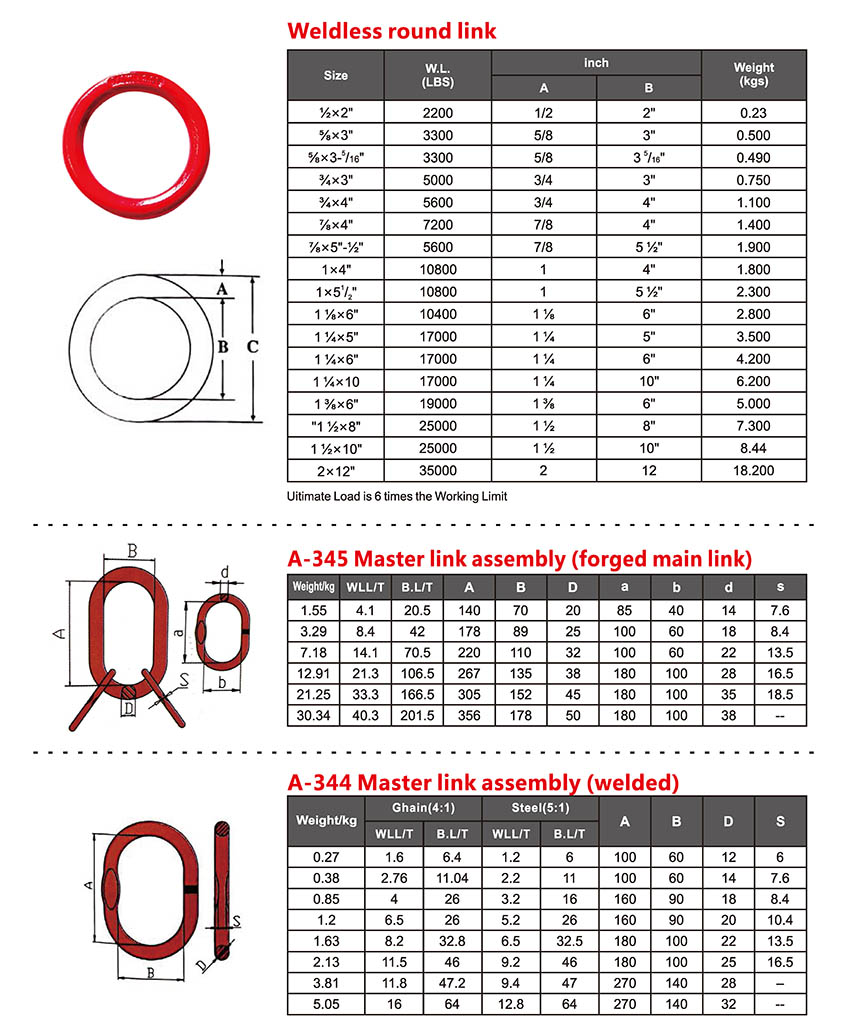

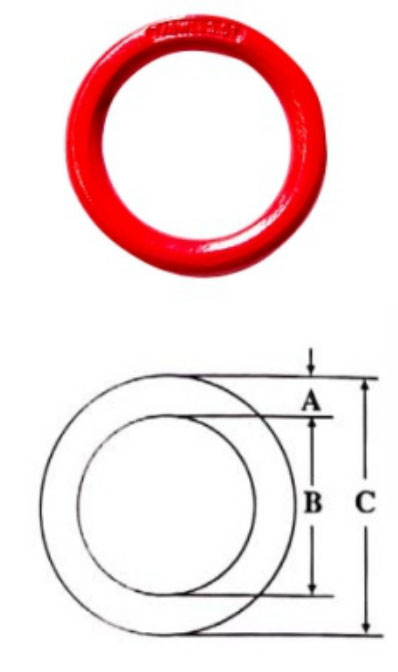

Weldless round link
| Size | W.L. (LBS) |
inch | Weight (kgs) |
|
| A | B | |||
| 1/2×2" | 2200 | 1/2 | 2" | 0.23 |
| 5/8×3" | 3300 | 5/8 | 3" | 0.500 |
| 5/8×3-5/16" | 3300 | 5/8 | 3 5/16" | 0.490 |
| 3/4×3" | 5000 | 3/4 | 3" | 0.750 |
| 3/4×4" | 5600 | 3/4 | 4" | 1.100 |
| 7/8×4" | 7200 | 7/8 | 4" | 1.400 |
| 7/8×5"-1/2" | 5600 | 7/8 | 5 1/2" | 1.900 |
| 1×4" | 10800 | 1 | 4" | 1.800 |
| 1×5 1/2" | 10800 | 1 | 5 1/2" | 2.300 |
| 1 1/8×6" | 10400 | 1 1/8 | 6" | 2.800 |
| 1 1/4×5" | 17000 | 1 1/4 | 5" | 3.500 |
| 1 1/4×6" | 17000 | 1 1/4 | 6" | 4.200 |
| 1 1/4×10" | 17000 | 1 1/4 | 10" | 6.200 |
| 1 3/8×6" | 19000 | 1 3/8 | 6" | 5.000 |
| 1 1/2×8" | 25000 | 1 1/2 | 8" | 7.300 |
| 1 1/2×10" | 25000 | 1 1/2 | 10" | 8.44 |
| 2×12" | 35000 | 2 | 12" | 18.200 |
Uitimate Load is 6 times the Working Limit

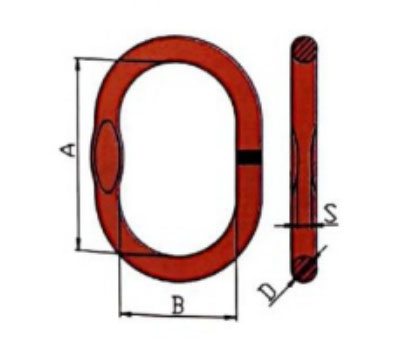

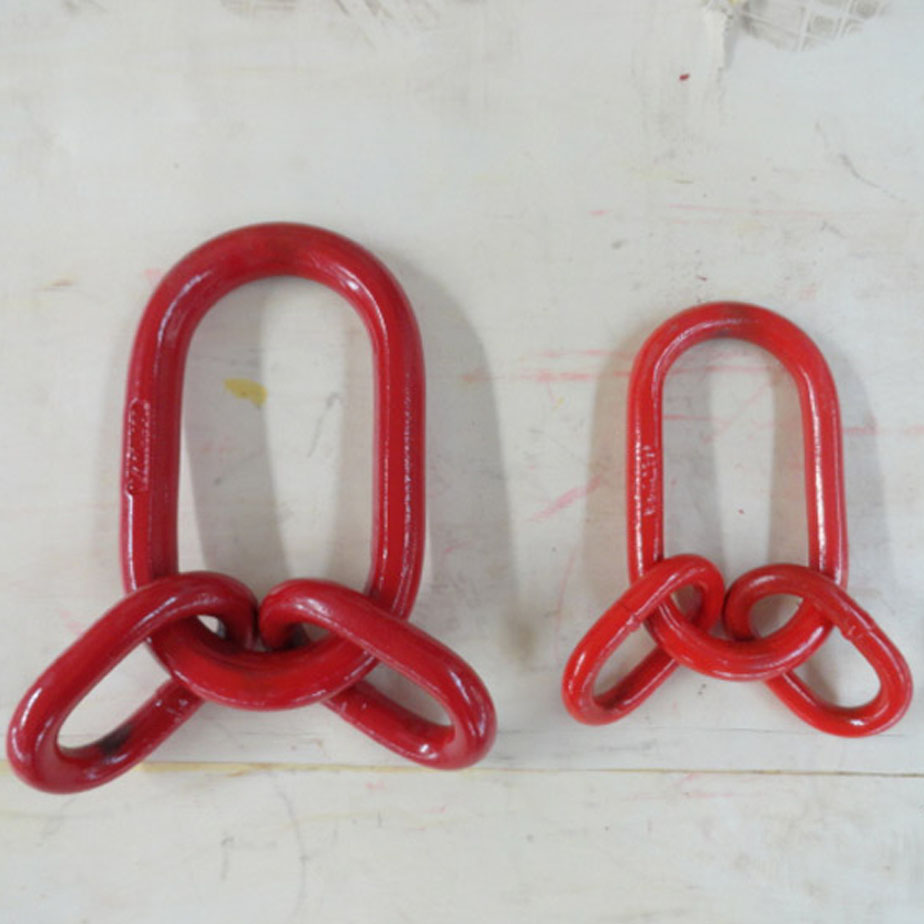

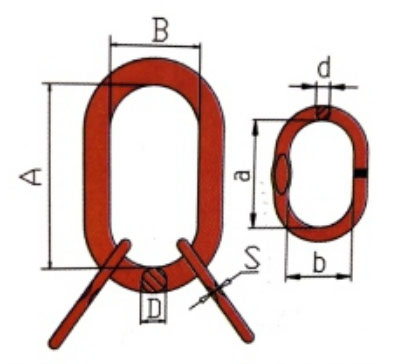

A-345 Master link assembly (forged main link)
| Weight/kg | WLL/T | B.L/T | A | B | D | a | b | d | s |
| 1.55 | 4.1 | 20.5 | 140 | 70 | 20 | 85 | 40 | 14 | 7.6 |
| 3.29 | 8.4 | 42 | 178 | 89 | 25 | 100 | 60 | 18 | 8.4 |
| 7.18 | 14.1 | 70.5 | 220 | 110 | 32 | 100 | 60 | 22 | 13.5 |
| 12.91 | 21.3 | 106.5 | 267 | 135 | 38 | 180 | 100 | 28 | 16.5 |
| 21.25 | 33.3 | 166.5 | 305 | 152 | 45 | 180 | 100 | 35 | 18.5 |
| 30.34 | 40.3 | 201.5 | 356 | 178 | 50 | 180 | 100 | 38 | -- |
A-344 Master link assembly (welded)
| Weight/kg | Gchain(4:1) | Steel(5:1) | A | B | D | S | ||
| WLL/T | B.L/T | WLL/T | B.L/T | |||||
| 0.27 | 1.6 | 6.4 | 1.2 | 6 | 100 | 60 | 12 | 6 |
| 0.38 | 2.76 | 11.04 | 2.2 | 11 | 100 | 60 | 14 | 7.6 |
| 0.85 | 4 | 26 | 3.2 | 16 | 160 | 90 | 18 | 8.4 |
| 1.2 | 6.5 | 26 | 5.2 | 26 | 160 | 90 | 20 | 10.4 |
| 1.63 | 8.2 | 32.8 | 6.5 | 32.5 | 180 | 100 | 22 | 13.5 |
| 2.13 | 11.5 | 46 | 9.2 | 46 | 180 | 100 | 25 | 16.5 |
| 3.81 | 11.8 | 47.2 | 9.4 | 47 | 270 | 140 | 28 | – |
| 5.05 | 16 | 64 | 12.8 | 64 | 270 | 140 | 32 | -- |
