G80 Hooks
| Product | G80 Hooks |
| Size | 6-8, 7/8-8, 10-8, 13-8, 16-8 |
| Finish | Powder plastified, Galv. |
- Product Description

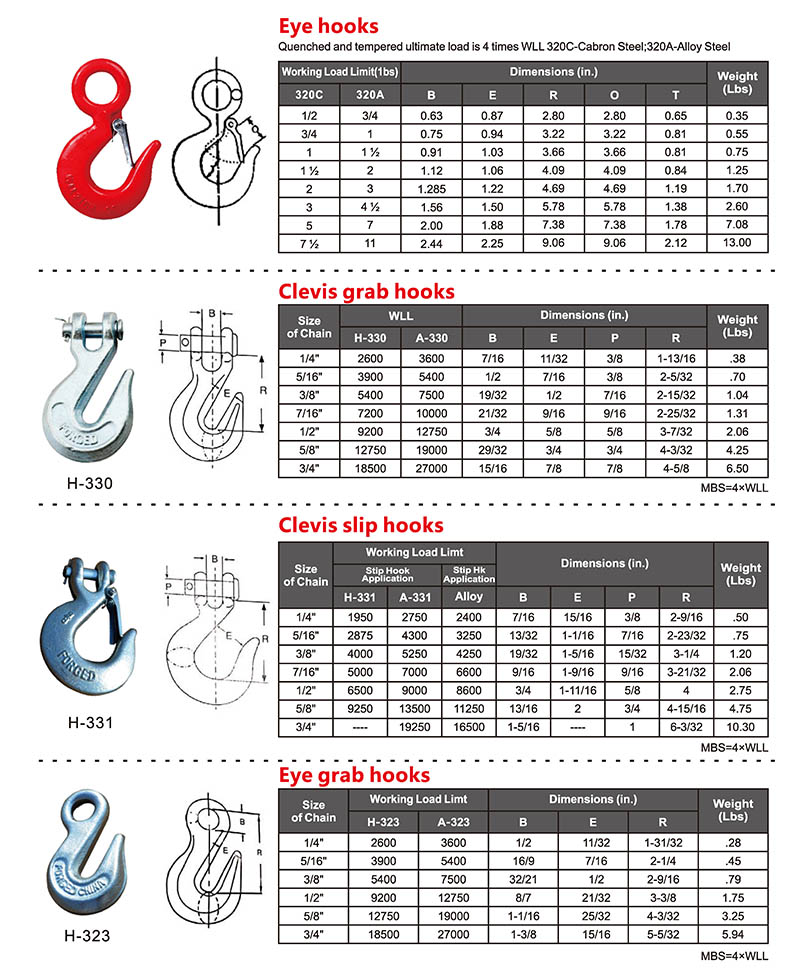

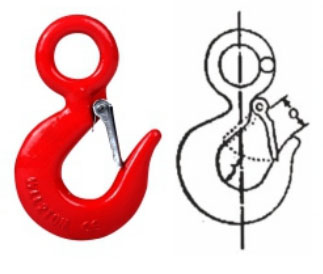

Eye Hooks
Quenched and tempered ultimate load is 4 times WLL 320C-Cabron Steel;320A-Alloy Steel
| Working Load Limit (lbs) | Dimensions (in.) | Weight | |||||
| 320C | 320A | B | E | R | O | T | (Lbs) |
| 1/2 | 3/4 | 0.63 | 0.87 | 2.80 | 2.80 | 0.65 | 0.35 |
| 3/4 | 1 | 0.75 | 0.94 | 3.22 | 3.22 | 0.81 | 0.55 |
| 1 | 1 1/2 | 0.91 | 1.03 | 3.66 | 3.66 | 0.81 | 0.75 |
| 1 1/2 | 2 | 1.12 | 1.06 | 4.09 | 4.09 | 0.84 | 1.25 |
| 2 | 3 | 1.285 | 1.22 | 4.69 | 4.69 | 1.19 | 1.70 |
| 3 | 4 1/2 | 1.56 | 1.50 | 5.78 | 5.78 | 1.38 | 2.60 |
| 5 | 7 | 2.00 | 1.88 | 7.38 | 7.38 | 1.78 | 7.08 |
| 7 1/2 | 11 | 2.44 | 2.25 | 9.06 | 9.06 | 2.12 | 13.00 |

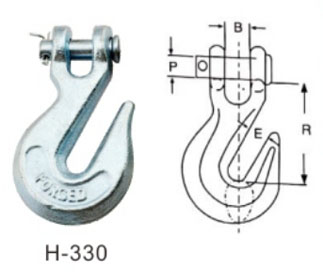

Clevis grab hooks
| Size of Chain |
WLL | Dimensions (in.) | Weight (Lbs) |
||||
| H-330 | A-330 | B | E | P | R | ||
| 1/4" | 2600 | 3600 | 7/16 | 11/32 | 3/8 | 1-13/16 | 0.38 |
| 5/16" | 3900 | 5400 | 1/2 | 7/16 | 3/8 | 2-5/32 | 0.70 |
| 3/8" | 5400 | 7500 | 19/32 | 1/2 | 7/16 | 2-15/32 | 1.04 |
| 7/16" | 7200 | 10000 | 21/32 | 9/16 | 9/16 | 2-25/32 | 1.31 |
| 1/2" | 9200 | 12750 | 3/4 | 5/8 | 5/8 | 3-7/32 | 2.06 |
| 5/8" | 12750 | 19000 | 29/32 | 3/4 | 3/4 | 4-3/32 | 4.25 |
| 3/4" | 18500 | 27000 | 15/16 | 7/8 | 7/8 | 4-5/8 | 6.50 |
MBS=4xWLL

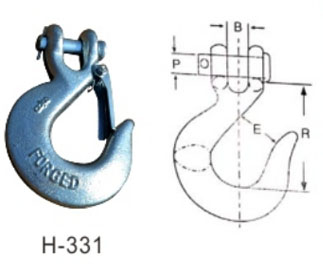

Clevis slip hooks
| Size of Chain |
Working Load Limit | Dimensions (in.) | Weight (Lbs) |
|||||
| Stip Hook Application |
Stip Hk Application |
|||||||
| H-331 | A-331 | Alloy | B | E | P | R | ||
| 1/4" | 1950 | 2750 | 2400 | 7/16 | 15/16 | 3/8 | 2-9/16 | 0.50 |
| 5/16" | 2875 | 4300 | 3250 | 13/32 | 1-1/16 | 7/16 | 2-23/32 | 0.75 |
| 3/8" | 4000 | 5250 | 4250 | 19/32 | 1-5/16 | 15/32 | 3-1/4 | 1.20 |
| 7/16" | 5000 | 7000 | 6600 | 9/16 | 1-9/16 | 9/16 | 3-21/32 | 2.06 |
| 1/2" | 6500 | 9000 | 8600 | 3/4 | 1-11/16 | 5/8 | 4 | 2.75 |
| 5/8" | 9250 | 13500 | 11250 | 13/16 | 2 | 3/4 | 4-15/16 | 4.75 |
| 3/4" | ----- | 19250 | 16500 | 1-5/16 | ----- | 1 | 6-3/32 | 10.30 |
MBS=4xWLL

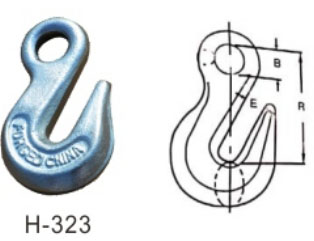

Eye grab hooks
| Size of Chain |
Working Load Limit | Dimensions (in.) | Weight (Lbs) |
|||
| H-323 | A-323 | B | E | R | ||
| 1/4" | 2600 | 3600 | 1/2 | 11/32 | 1-31/32 | 0.28 |
| 5/16" | 3900 | 5400 | 16/9 | 7/16 | 2-1/4 | 0.45 |
| 3/8" | 5400 | 7500 | 32/21 | 1/2 | 2-9/16 | 0.79 |
| 1/2" | 9200 | 12750 | 8/7 | 21/32 | 3-3/8 | 1.75 |
| 5/8" | 12750 | 19000 | 1-1/16 | 25/32 | 4-3/32 | 3.25 |
| 3/4" | 18500 | 27000 | 1-3/8 | 15/16 | 5-5/32 | 5.94 |
MBS=4xWLL

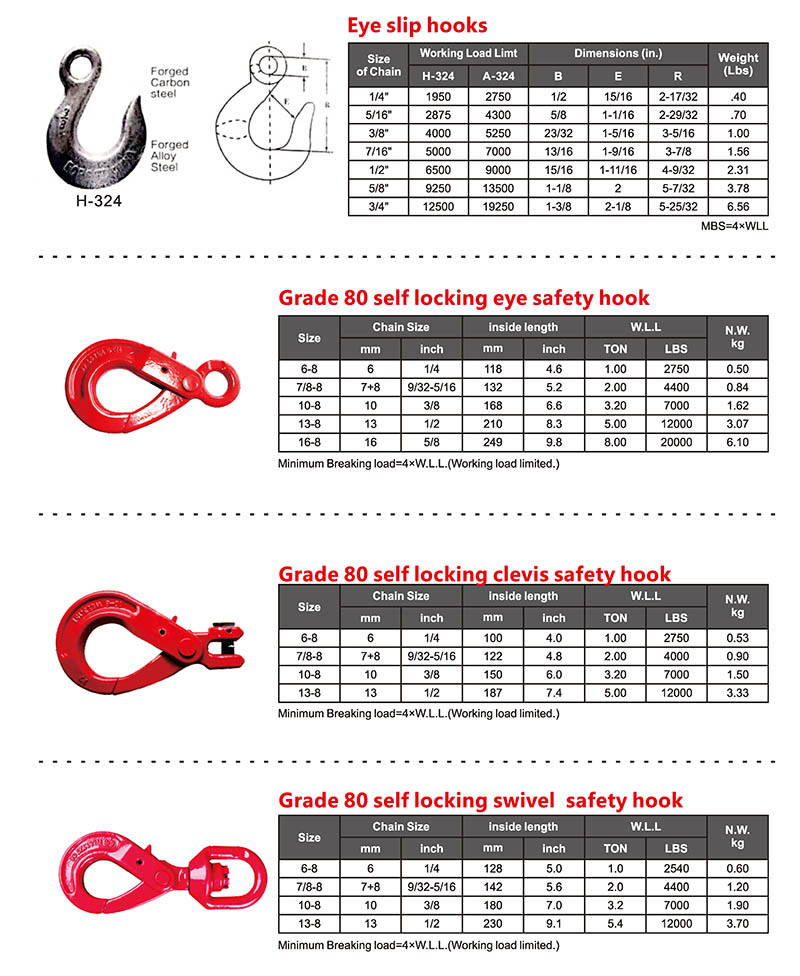

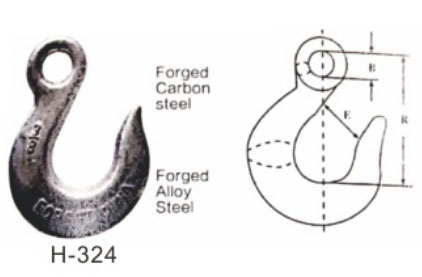

Eye slip hooks
| Size of Chain |
Working Load Limit | Dimensions (in.) | Weight (Lbs) |
|||
| H-324 | A-324 | B | E | R | ||
| 1/4" | 1950 | 2750 | 1/2 | 15/16 | 2-17/32 | 0.40 |
| 5/16" | 2875 | 4300 | 5/8 | 1-1/16 | 2-29/32 | 0.70 |
| 3/8" | 4000 | 5250 | 23/32 | 1-5/16 | 3-5/16 | 1.00 |
| 7/16" | 5000 | 7000 | 13/16 | 1-9/16 | 3-7/8 | 1.56 |
| 1/2" | 6500 | 9000 | 15/16 | 1-11/16 | 4-9/32 | 2.31 |
| 5/8" | 9250 | 13500 | 1-1/8 | 2 | 5-7/32 | 3.78 |
| 3/4" | 12500 | 19250 | 1-3/8 | 2-1/8 | 5-25/32 | 6.56 |
MBS=4xWLL

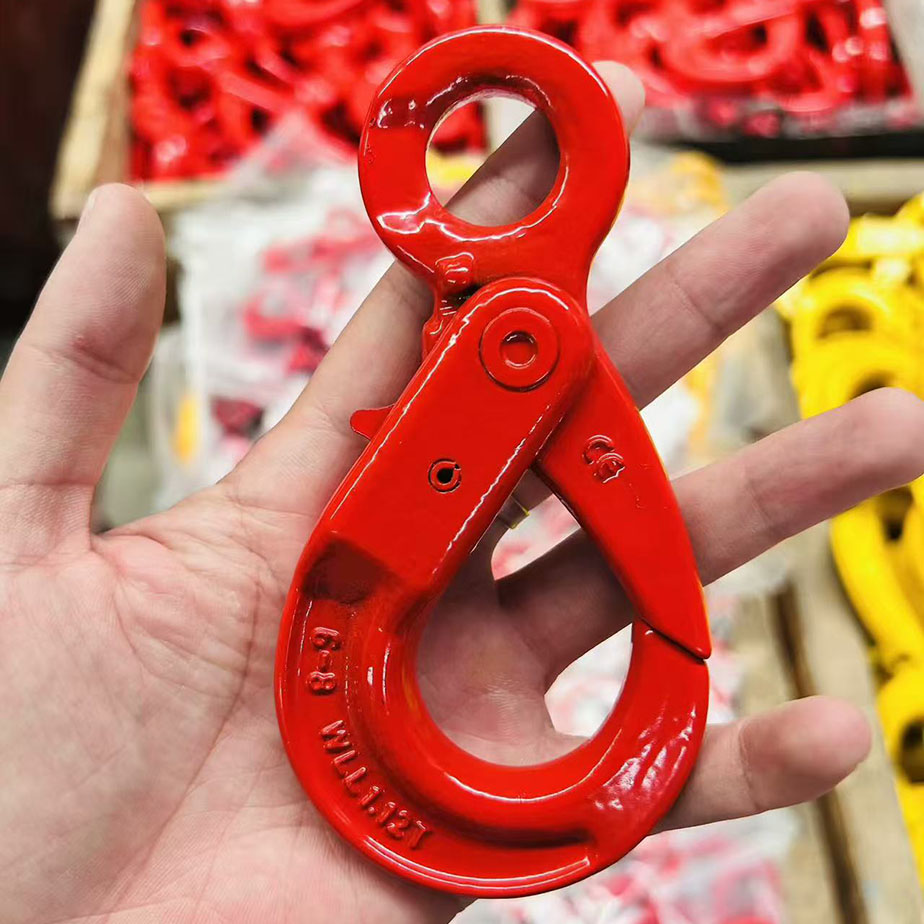

Grade 80 self locking eye safety hook
| Size | Chain Size | inside length | W.L.L | N.W. kg |
|||
| mm | inch | mm | inch | TON | LBS | ||
| 6-8 | 6 | 1/4 | 118 | 4.6 | 1.00 | 2750 | 0.50 |
| 7/8-8 | 7+8 | 9/32-5/16 | 132 | 5.2 | 2.00 | 4400 | 0.84 |
| 10-8 | 10 | 3/8 | 168 | 6.6 | 3.20 | 7000 | 1.62 |
| 13-8 | 13 | 1/2 | 210 | 8.3 | 5.00 | 12000 | 3.07 |
| 16-8 | 16 | 5/8 | 249 | 9.8 | 8.00 | 20000 | 6.10 |
Minimum Breaking load=4xW.L.L.(Working load limited.)
Grade 80 self locking clevis safety hook
| Size | Chain Size | inside length | W.L.L | N.W. kg |
|||
| mm | inch | mm | inch | TON | LBS | ||
| 6-8 | 6 | 1/4 | 100 | 4.0 | 1.00 | 2750 | 0.53 |
| 7/8-8 | 7+8 | 9/32-5/16 | 122 | 4.8 | 2.00 | 4000 | 0.90 |
| 10-8 | 10 | 3/8 | 150 | 6.0 | 3.20 | 7000 | 1.50 |
| 13-8 | 13 | 1/2 | 187 | 7.4 | 5.00 | 12000 | 3.33 |
Minimum Breaking load=4xW.L.L.(Working load limited.)

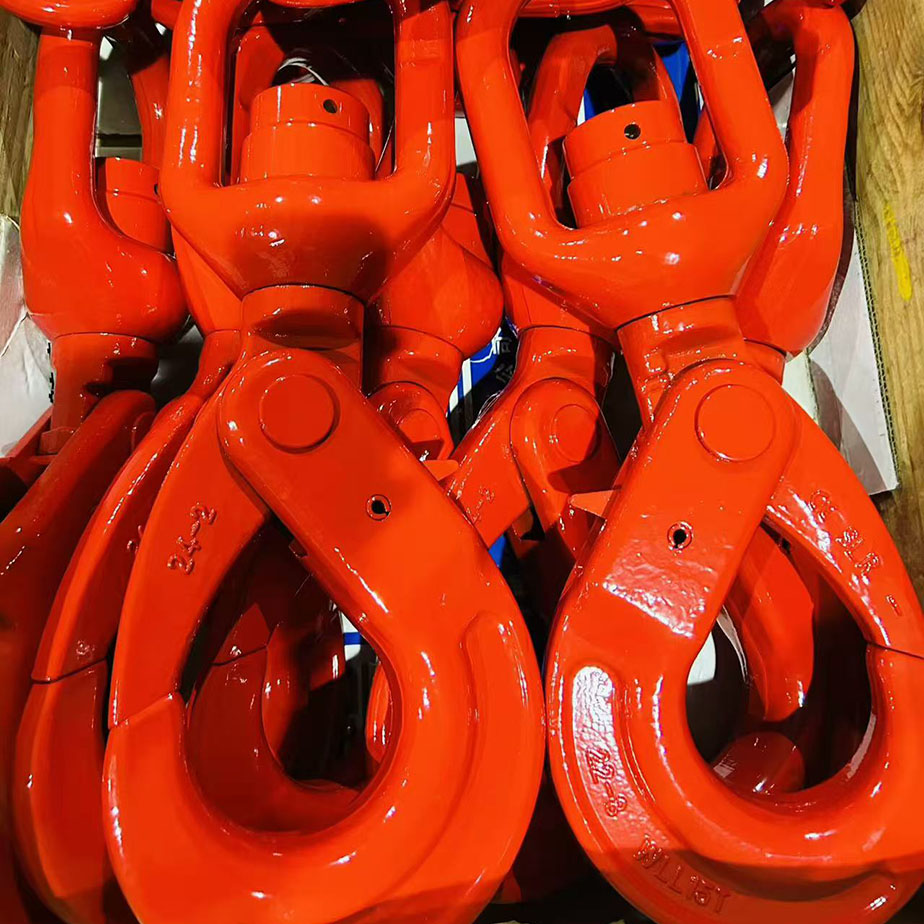

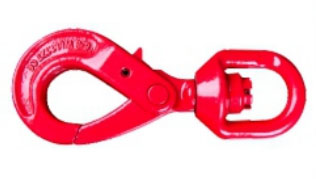

Grade 80 self locking swivel safety hook
| Size | Chain Size | inside length | W.L.L | N.W. kg |
|||
| mm | inch | mm | inch | TON | LBS | ||
| 6-8 | 6 | 1/4 | 128 | 5.0 | 1.0 | 2540 | 0.60 |
| 7/8-8 | 7+8 | 9/32-5/16 | 142 | 5.6 | 2.0 | 4400 | 1.20 |
| 10-8 | 10 | 3/8 | 180 | 7.0 | 3.2 | 7000 | 1.90 |
| 13-8 | 13 | 1/2 | 230 | 9.1 | 5.4 | 12000 | 3.70 |
Minimum Breaking load=4xW.L.L.(Working load limited.)

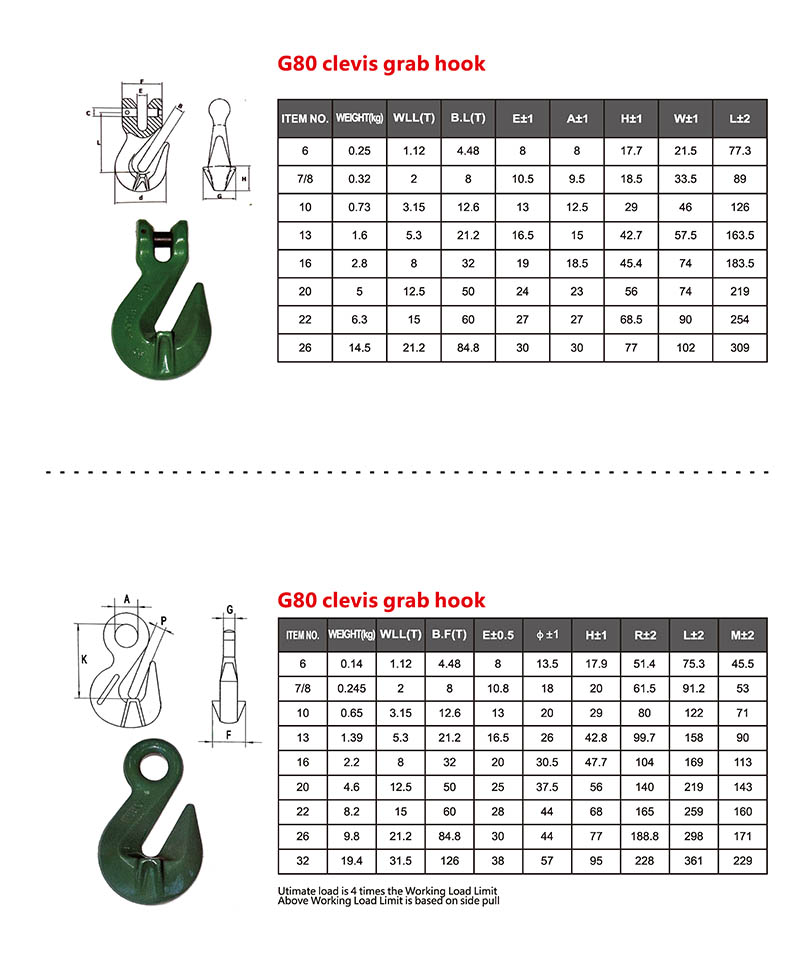

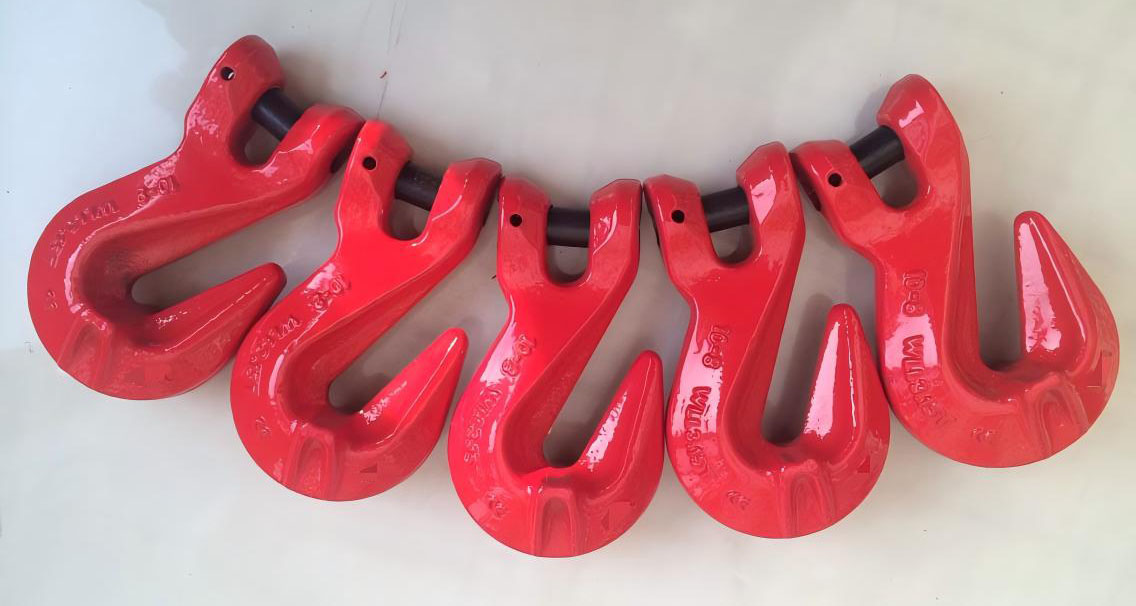

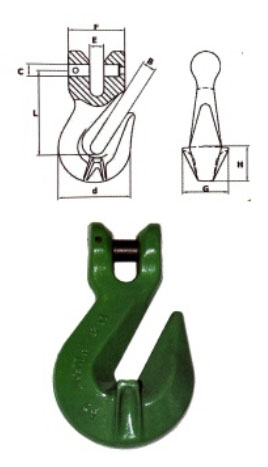

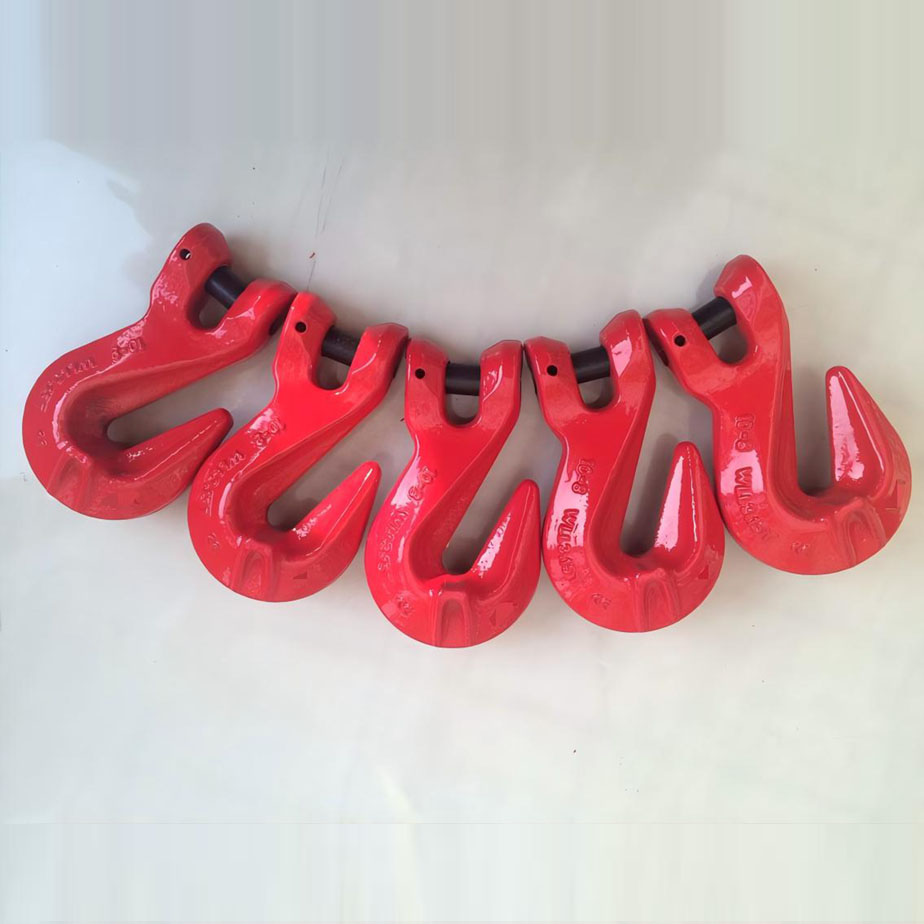

G80 clevis grab hook
| ITEM NO. | WEIGHT(kg) | WLL(T) | B.L(T) | E±1 | A±1 | H±1 | W±1 | L±2 |
| 6 | 0.25 | 1.12 | 4.48 | 8 | 8 | 17.7 | 21.5 | 77.3 |
| 7/8 | 0.32 | 2 | 8 | 10.5 | 9.5 | 18.5 | 33.5 | 89 |
| 10 | 0.73 | 3.15 | 12.6 | 13 | 12.5 | 29 | 46 | 126 |
| 13 | 1.6 | 5.3 | 21.2 | 16.5 | 15 | 42.7 | 57.5 | 163.5 |
| 16 | 2.8 | 8 | 32 | 19 | 18.5 | 45.4 | 74 | 183.5 |
| 20 | 5 | 12.5 | 50 | 24 | 23 | 56 | 74 | 219 |
| 22 | 6.3 | 15 | 60 | 27 | 27 | 68.5 | 90 | 254 |
| 26 | 14.5 | 21.2 | 84.8 | 30 | 30 | 77 | 102 | 309 |

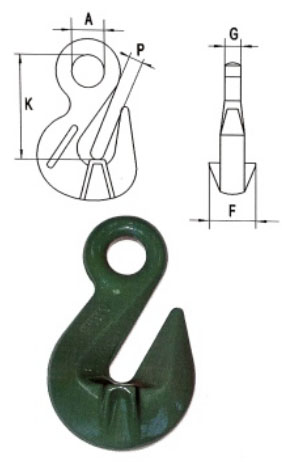

G80 clevis grab hook
| ITEM NO. | WEIGHT(kg) | WLL(T) | B.F(T) | E±0.5 | φ ±1 | H±1 | R±2 | L±2 | M±2 |
| 6 | 0.14 | 1.12 | 4.48 | 8 | 13.5 | 17.9 | 51.4 | 75.3 | 45.5 |
| 7/8 | 0.245 | 2 | 8 | 10.8 | 18 | 20 | 61.5 | 91.2 | 53 |
| 10 | 0.65 | 3.15 | 12.6 | 13 | 20 | 29 | 80 | 122 | 71 |
| 13 | 1.39 | 5.3 | 21.2 | 16.5 | 26 | 42.8 | 99.7 | 158 | 90 |
| 16 | 2.2 | 8 | 32 | 20 | 30.5 | 47.7 | 104 | 169 | 113 |
| 20 | 4.6 | 12.5 | 50 | 25 | 37.5 | 56 | 140 | 219 | 143 |
| 22 | 8.2 | 15 | 60 | 28 | 44 | 68 | 165 | 259 | 160 |
| 26 | 9.8 | 21.2 | 84.8 | 30 | 44 | 77 | 188.8 | 298 | 171 |
| 32 | 19.4 | 31.5 | 126 | 38 | 57 | 95 | 228 | 361 | 229 |
Utimate load is 4 times the Working Load Limit.
Above Working Load Limit is based on side pull
Product Description
This forged super alloy steel component is quenched and tempered for high strength and toughness, making it ideal for use with EN818-2 Grade 80 chains. Each unit is proof-tested at 2.5 times the working load limit and 100% magnaflux crack detected to ensure reliability. Fatigue testing is performed at 1.5 times the working load limit for 20,000 cycles, and batch sampling includes rigorous breakage tests. The surface is finished with powder plastification for enhanced durability and corrosion resistance.
