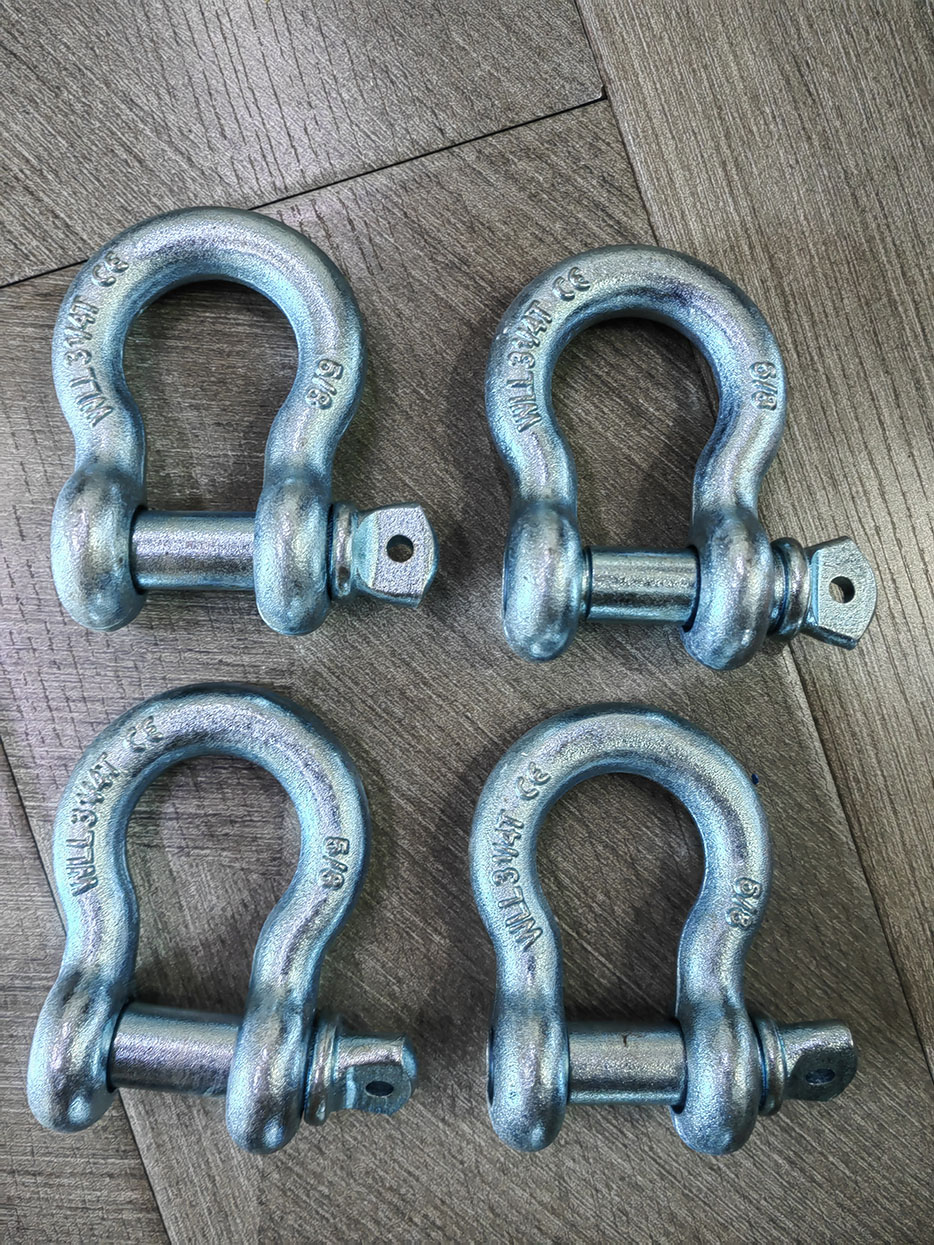

Crosby G-209 / S-209 Screw Pin Anchor Shackles

Product Crosby G-209 / S-209 Screw Pin Anchor Shackles
Size 2-32mm
Test Individully Proof Tested
Finish Oxygenation、Electric Galv、Zinc White、Bright finishing
Material Q235 Material carbon steel

  • Product Description

· Capacities 1/3 thru 55 metric tons, grade 6.
· Forged - Quenched and Tempered, with alloy pins.
· Working Load Limit and grade “6” permanently shown on every shackle.
· Sizes 7/16 inch and above are hot dip galvanized.
· Sizes 3/8 inch and below are mechanically galvanized.
· Fatigue rated.
· Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certification. Proof testing and certification available when requested at the time of order, charges will apply.
· Approved for use at -40° C (-40° F) to 204° C (400° F).
· Can meet charpy requirements of 42 Joules(31 ft•lbf) avg. at -20° C (-4° F) upon special request.
· Meets or exceeds all requirements of ASME B30.26.
· Type Approval certification in accordance with ABS 2016 Steel Vessel Rules and ABS Guide for Certification of Lifting Appliances available. Certificates available when requested at time of order and may include additional charges.
· Look for the Red Pin®. . . the mark of genuine Crosby quality.
· Meets the performance requirements of Federal Specification RR-C-271G, Type IVA, Grade A, Class 2, except for those provisions required of the contractor.
· Maximum Proof Load is 2 times the Working Load Limit. Minimum Ultimate Strength is 6 times the Working Load Limit.

Nominal
Size
(in.)		 Working
Load
Limit
(tons)		 Dimensions(in.) Weight Each
(1bs)

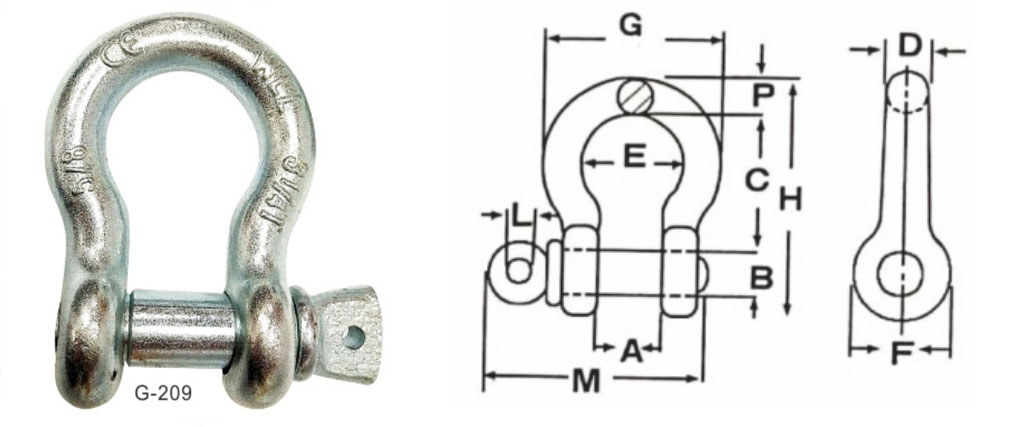

A B C D E F G H L M N P G-209
S-209		 G-213
S-213
3/16 1/3 .38 .25 .88 .19 .60 .56 .98 1.47 .16 1.12 — .19 .05 —
1/4 1/2 .47 .31 1.13 .25 .78 .61 1.28 1.84 .19 1.38 1.34 .25 .12 .13
5/16 3/4 .53 .39 1.22 .31 .84 .75 1.47 2.09 .22 1.66 1.59 .31 .19 .17
3/8 1 .66 .44 1.44 .38 1.03 .91 1.78 2.49 .25 2.03 1.86 .38 .31 .25
7/16 1 1/2 .75 .50 1.69 .44 1.16 1.06 2.03 2.91 .31 2.38 2.13 .44 .38 .38
1/2 2 .81 .63 1.88 .50 1.31 1.19 2.31 3.28 .38 2.69 2.38 .50 .63 .70
5/8 3 1/4 1.06 .75 2.38 .63 1.69 1.50 2.94 4.19 .44 3.34 2.91 .69 1.38 1.05
3/4 4 3/4 1.25 .88 2.81 .75 2.00 1.81 3.50 4.97 .50 3.97 3.44 .81 2.25 2.32
7/8 6 1/2 1.44 1.00 3.31 .88 2.28 1.09 4.03 5.83 .50 4.50 3.81 .97 3.38 3.40
1 8 1/2 1.69 1.13 3.75 1.00 2.69 2.38 4.69 6.56 .56 5.07 4.53 1.06 5.32 5.00
1 1/8 9 1/2 1.81 1.25 4.25 1.16 2.91 2.69 5.16 7.47 .63 5.59 5.13 1.25 6.81 6.97
1 1/4 12 2.03 1.38 4.69 1.29 3.25 3.00 5.75 8.25 .69 6.16 5.50 1.38 9.50 9.75
1 3/8 13 1/2 2.25 1.50 5.25 1.42 3.63 3.31 6.38 9.16 .75 6.84 6.13 1.50 13.25 13.25
1 1/2 17 2.38 1.63 5.75 1.54 3.88 3.63 6.88 10.00 .81 7.35 6.50 1.62 17.20 17.25
1 3/4 25 2.88 2.00 7.00 1.84 5.00 4.19 8.86 12.34 1.00 9.08 7.75 2.25 30.38 29.46
2 35 3.28 3.25 7.75 2.08 5.75 4.81 9.97 13.68 1.22 10.34 8.75 2.40 45.00 45.75
2 1/2 55 4.13 2.75 10.50 2.71 7.25 5.69 12.87 17.84 1.38 13.00 -- 3.13 85.75 --

Note: Drop forged, Quenched and Tempered, With alloy pins.
Max proof load is 2.2 times the working load limit, Min break strength is 6 times WLL.

Brief Introduction of product range:

Mainly businesses
· Rigging hardware
· G80 lifting accessories
· Cargo lashing and lifting.

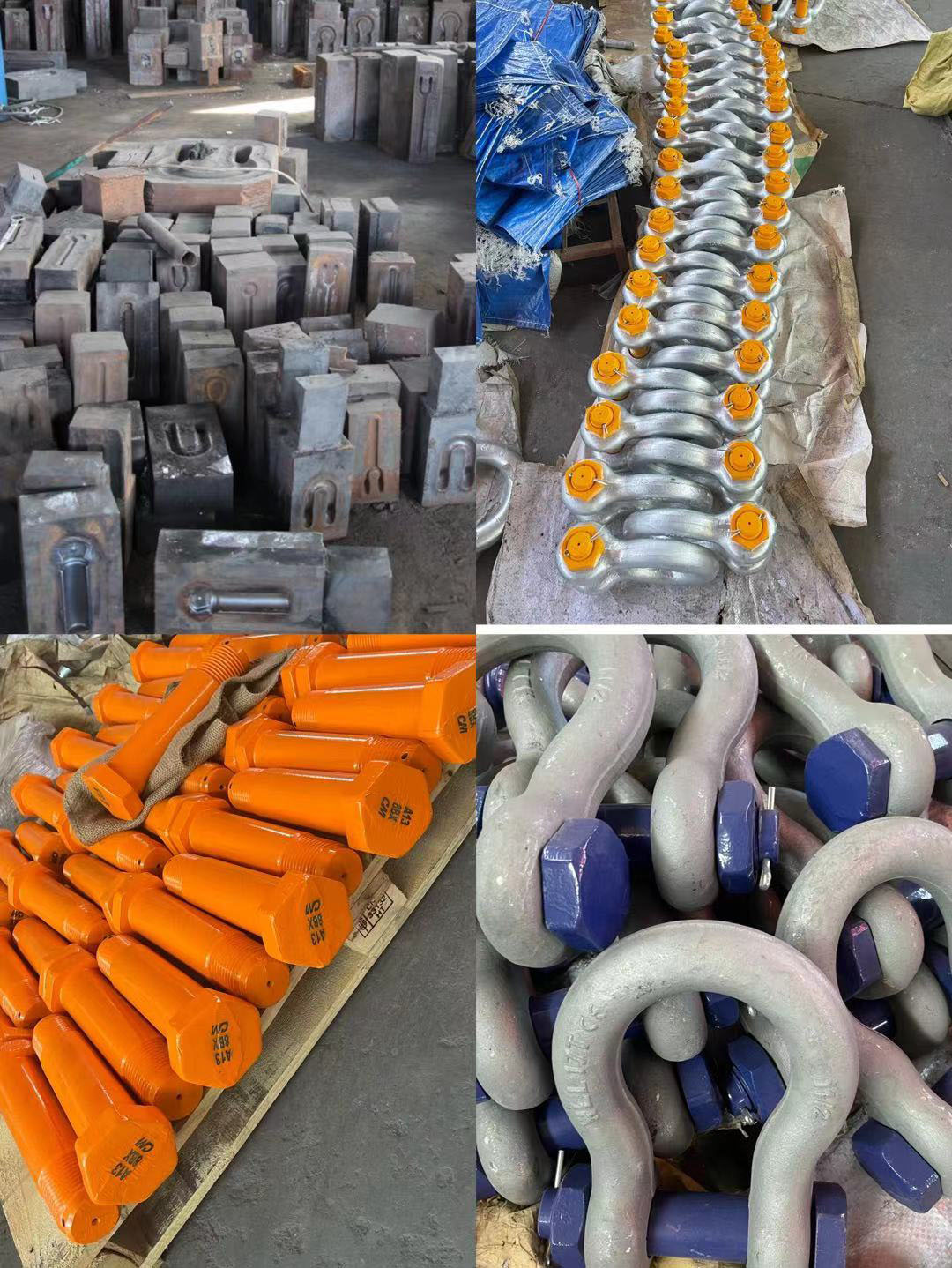

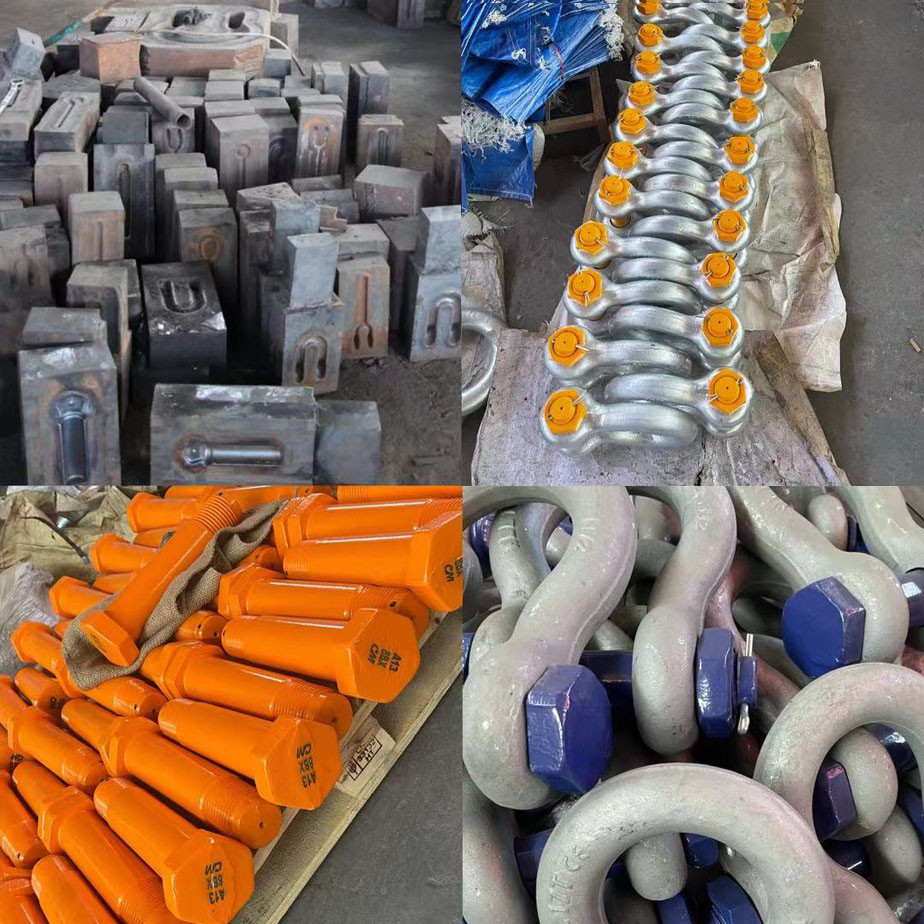

We have 1000T,630T, 400T forging machines, serveral sets of automatic machining devices, and follow ISO9001:2000. In the laboratory there are testing machines of 600T horizontal & 100T vertical testing machines, as well as other necessary devices like hardness machine, or chemical analysis, ets.
It's important to keep promise of good quality and guaranteed delivery. More importantly, we try to think standing by the customer's position.
Therefore, we've acquired good reputation from the customers, our company has been serving over 20 countries.
