One Leg Chain Slings
| Product | One Leg Chain Slings Grade 80 lifting chain slings |
| Material | High quality alloy steel |
| WLL | 1ton - 36ton |
| Function | Chain sling, lifting chains, master link, eye hook, shackles, connecting link. |
- Product Description
One Leg Chain Slings
The parameter of chain in the tablo is in accordance with JB/T810B.1-1999
Grade(8)
The teminal uses the chain link with the shackie.lls advantageous for thecustomer to combine at wll Terminal may be hook,link and shackle.
| Diameter of the chain (mm) |
WLL (t) |

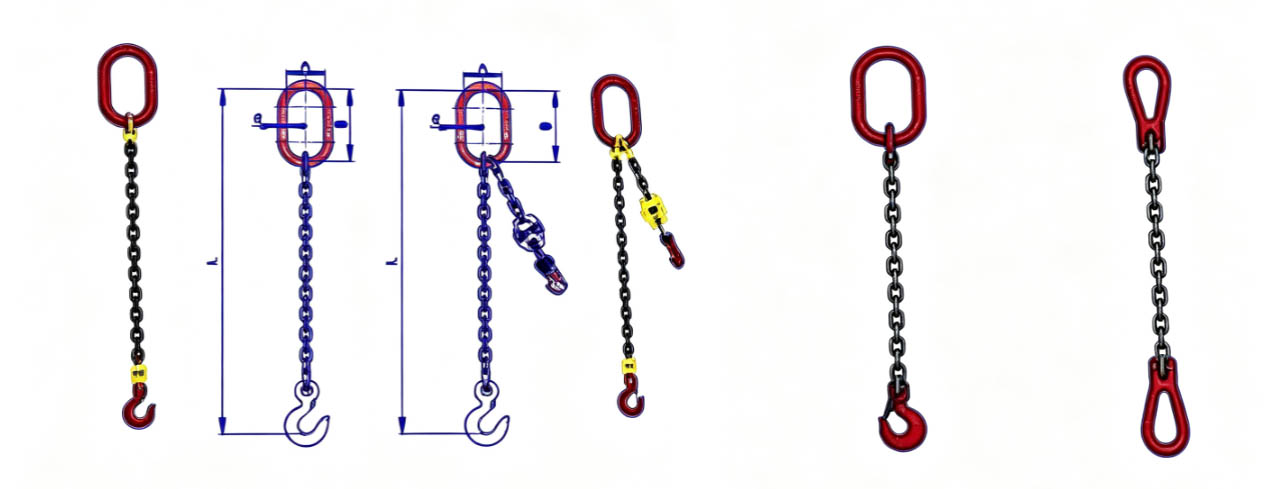

Master link A×B×d(mm) |
Weight/m (kg/m) |
Chain weight (kg) |
| 6.00 | 1.00 | 65×130×12 | 1.88 | 0.79 |
| 8.00 | 1.50 | 65×130×16 | 3.07 | 1.38 |
| 10.0 | 2.50 | 80×150×20 | 5.96 | 2.20 |
| 12.0 | 3.50 | 90×160×24 | 9.03 | 3.10 |
| 14.0 | 5.00 | 90×160×24 | 10.09 | 4.13 |
| 16.0 | 6.00 | 100×190×28 | 14.25 | 5.63 |
| 18.0 | 8.00 | 100×190×28 | 15.31 | 6.85 |
| 20.0 | 10.0 | 110×200×32 | 18.96 | 8.60 |
| 22.0 | 12.0 | 120×230×34 | 35.51 | 10.2 |
| 24.0 | 14.0 | 135×250×38 | 39.25 | 12.78 |
| 26.0 | 17.0 | 140×270×42 | 65.28 | 14.87 |
| 30.0 | 22.0 | 160×310×46 | 69.65 | 19.6 |
| 34.0 | 36.0 | 180×330×56 | 78.73 | 22.7 |
Product Description

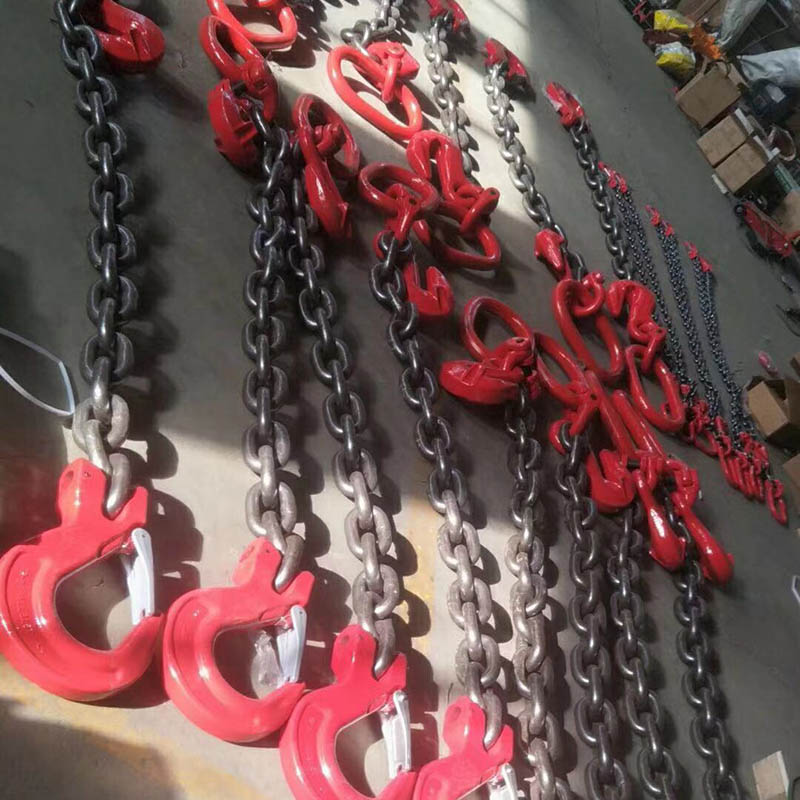

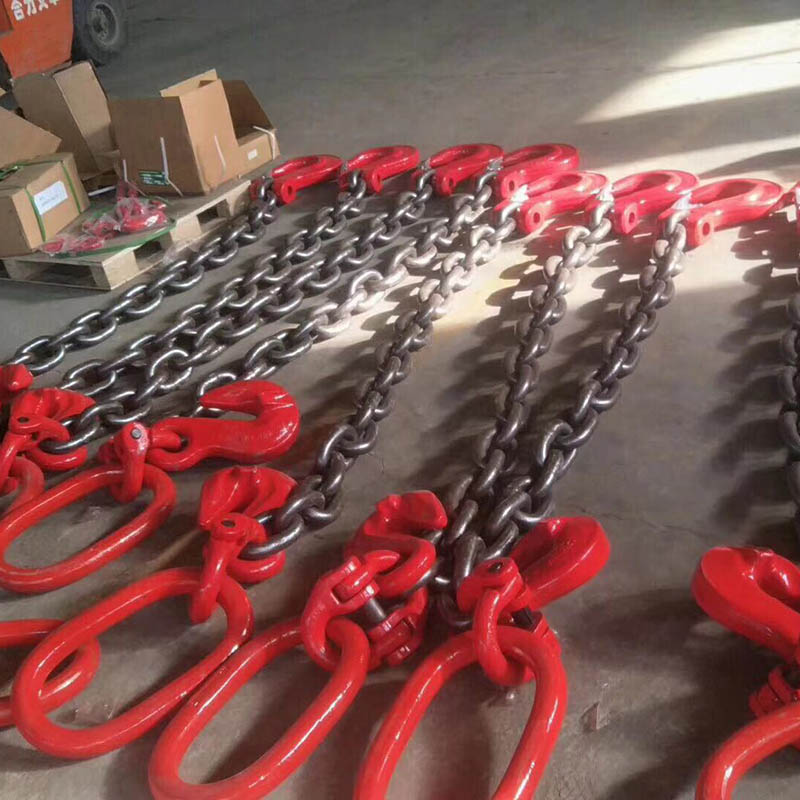

Our single leg chain slings are manufactured strictly complying with JB/T810B.1-1999 industry standard, constructed from Grade 80 high-strength alloy steel lifting chain for heavy industrial overhead lifting applications. This single leg sling features flexible configurable end terminals. The top master link connects with lifting chain via shackles, allowing customers to freely match different bottom fittings as required — standard options include lifting hooks, connecting links and shackles to suit various hoisting scenarios.
Key Features

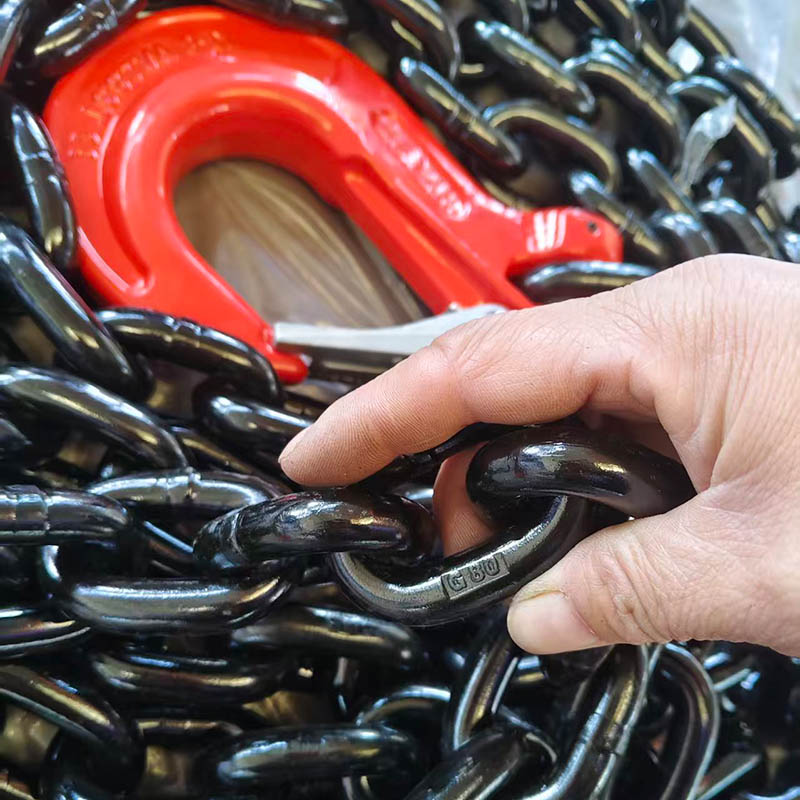

1. Standard Grade 80 alloy steel short link chain, reliable working load limit covering 1 ton to 36 tons
2. Complete size series: chain diameter from 6mm up to 34mm with matched master link dimensions listed for each specification
3. Every sling undergoes mandatory proof load testing to guarantee lifting safety with standard safety factor
4. Multiple terminal combinations available: single lifting hook type, full lifting chain type, connecting link type for diverse lifting demands
5. Compact structure, high wear resistance and long service life for factory, construction, machinery installation and mold hoisting
