G70 High test chain ASTM1980
| Product | G70 High test Transport chain ASTM1980 |
| Material | Alloy steel |
| Size | 1/4’’, 5/16’’, 3/8’’, 1/2’’ |
| Finish | Yellow electro-galvanized |
- Product Description

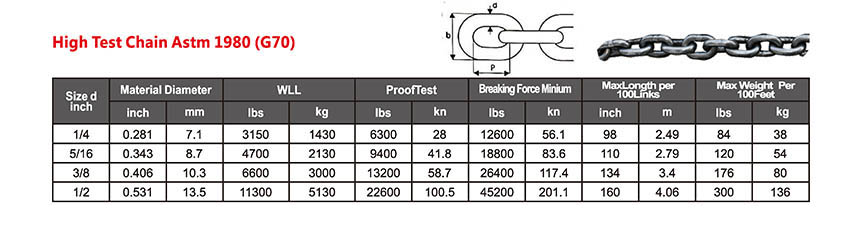

High Test Chain Astm 1980 (G70)

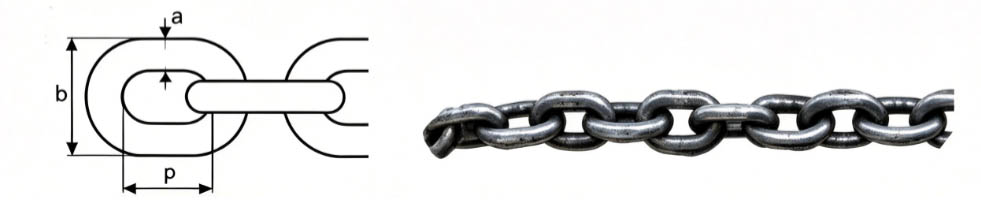

| Size d inch |
Material Diameter | WLL | Proof Test | Breaking Force Minimum | Max Length per 100 Links | Max Weight Per 100 Feet | ||||||
| inch | mm | lbs | kg | lbs | kn | lbs | kn | inch | m | lbs | kg | |
| 1/4 | 0.281 | 7.1 | 3150 | 1430 | 6300 | 28 | 12600 | 56.1 | 98 | 2.49 | 84 | 38 |
| 5/16 | 0.343 | 8.7 | 4700 | 2130 | 9400 | 41.8 | 18800 | 83.6 | 110 | 2.79 | 120 | 54 |
| 3/8 | 0.406 | 10.3 | 6600 | 3000 | 13200 | 58.7 | 26400 | 117.4 | 134 | 3.4 | 176 | 80 |
| 1/2 | 0.531 | 13.5 | 11300 | 5130 | 22600 | 100.5 | 45200 | 201.1 | 160 | 4.06 | 300 | 136 |
Product Description
Grade 70 high test chain to ASTM A1980 & NACM96 standards, specially for cargo securement and towing use (NOT for overhead lifting).

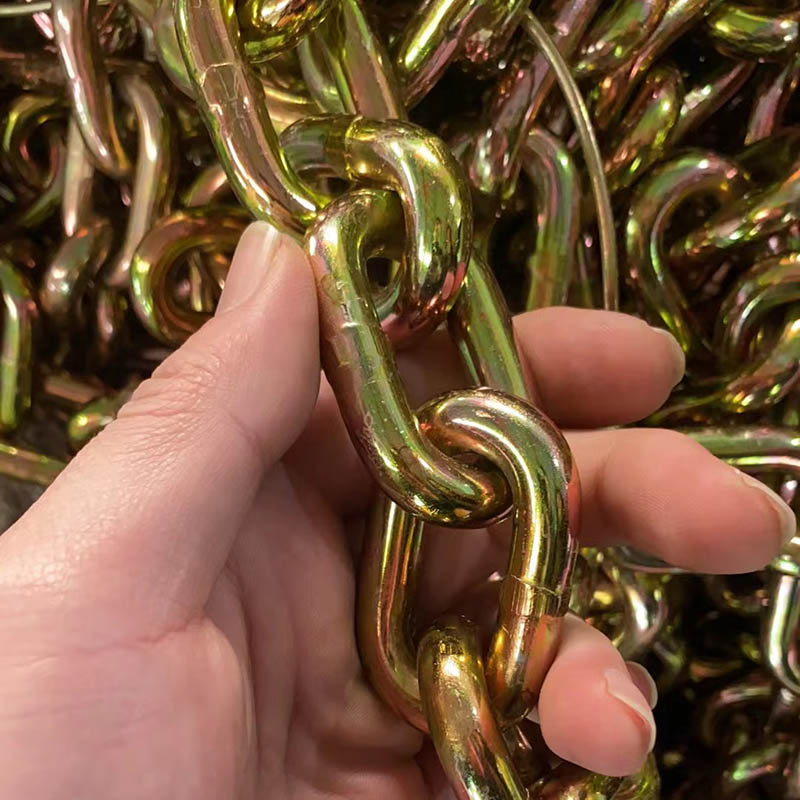

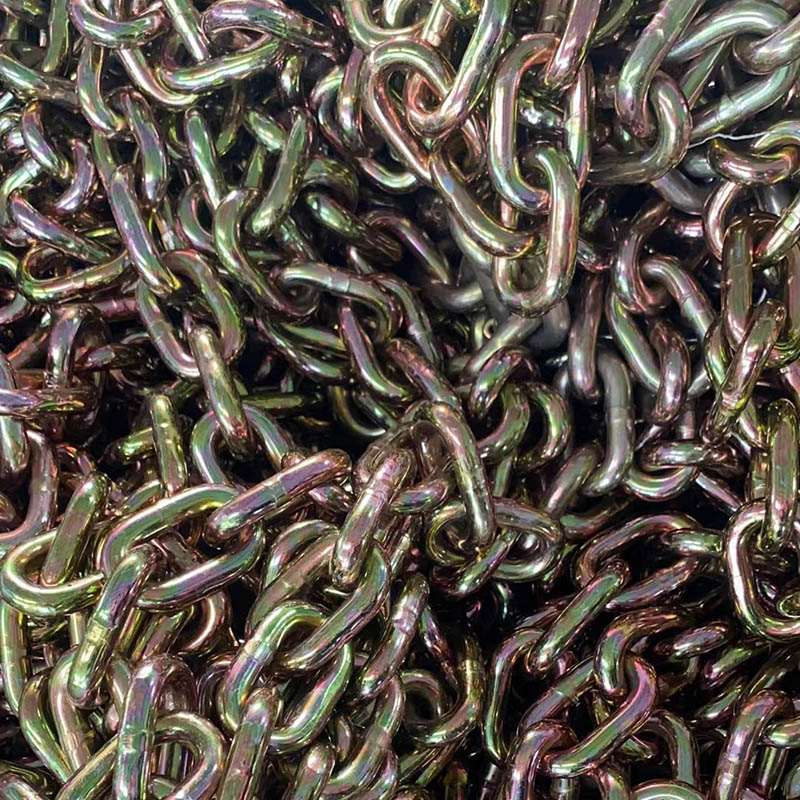

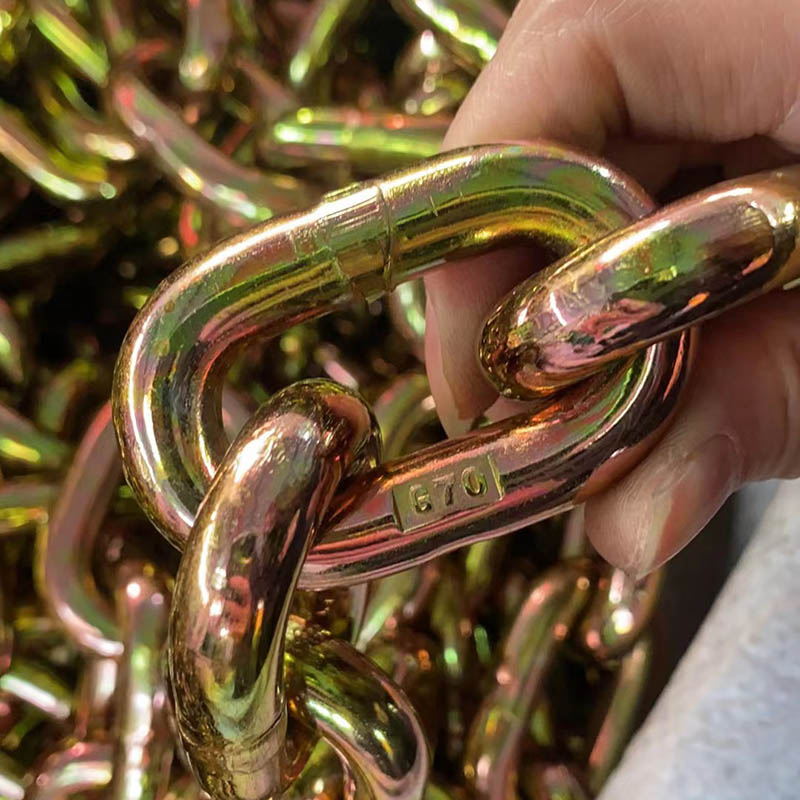

Crafted from heat-treated alloy steel with automatic welded links, it provides 20% higher load capacity than Grade 43 chain. Standard yellow electro-galvanized finish for anti-corrosion and quick identification.

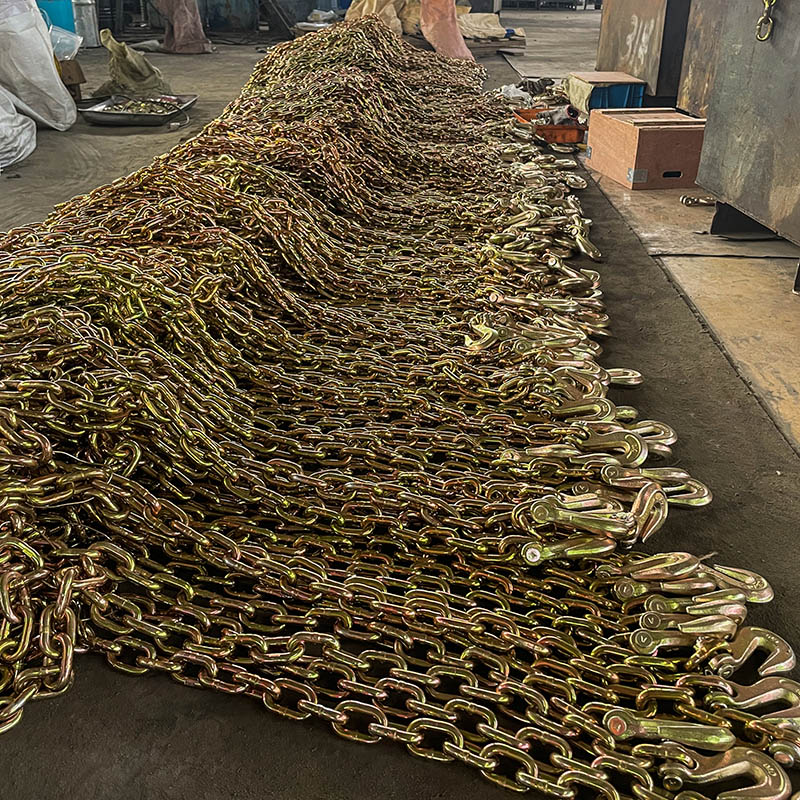

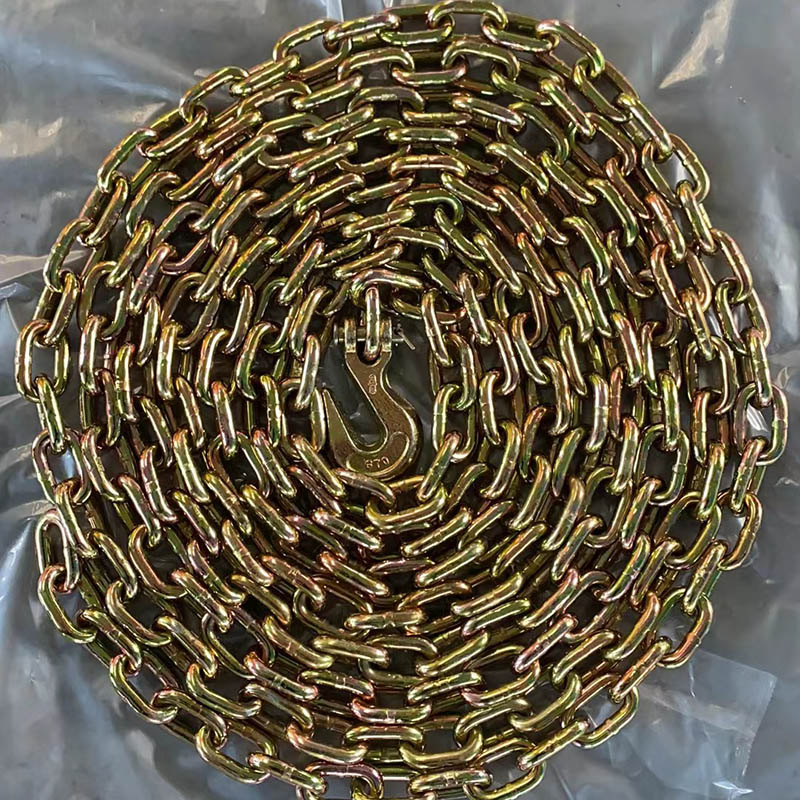

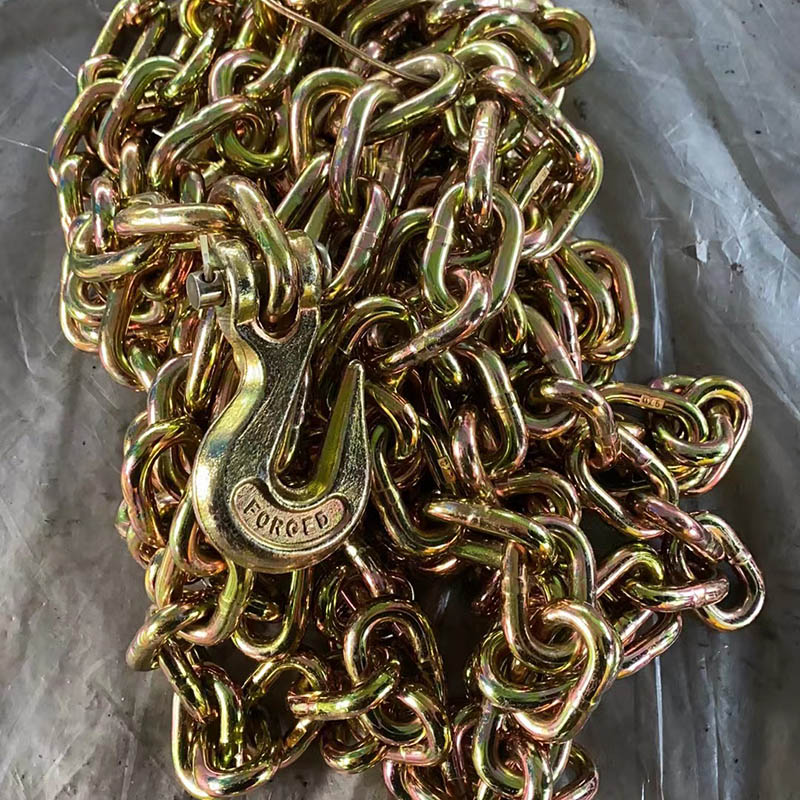

All chains pass 2x WLL proof test with safety factor ≥3.5. Full sizes 1/4"–3/4" available, we supply loose chain or finished assemblies with grab hooks, binders and connecting links. Perfect for US trucking, logistics, construction and marine lashing.
Brief Introduction of product range:
Dear Customers and Friends
Sipower is a raising brand for Marine Servi ces, and it's agreat honor to introduce you the updated version of ourproduct catalogue.
Marine products and services cover:
* Lashing equi pment
* Lifting equi pment and enginneering
* Rigging gear
* Physical Iashing/welding servi ce on board.
Besides, we could provide one-stop service wi th othermarine accessories, or some consumption for the varietyof vessel s, ship owners and Iogistics parti ci pants.
