G30 High test chain ASTM1990
| Product | G30 High test chain ASTM1990 |
| Size | 1/4",5/16",3/8",7/16",1/2 |
| Material | high-quality alloy steel. |
| Function | transport chains, metal link chains,rigging hardware,welded chains,lashing chains. |
- Product Description
Name: G30 High test chain ASTM1990
Brand name: Sipower Rigging
Size: 1/4",5/16",3/8",7/16",1/2
Material: high-quality alloy steel.
Surface treatment: Electro. Galv. In Yellow/White;
Function: transport chains, metal link chains,rigging hardware,welded chains,lashing chains.
Contact us: info@sipowerinternational.com

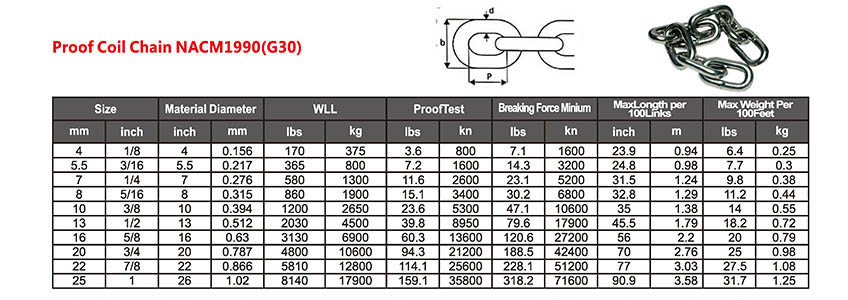

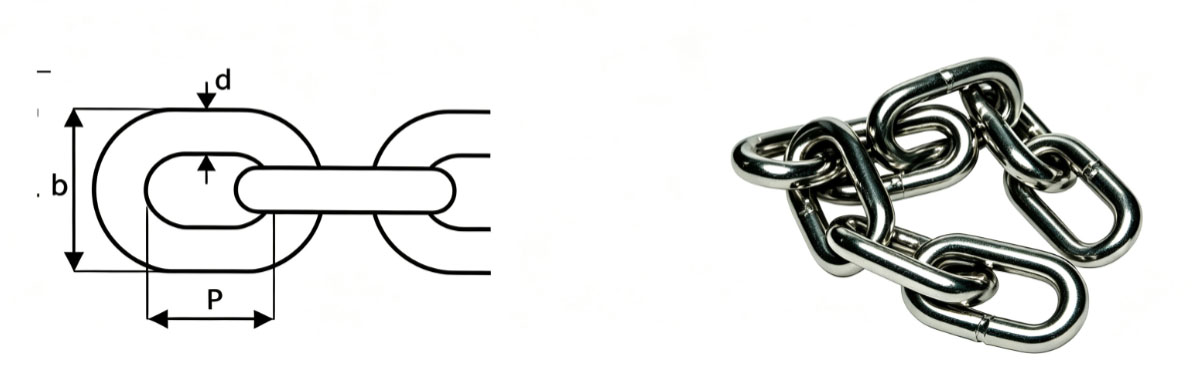

Proof Coil Chain NACM1990(G30)
| Size | Material Diameter | WLL | Proof Test | Breaking Force Minimum | Max Length per 100 Links | Max Weight Per 100 Feet | |||||||
| mm | inch | inch | mm | kg | lbs | kn | lbs | kn | lbs | inch | m | lbs | kg |
| 4 | 1/8 | 4 | 0.156 | 170 | 375 | 3.6 | 800 | 7.1 | 1600 | 23.9 | 0.94 | 6.4 | 0.25 |
| 5.5 | 3/16 | 5.5 | 0.217 | 365 | 800 | 7.2 | 1600 | 14.3 | 3200 | 24.8 | 0.98 | 7.7 | 0.3 |
| 7 | 1/4 | 7 | 0.276 | 580 | 1300 | 11.6 | 2600 | 23.1 | 5200 | 31.5 | 1.24 | 9.8 | 0.38 |
| 8 | 5/16 | 8 | 0.315 | 860 | 1900 | 15.1 | 3400 | 30.2 | 6800 | 32.8 | 1.29 | 11.2 | 0.44 |
| 10 | 3/8 | 10 | 0.394 | 1200 | 2650 | 23.6 | 5300 | 47.1 | 10600 | 35 | 1.38 | 14 | 0.55 |
| 13 | 1/2 | 13 | 0.512 | 2030 | 4500 | 39.8 | 8950 | 79.6 | 17900 | 45.5 | 1.79 | 18.2 | 0.72 |
| 16 | 5/8 | 16 | 0.63 | 3130 | 6900 | 60.3 | 13600 | 120.6 | 27200 | 56 | 2.2 | 20 | 0.79 |
| 20 | 3/4 | 20 | 0.787 | 4800 | 10600 | 94.3 | 21200 | 188.5 | 42400 | 70 | 2.76 | 25 | 0.98 |
| 22 | 7/8 | 22 | 0.866 | 5810 | 12800 | 114.1 | 25600 | 228.1 | 51200 | 77 | 3.03 | 27.5 | 1.08 |
| 25 | 1 | 26 | 1.02 | 8140 | 17900 | 159.1 | 35800 | 318.2 | 71600 | 90.9 | 3.58 | 31.7 | 1.25 |
Brief Introduction of product range:
Dear Customers and Friends
Sipower is a raising brand for Marine Servi ces, and it's agreat honor to introduce you the updated version of ourproduct catalogue.
Marine products and services cover:
* Lashing equi pment
* Lifting equi pment and enginneering
* Rigging gear
* Physical Iashing/welding servi ce on board.
Besides, we could provide one-stop service wi th othermarine accessories, or some consumption for the varietyof vessel s, ship owners and Iogistics parti ci pants.
