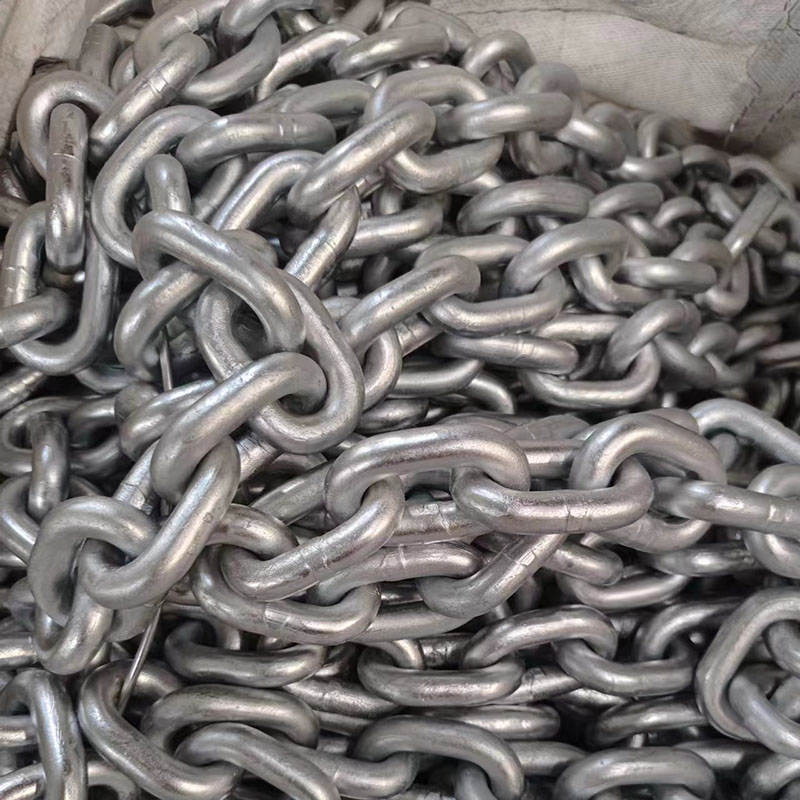

DIN766 Short Link Chain

Product DIN766 short link chain
Material Q235B, stainless steel
Size 2mm - 32mm
Finish Self-color, polishing, plastic coating, electro-galvanized, hot-dip galvanized. etc.

  • Product Description

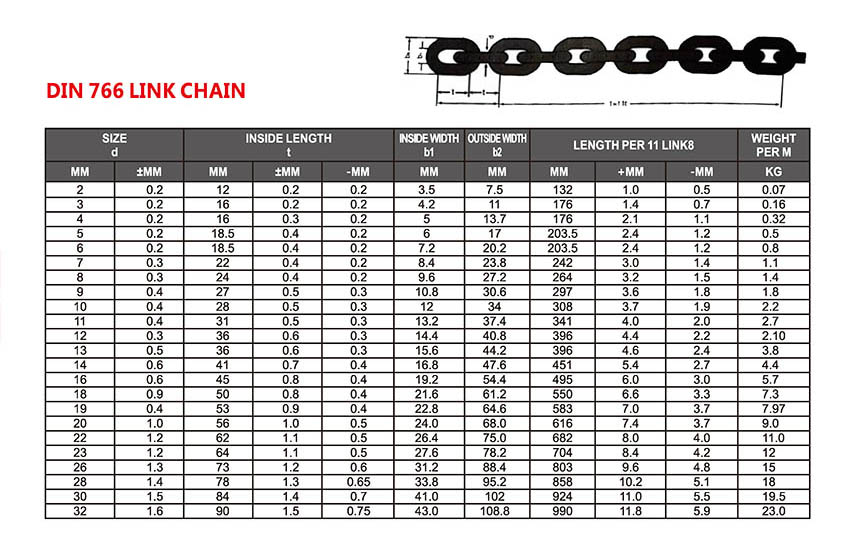

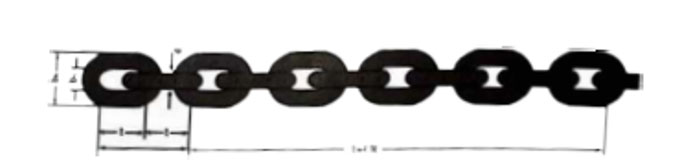

SIZE d INSIDE LENGTH t INSIDE WIDTH b1 OUTSIDE WIDTH b2 LENGTH PER 11 LINKS WEIGHT PER M
MM ±MM MM ±MM -MM MM MM MM +MM -MM KG
2 0.2 12 0.2 0.2 3.5 7.5 132 1.0 0.5 0.07
3 0.2 16 0.2 0.2 4.2 11 176 1.4 0.7 0.16
4 0.2 16 0.3 0.2 5 13.7 176 2.1 1.1 0.32
5 0.2 18.5 0.4 0.2 6 17 203.5 2.4 1.2 0.5
6 0.2 18.5 0.4 0.2 7.2 20.2 203.5 2.4 1.2 0.8
7 0.3 22 0.4 0.2 8.4 23.8 242 3.0 1.4 1.1
8 0.3 24 0.4 0.2 9.6 27.2 264 3.2 1.5 1.4
9 0.4 27 0.5 0.3 10.8 30.6 297 3.6 1.8 1.8
10 0.4 28 0.5 0.3 12 34 308 3.7 1.9 2.2
11 0.4 31 0.5 0.3 13.2 37.4 341 4.0 2.0 2.7
12 0.3 36 0.6 0.3 14.4 40.8 396 4.4 2.2 2.10
13 0.5 36 0.6 0.3 15.6 44.2 396 4.6 2.4 3.8
14 0.6 41 0.7 0.4 16.8 47.6 451 5.4 2.7 4.4
16 0.6 45 0.8 0.4 19.2 54.4 495 6.0 3.0 5.7
18 0.9 50 0.8 0.4 21.6 61.2 550 6.6 3.3 7.3
19 0.4 53 0.9 0.4 22.8 64.6 583 7.0 3.7 7.97
20 1.0 56 1.0 0.5 24.0 68.0 616 7.4 3.7 9.0
22 1.2 62 1.1 0.5 26.4 75.0 682 8.0 4.0 11.0
23 1.2 64 1.1 0.5 27.6 78.2 704 8.4 4.2 12
26 1.3 73 1.2 0.6 31.2 88.4 803 9.6 4.8 15
28 1.4 78 1.3 0.65 33.8 95.2 858 10.2 5.1 18
30 1.5 84 1.4 0.7 41.0 102 924 11.0 5.5 19.5
32 1.6 90 1.5 0.75 43.0 108.8 990 11.8 5.9 23.0
Product Description:

DIN766 short link chain is a European standard welded steel chain manufactured strictly according to German DIN 766 industrial specifications. Adopting premium high-tensile carbon steel and stainless steel materials, this short-pitch chain features compact structure, high rigidity, smooth flexibility and uniform force bearing. Compared with long-link chains, DIN766 short link chain delivers higher overall strength, better stability and tighter fit, making it ideal for mechanical transmission, mooring anchoring, cargo lashing and general industrial heavy-duty lashing applications.

We supply full DIN766 standard sizes from 2mm to 32mm wire diameter, with customizable cutting lengths as clients’ requirements.

Brief Introduction of product range:

Mainly businesses
· Rigging hardware
· G80 lifting accessories
· Cargo lashing and lifting.

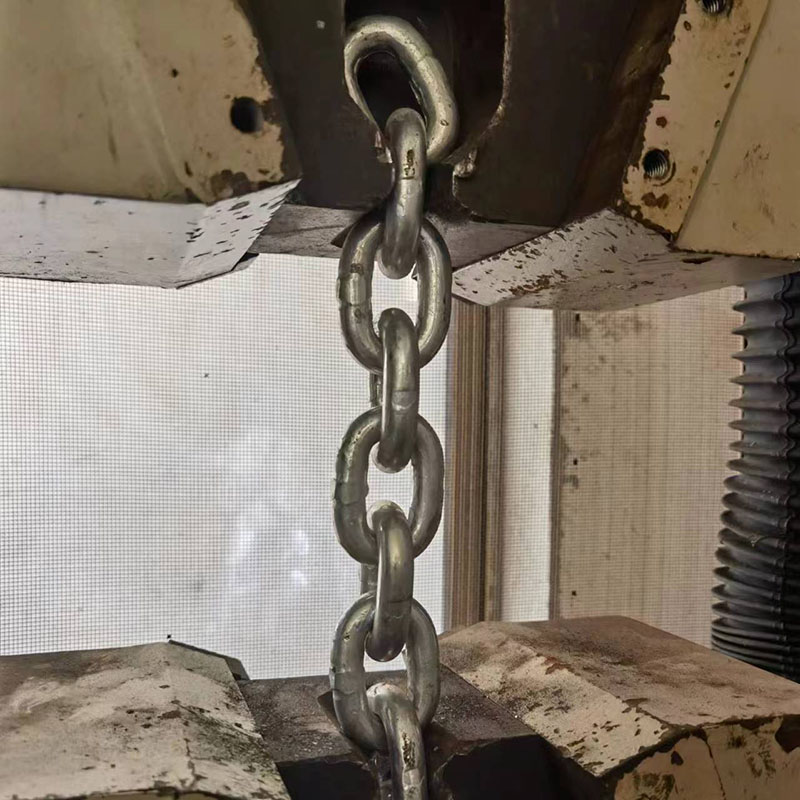

We have 1000T,630T, 400T forging machines, serveral sets of automatic machining devices, and follow ISO9001:2000. In the laboratory there are testing machines of 600T horizontal & 100T vertical testing machines, as well as other necessary devices like hardness machine, or chemical analysis, ets.
It's important to keep promise of good quality and guaranteed delivery. More importantly, we try to think standing by the customer's position.
Therefore, we've acquired good reputation from the customers, our company has been serving over 20 countries.
