DIN764 Link Chain

Product DIN764 Link Chain
Size 2mm - 32mm
Surface treatment Galvanized, self-color, etc.
Function metal link chains,rigging hardware,welded chains,lashing chains.

  • Product Description

Name: DIN764 Link Chain
Brand name: Sipower Rigging
Size: 2mm - 32mm
Surface treatment: Galvanized, self-color, etc.
Function: metal link chains,rigging hardware,welded chains,lashing chains.
Contact us: info@sipowerinternational.com

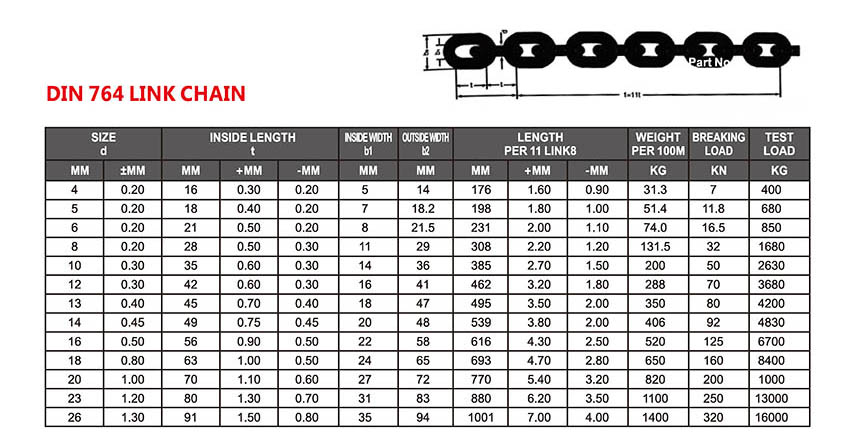

DIN 764 LINK CHAIN

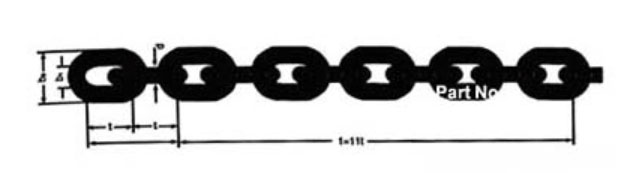

SIZE d INSIDE LENGTH t INSIDE WIDTH b1 OUTSIDE WIDTH b2 LENGTH PER 11 LINKS WEIGHT PER 100M BREAKING LOAD TEST LOAD
MM ±MM MM +MM -MM MM MM MM +MM -MM KG KN KG
4 0.20 16 0.30 0.20 5 14 176 1.60 0.90 31.3 7 400
5 0.20 18 0.40 0.20 7 18.2 198 1.80 1.00 51.4 11.8 680
6 0.20 21 0.50 0.20 8 21.5 231 2.00 1.10 74.0 16.5 850
8 0.20 28 0.50 0.30 11 29 308 2.20 1.20 131.5 32 1680
10 0.30 35 0.60 0.30 14 36 385 2.70 1.50 200 50 2630
12 0.30 42 0.60 0.30 16 41 462 3.20 1.80 288 70 3680
13 0.40 45 0.70 0.40 18 47 495 3.50 2.00 350 80 4200
14 0.45 49 0.75 0.45 20 48 539 3.80 2.00 406 92 4830
16 0.50 56 0.90 0.50 22 58 616 4.30 2.50 520 125 6700
18 0.80 63 1.00 0.50 24 65 693 4.70 2.80 650 160 8400
20 1.00 70 1.10 0.60 27 72 770 5.40 3.20 820 200 10000
23 1.20 80 1.30 0.70 31 83 880 6.20 3.50 1100 250 13000
26 1.30 91 1.50 0.80 35 94 1001 7.00 4.00 1400 320 16000
Brief Introduction of product range:

Dear Customers and Friends
Sipower is a raising brand for Marine Servi ces, and it's agreat honor to introduce you the updated version of ourproduct catalogue.
Marine products and services cover:
* Lashing equi pment
* Lifting equi pment and enginneering
* Rigging gear
* Physical Iashing/welding servi ce on board.
Besides, we could provide one-stop service wi th othermarine accessories, or some consumption for the varietyof vessel s, ship owners and Iogistics parti ci pants.
