DIN763 Long Link Chain

Product DIN763 Long Link Chain
Material Q235B
Finish Self-color, polishing, plastic coating, electro-galvanized, hot-dip galvanized. etc.

  • Product Description

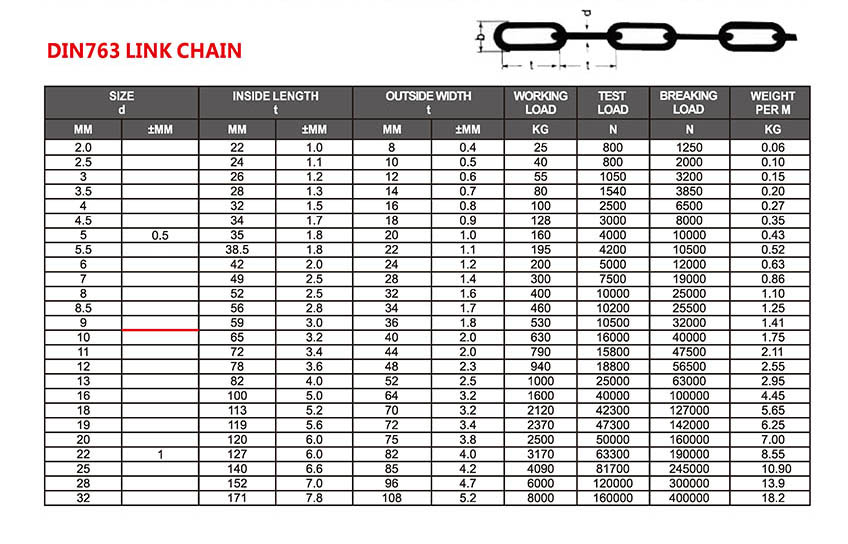

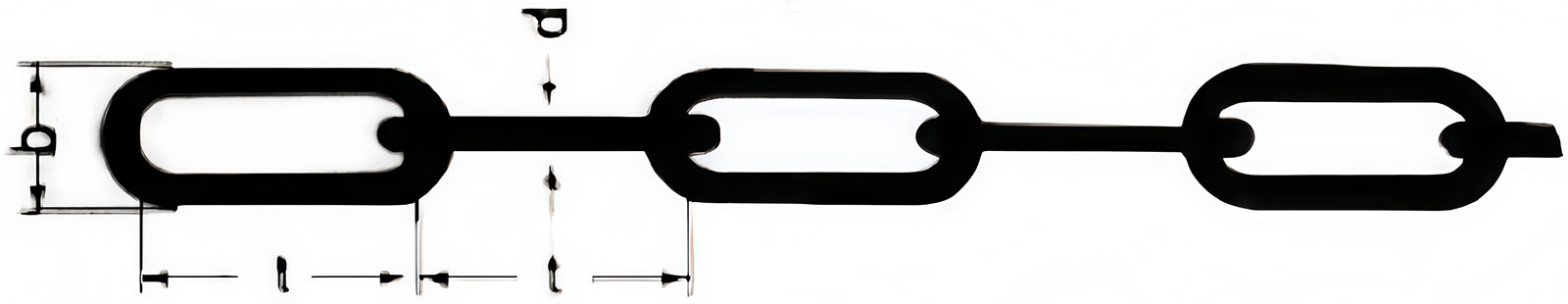

SIZE
d		 INSIDE LENGTH
t		 OUTSIDE WIDTH
t		 WORKING
LOAD		 TEST
LOAD		 BREAKING
LOAD		 WEIGHT
PER M
MM ±MM MM ±MM MM ±MM KG N N KG
2.0 22 1.0 8 0.4 25 800 1250 0.06
2.5 24 1.1 10 0.5 40 800 2000 0.10
3 26 1.2 12 0.6 55 1050 3200 0.15
3.5 28 1.3 14 0.7 80 1540 3850 0.20
4 32 1.5 16 0.8 100 2500 6500 0.27
4.5 34 1.7 18 0.9 128 3000 8000 0.35
5 0.5 35 1.8 20 1.0 160 4000 10000 0.43
5.5 38.5 1.8 22 1.1 195 4200 10500 0.52
6 42 2.0 24 1.2 200 5000 12000 0.63
7 49 2.5 28 1.4 300 7500 19000 0.86
8 52 2.5 32 1.6 400 10000 25000 1.10
8.5 56 2.8 34 1.7 460 10200 25500 1.25
9 59 3.0 36 1.8 530 10500 32000 1.41
10 65 3.2 40 2.0 630 16000 40000 1.75
11 72 3.4 44 2.0 790 15800 47500 2.11
12 78 3.6 48 2.3 940 18800 56500 2.55
13 82 4.0 52 2.5 1000 25000 63000 2.95
16 100 5.0 64 3.2 1600 40000 100000 4.45
18 113 5.2 70 3.2 2120 42300 127000 5.65
19 119 5.6 72 3.4 2370 47300 142000 6.25
20 120 6.0 75 3.8 2500 50000 160000 7.00
22 1 127 6.0 82 4.0 3170 63300 190000 8.55
25 140 6.6 85 4.2 4090 81700 245000 10.90
28 152 7.0 96 4.7 6000 120000 300000 13.9
32 171 7.8 108 5.2 8000 160000 400000 18.2
Product Description:

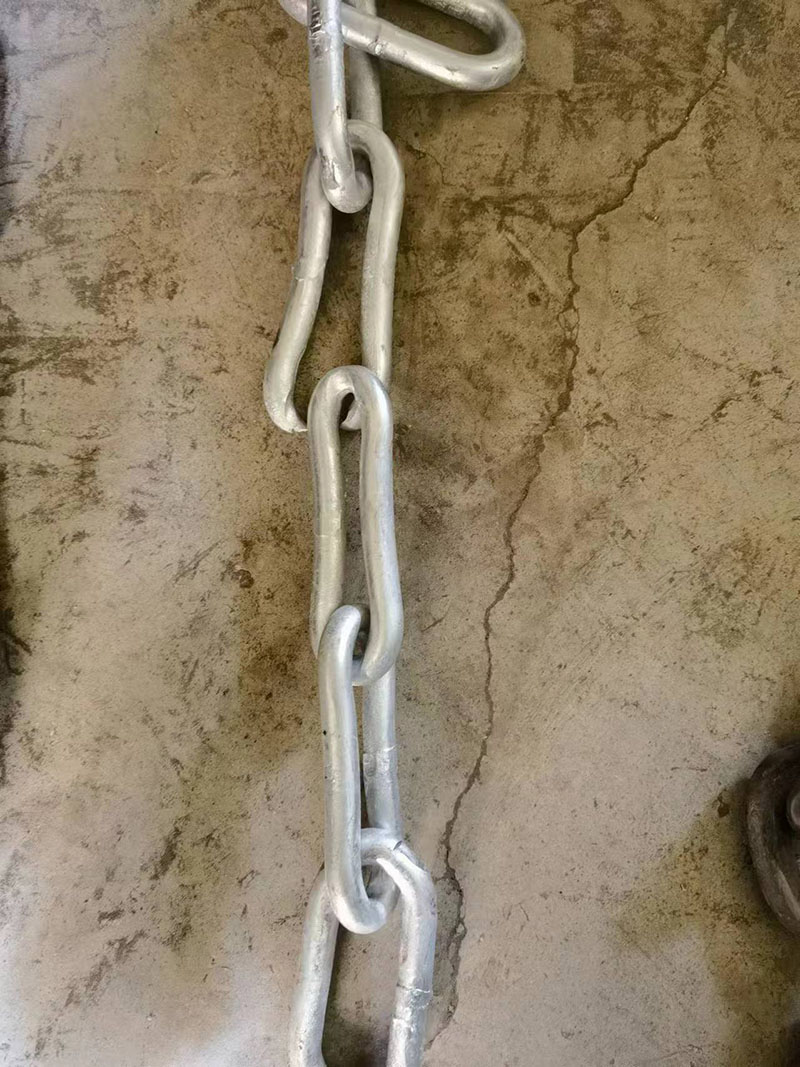

DIN763 long link steel chain is a standard European welded steel chain manufactured strictly in accordance with DIN 763 industrial specifications. Made of premium low carbon steel, it features an elongated oval link design, lightweight structure and excellent flexibility, widely used for general binding, securing, barrier fencing, cargo lashing, agricultural hauling and light-duty hoisting applications.

Multiple Surface Finishes for Selection

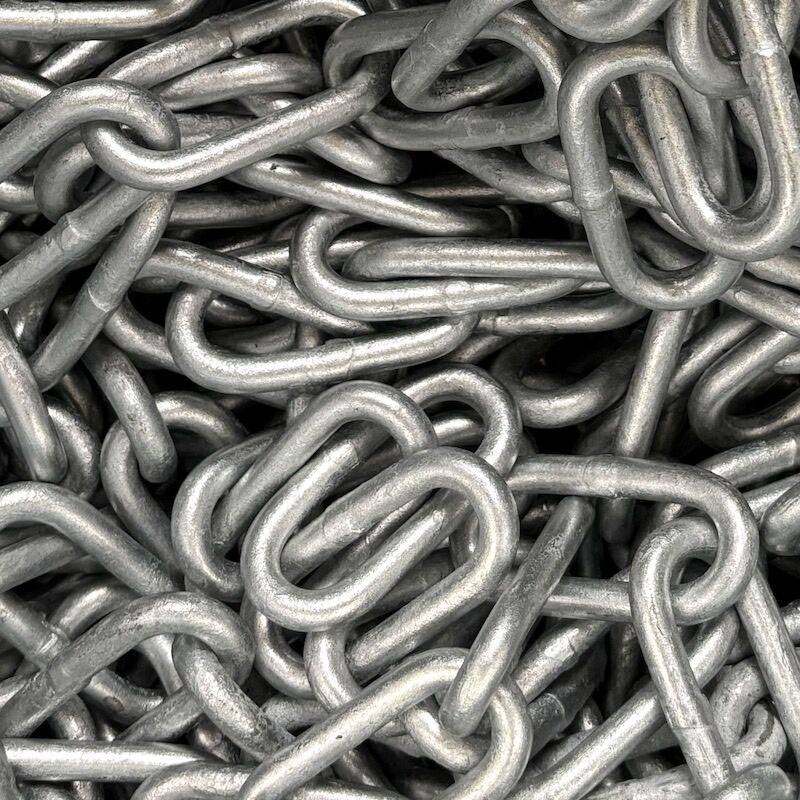

• Hot-dip galvanized: Outstanding anti-rust performance for outdoor, marine, farm and damp environments
• Electro-galvanized: Cost-effective anti-corrosion finish for indoor dry usage
• Self-colour (black raw steel): Economic choice for short-term temporary lashing
We supply full DIN763 standard sizes from 2mm to 32mm wire diameter, with customizable cutting lengths as clients’ requirements.

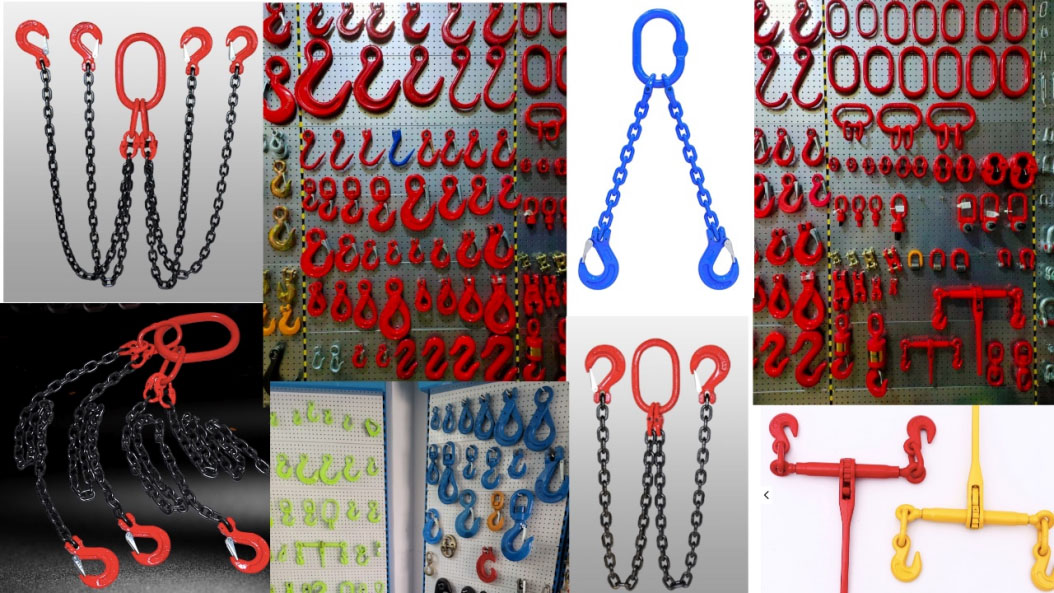

Brief Introduction of product range:

Mainly businesses
· Rigging hardware
· G80 lifting accessories
· Cargo lashing and lifting.

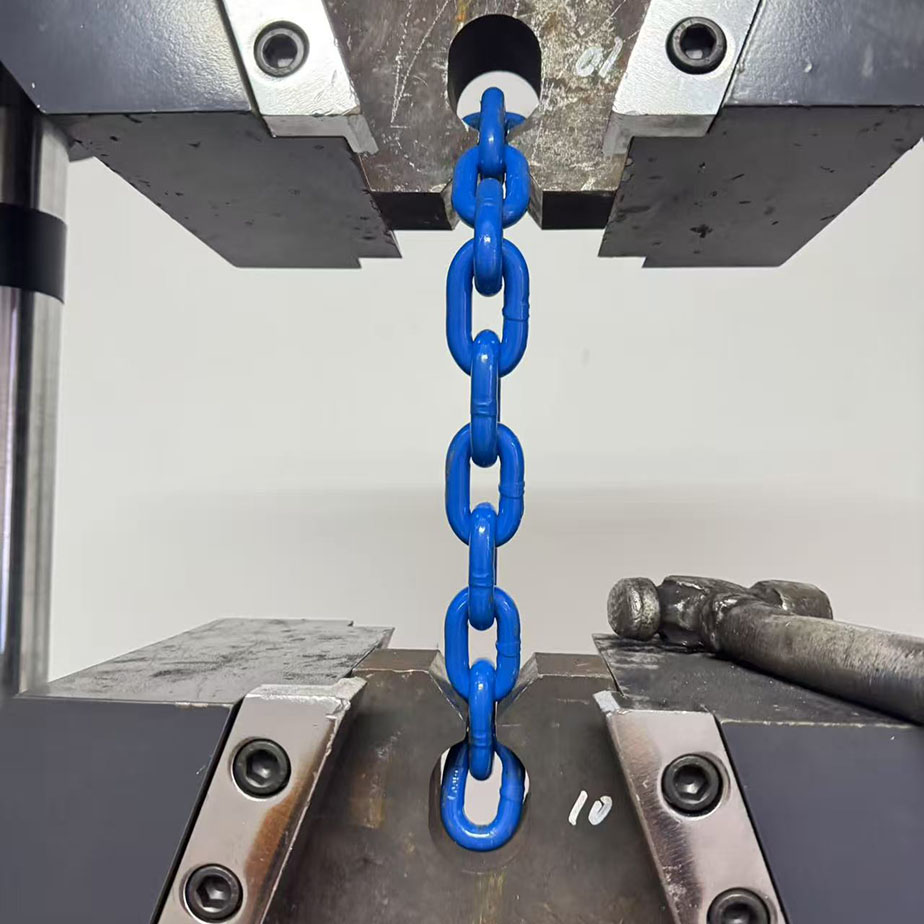

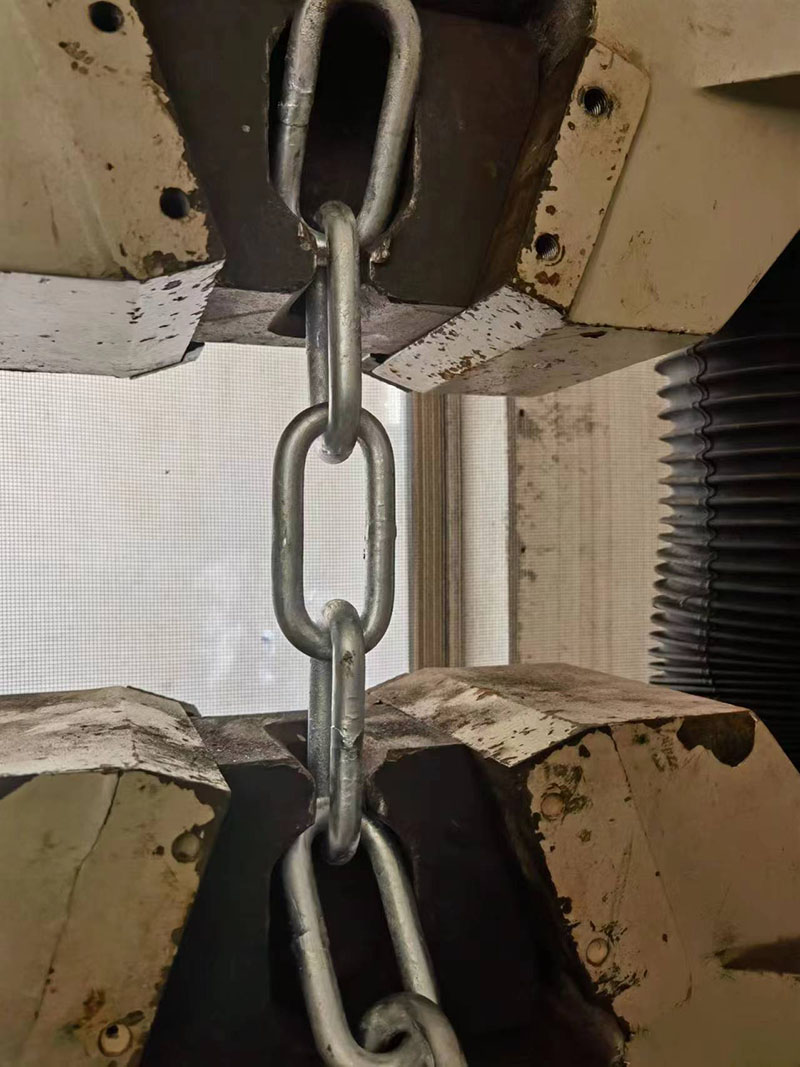

We have 1000T,630T, 400T forging machines, serveral sets of automatic machining devices, and follow ISO9001:2000. In the laboratory there are testing machines of 600T horizontal & 100T vertical testing machines, as well as other necessary devices like hardness machine, or chemical analysis, ets.
It's important to keep promise of good quality and guaranteed delivery. More importantly, we try to think standing by the customer's position.
Therefore, we've acquired good reputation from the customers, our company has been serving over 20 countries.
