DIN5686 Short / Long Link Chain

Product DIN5686 Short / Long Link Chain
Size 2mm - 32mm
Surface treatment Galvanized, self-color, etc.
Function metal link chains,rigging hardware,welded chains,lashing chains.

  • Product Description

Name: DIN5686 Short / Long Link Chain
Brand name: Sipower Rigging
Size: 2mm - 32mm
Surface treatment: Galvanized, self-color, etc.
Function: metal link chains,rigging hardware,welded chains,lashing chains.
Contact us: info@sipowerinternational.com

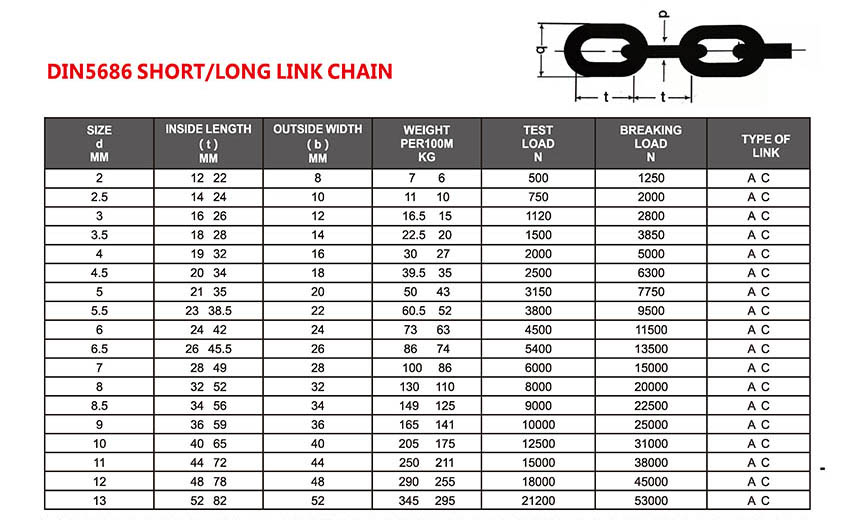

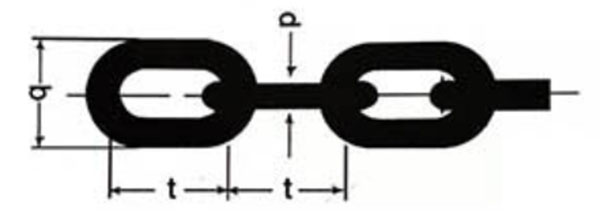

DIN5686 SHORT/LONG LINK CHAIN
SIZE d
MM		 INSIDE LENGTH (t)
MM		 OUTSIDE WIDTH (b)
MM		 WEIGHT PER100M
KG		 TEST LOAD
N		 BREAKING LOAD
N		 TYPE OF LINK
2 12 22 8 7 6 500 1250 A C
2.5 14 24 10 11 10 750 2000 A C
3 16 26 12 16.5 15 1120 2800 A C
3.5 18 28 14 22.5 20 1500 3850 A C
4 19 32 16 30 27 2000 5000 A C
4.5 20 34 18 39.5 35 2500 6300 A C
5 21 35 20 50 43 3150 7750 A C
5.5 23 38.5 22 60.5 52 3800 9500 A C
6 24 42 24 73 63 4500 11500 A C
6.5 26 45.5 26 86 74 5400 13500 A C
7 28 49 28 100 86 6000 15000 A C
8 32 52 32 130 110 8000 20000 A C
8.5 34 56 34 149 125 9000 22500 A C
9 36 59 36 165 141 10000 25000 A C
10 40 65 40 205 175 12500 31000 A C
11 44 72 44 250 211 15000 38000 A C
12 48 78 48 290 255 18000 45000 A C
13 52 82 52 345 295 21200 53000 A C
Brief Introduction of product range:

Dear Customers and Friends
Sipower is a raising brand for Marine Servi ces, and it's agreat honor to introduce you the updated version of ourproduct catalogue.
Marine products and services cover:
* Lashing equi pment
* Lifting equi pment and enginneering
* Rigging gear
* Physical Iashing/welding servi ce on board.
Besides, we could provide one-stop service wi th othermarine accessories, or some consumption for the varietyof vessel s, ship owners and Iogistics parti ci pants.
