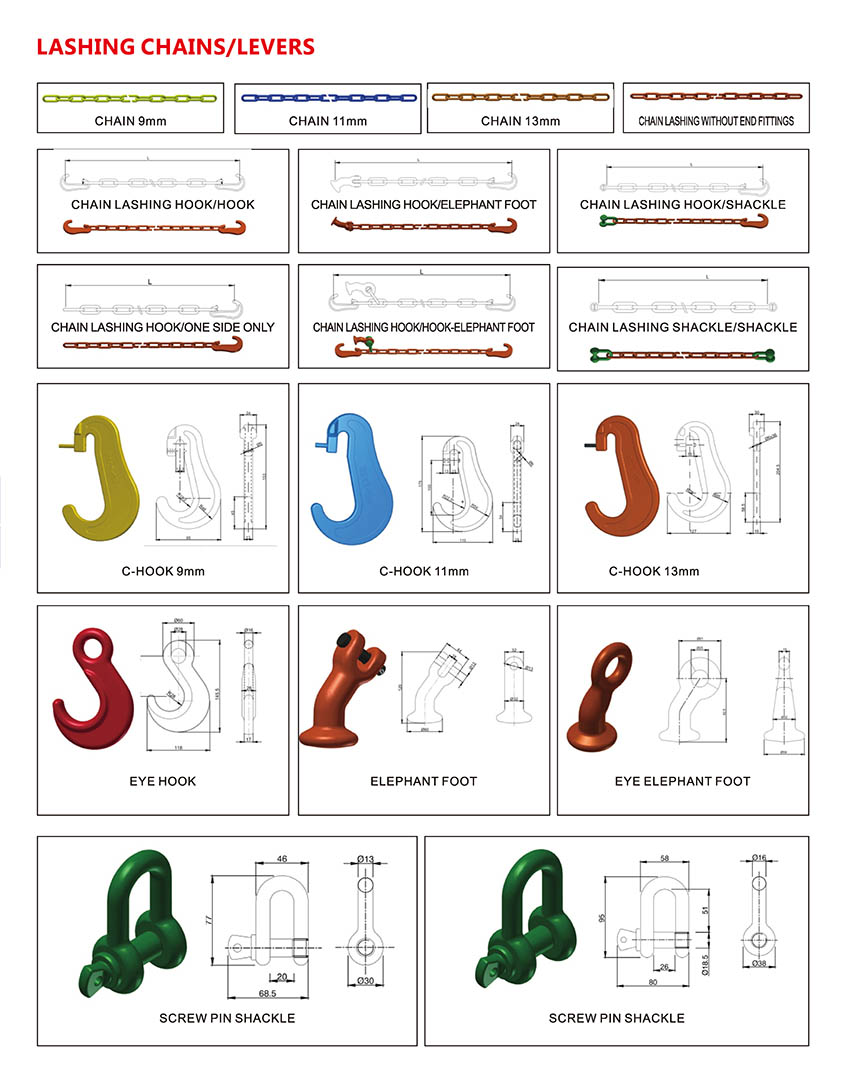

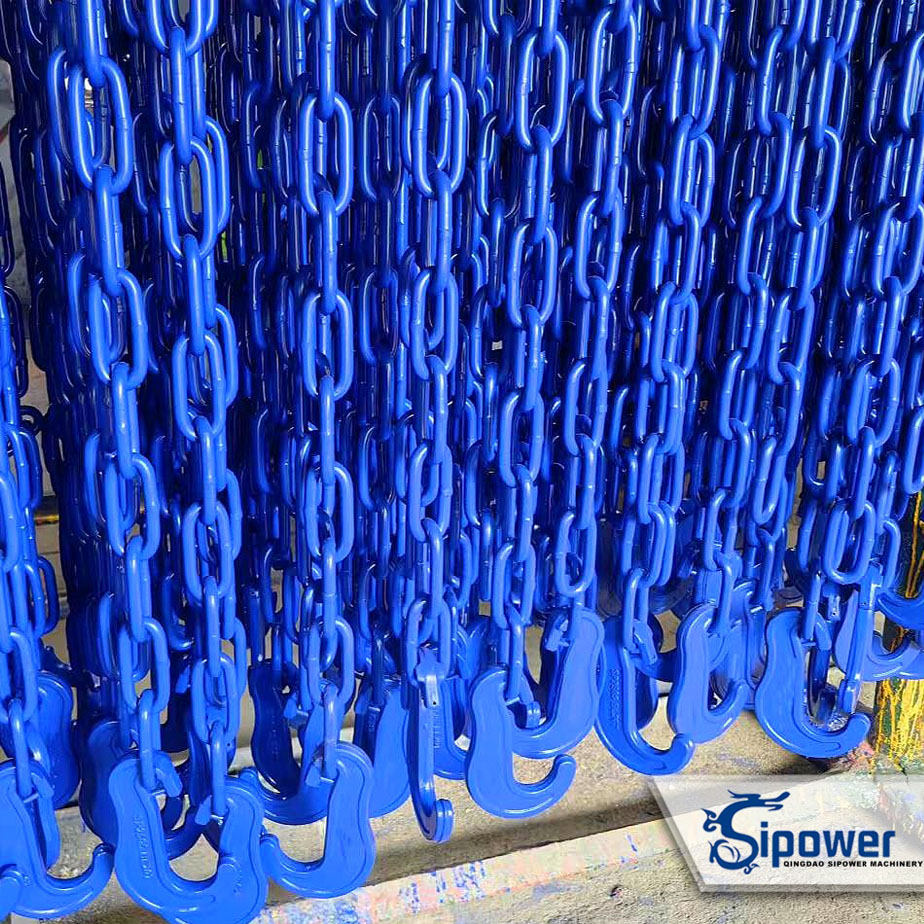

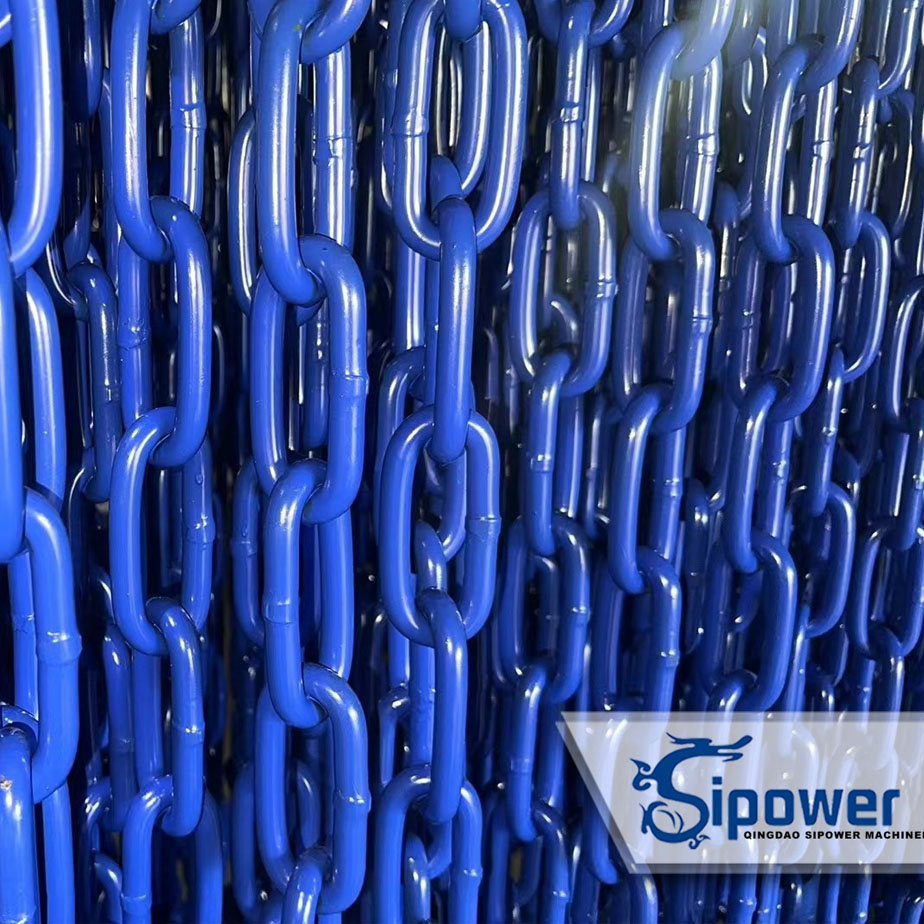

Lashing Chains
| Product | Lashing chain |
| Size | 9mm, 11mm, 13mm, 16mm, 19mm, 22mm |
| Finish | Painted, Galv., H.D.G. |
- Product Description

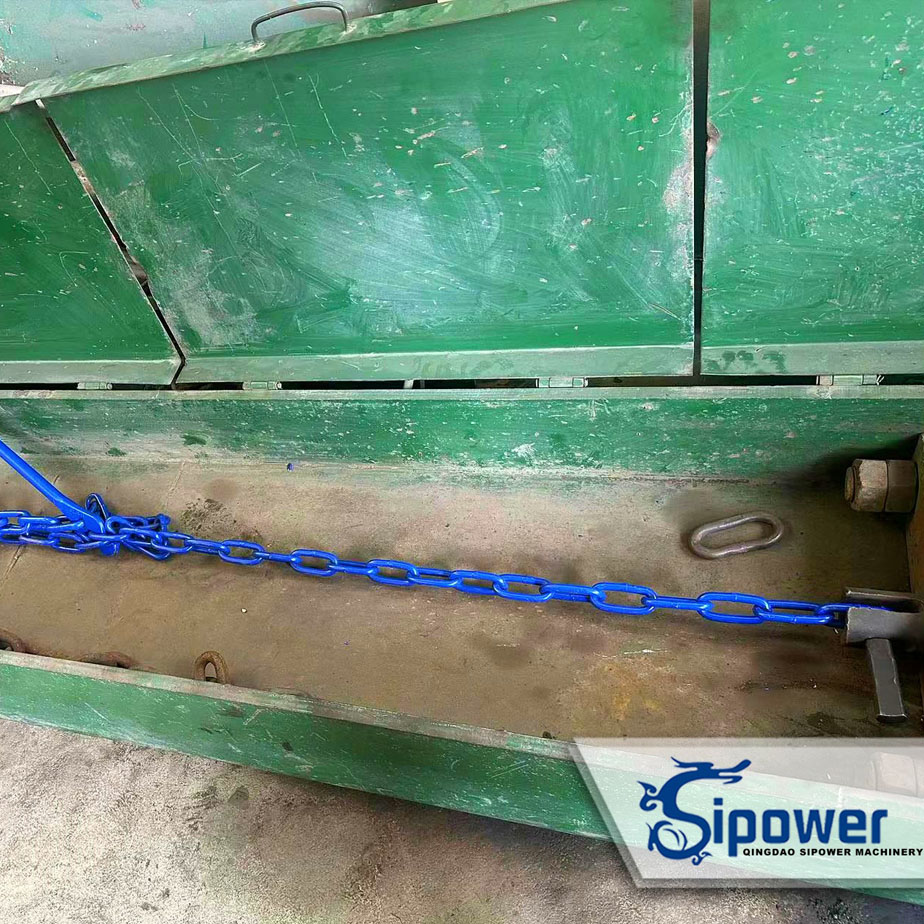

The appointed surveyor (DNV) was Witnessing testing for lashing chains and tensioners.
Inspector randomly selected the percentage sets and the proof load (125kN) testing was carried out on the selected chain and tensioner. They were subjected to the testing load with 125kN and holding time for 5minutes, with no deformation, cracks occurred from the visual appearance, the Max Elongation was less than 0.5%, the results were acceptable as per Test Outline requirement.

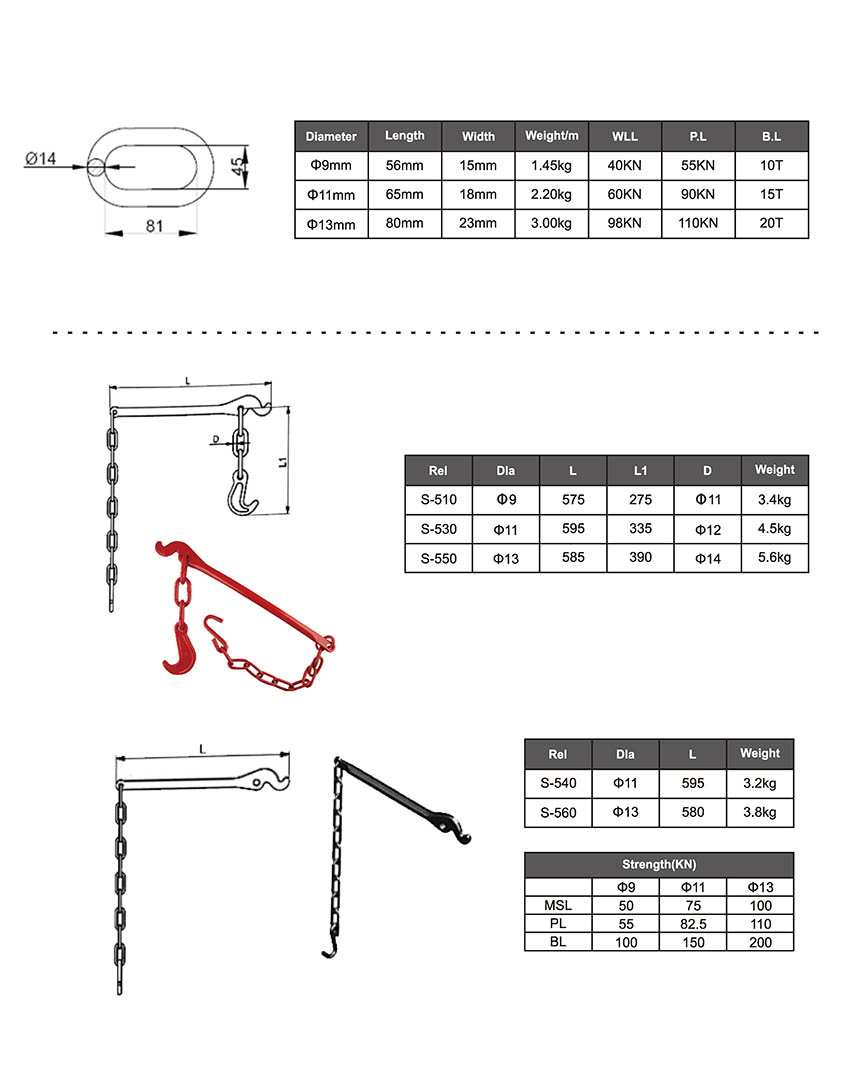

| Diameter | Length | Width | Weight/m | WLL | P.L | B.L |
| Φ9mm | 56mm | 15mm | 1.45kg | 40KN | 55KN | 10T |
| Φ11mm | 65mm | 18mm | 2.20kg | 60KN | 90KN | 15T |
| Φ13mm | 80mm | 23mm | 3.00kg | 98KN | 110KN | 20T |

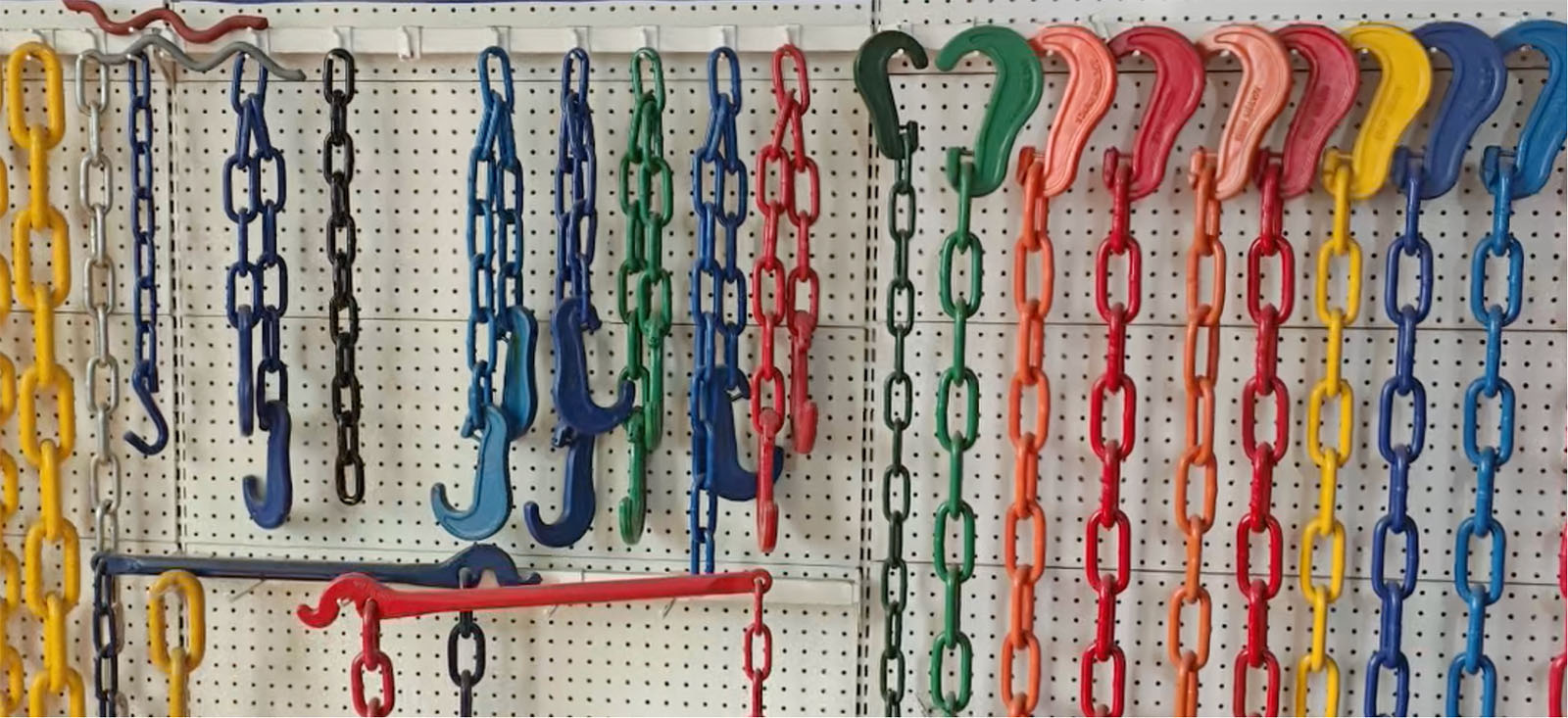

Brief Introduction of product range:
Dear Customers and Friends
Sipower is a raising brand for Marine Servi ces, and it's agreat honor to introduce you the updated version of ourproduct catalogue.
Marine products and services cover:
* Lashing equi pment
* Lifting equi pment and enginneering
*Rigging gear
* Physical Iashing/welding servi ce on board.
Besides, we could provide one-stop service wi th othermarine accessories, or some consumption for the varietyof vessel s, ship owners and Iogistics parti ci pants.
